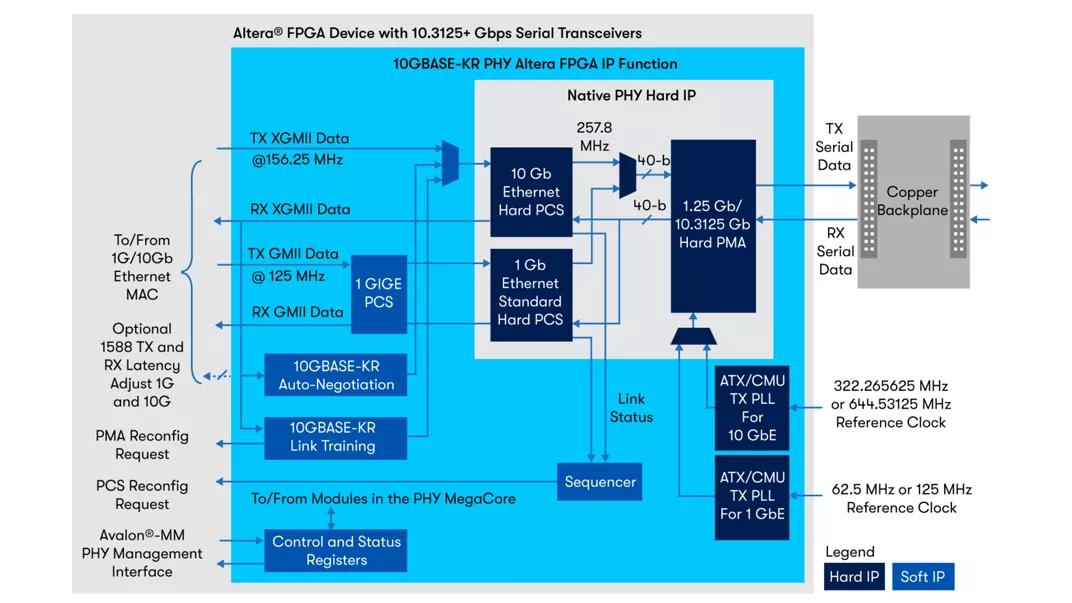

The Backplane Ethernet 10GBASE-KR PHY Altera FPGA Intellectual Property (IP) core is a transceiver PHY that allows you to instantiate both the hard standard physical coding sublayer (PCS), the higher performance hard 10G PCS, and the hard physical medium attachment (PMA) for a single Backplane Ethernet channel. It implements the functionality described in the IEEE 802.3ap-2007 standard. Because each instance of the 10GBASE-KR PHY IP core supports a single channel, you can create multichannel designs by instantiating more than one instance of the core.
Altera
Key Features
- Integrated 1000BASE-KX / 10GBASE-KR (1G/10Gb) Backplane Ethernet PCS and PMA
- Direct internal interface with Altera FPGA 1G/10GbE media access controller (MAC) for a complete single-chip solution
- 10GBASE-KR Auto-Negotiation for negotiating between 1000BASE-KX (1 Gbps Ethernet or 1GbE) and 10GBASE-KR (10 Gbps Ethernet or 10GbE) PHY types per clause 73 of the IEEE 802.3ap-2007 standard
- Forward error correction (FEC) to minimize retransmission in accordance to IEEE 802.3 and 802.3ba clause 74
- Internal programmable algorithm for the receiver adaptation process per IEEE 8023.ap clause 72.6.10.2.3 for ease of use
- Receiver-link fault status detection
- Local serial loop-back from transmitter to receiver at the serial transceiver for self test
- High-performance internal system interfaces: 1) GMII and single data rate (SDR) XGMII interfaces to 1G/10GbE MAC, 8 bits at 125 MHz and 72 bits at 156.25 MHz respectively for data transfer. 2)Avalon Memory-Mapped (PDF) (Avalon-MM) 32-bit interface for agent management
- Link Training to automatically configure the remote link partner transmitter physical media driver (PMD) for the lowest bit error rate (BER) per clause 72 of IEEE 802.3ap-2007 standard
- Flexible IP user controls for performance optimization in various system configurations and channels
Offering Brief
Offering Brief
| Device Family | Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | Yes |
| Evaluation License | Yes |
| Design Examples Available | Yes |
| Development Language | Encrypted Verilog |
Encrypted Verilog source code
Design Example
Simulation Models
IP Evaluation Mode
Documentation: IP User Guide, Design Example User Guide, IP Release Notes
Ordering Information
IP-10GBASEKRPHY (Stratix 10); IP-10GMRPHY (Arria 10)
from Mouser
IP-10GBASEKRPHY (Stratix 10); IP-10GMRPHY (Arria 10)
from Mouser
IP-10GBASEKRPHY (Stratix 10); IP-10GMRPHY (Arria 10)
from Digikey
