HBM2E (High-Bandwidth Memory) FPGA IP

Altera

HBM2E is a high-performance memory IP that offers a combination of high memory bandwidth, low power consumption, low latency, and small form factor for Agilex™ 7 FPGA M-Series devices. HBM2E memory is well-suited for various high-performance computing applications.

Contact Now

Key Features

  • Integrates two stacks of HBM2E DRAM with Agilex 7 FPGA M-Series with support for up to 32GB HBM2E in a single device
  • Maximizes performance across all transactions with 2 dedicated hard memory controllers per device for each HBM2E stack.
  • Up to 820 GB/s peak memory bandwidth - Up to 410GB/s memory bandwidth per HBM2E stack, 1.6x higher bandwidth vs prior generation, 10x more bandwidth vs DDR5, 7x more vs GDDR6
  • High-performance network-on-chip (NoC) to help achieve the highest bandwidth.
Expand Close

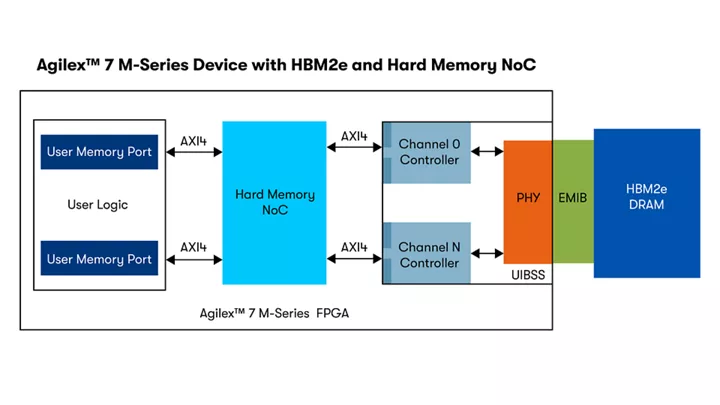

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 7 FPGA M-Series
Offering Status Production
Design Examples Available Yes
Development Language Encrypted Verilog

Encrypted Verilog source code

Design Example

Simulation Models

Documentation: IP User Guide, Design Example User Guide, IP Release Notes

Ordering Information

No ordering code required. License included with Quartus Prime
