Symmetric Cryptographic Accelerator Hard IP

Altera

The Symmetric Cryptographic Accelerator Hard IP is a 200 Gbps hard IP core implementing AES or SM4 encryption and decryption. Typically, the AES and SM4 standards are used to protect the confidentiality of network data in 5G, data center, medical, test and video, but can be used to secure any high-speed data in transit. In fact, this hard IP is called by Altera's MACsec IP solution as a hardened accelerator, but can be used in any application requiring these encryption standards. In addition, the XTS profile can be used in data storage applications.

Contact Now

Key Features

  • 200 Gbps bandwidth highly configurable core, 100 Gbps full-duplex
  • Hard IP core with low LE count, configurable soft IP wrapper
  • Supports AES-GCM Mode, with 128bit or 256bit key sizes and meets NIST 800-38D
  • Supports AES-XTS Mode, with 128bit or 256bit key sizes and meets NIST 800-38E
  • Supports SM4 Mode, with 128bit key size meeting OSCCA GB/T 32907-2016
  • Hard IP additionally supports AES-CTR and AES-BulkECB Modes
  • Default support for MACsec, IPsec, generic GCM, generic XTS, and SM4 profiles
  • Supports interleaved profiles
  • Optimized for MACsec and IPsec
  • Can be used for DTLS, TLS1.3, QUIC, secure computing, and storage device encryption
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series
Offering Status Production
Integrated Testbench Yes
Design Examples Available Yes
Development Language Verilog, VHDL

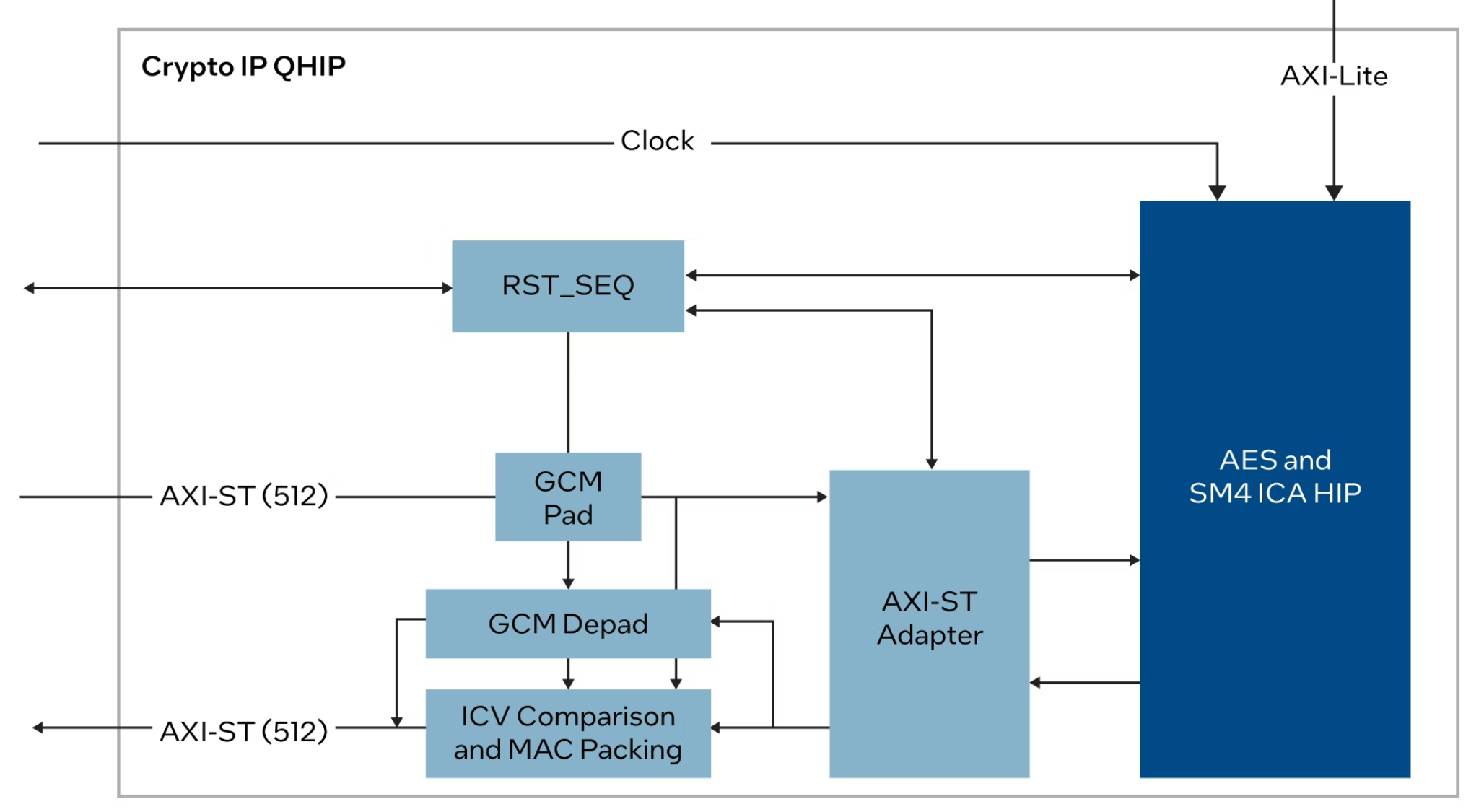

Symmetric Cryptographic Accelerator Hard IP with Soft IP wrapper

Symmetric Cryptographic FPGA Hard IP User Guide

Reference design and testbench available on request

Ordering Information

This hard IP is included in select Agilex 7 device ordering part numbers
