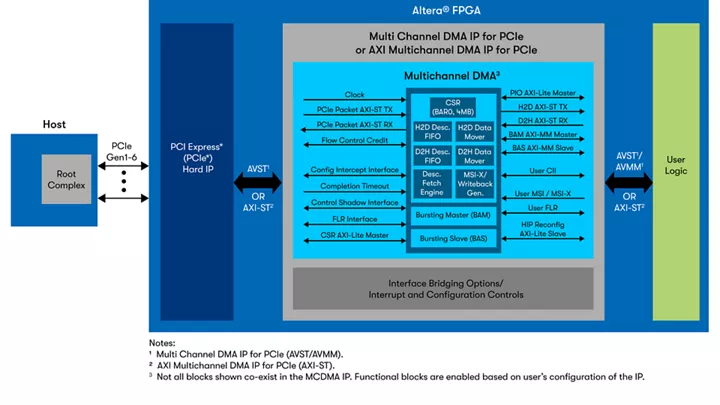

The Multichannel DMA IP for PCI Express provides high efficiency, speed, and configuration flexibility for HPC, data center, test, and medical applications. With support for up to 2048 channels and Linux-based PCIe drivers provided, this low latency, low resource utilization solution is essential in handling movements of large volumes of data to optimize system performance.
Altera
Key Features
- Flexible Application Interfaces – Supports AXI-Stream, Avalon® Memory-Mapped, and Avalon® Streaming interfaces for broad system integration.
- Optimized for Agilex FPGA Families – Delivers scalable DMA capabilities across Agilex 7 and Agilex 5 devices.
- Root Port or Endpoint Configurability – Operates in either PCIe Root Port or Endpoint mode for versatile deployment.
- High-Performance PCIe Connectivity – Supports up to PCIe 5.0 ×16 on Agilex 7 and up to PCIe 4.0 ×8 on Agilex 5 for maximum throughput.
- Multiple Data Bus Options – 256-, 512-, and 1024-bit bus widths for Agilex 7 and 128-, 256-bit bus widths for Agilex 5 for optimal bandwidth and design flexibility.
- Configurable Multichannel Architecture – Scales up to 2048 channels (Agilex 7) and up to 8 channels on Agilex 5, with Agilex 5 expansion to 256 channel support in future Quartus release.
- Virtualization and SR-IOV Support – Enables up to 8 PFs / 2048 VFs (Agilex 7) and 1 PF / 8 VFs (Agilex 5), with additional PFs/VFs support in future Quartus release up to 4 PFs / 256 VFs on Agilex 5.
- Advanced Transaction Management – 10-bit tag support, support for completion reordering and timeout handling, and head-of-line blocking prevention for reliable high-throughput performance.
- Integrated MSI-X Interrupts – Simplifies DMA operation signaling and improves host-side efficiency.
- Comprehensive Software Support – Ready-to-use Linux device drivers (Network Device, DPDK, and driver support for SR-IOV) for faster deployment.
Offering Brief
Offering Brief
| Device Family | Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | Yes |
| Evaluation License | Yes |
| Design Examples Available | Yes |
| Development Language | Encrypted Verilog |
Encrypted Verilog Source Code
Design Example(s)
Simulation Models
IP Evaluation Mode
Documentation: IP User Guides, Design Example User Guides, IP Release Notes
Ordering Information
No license required
from Delivered with Quartus
