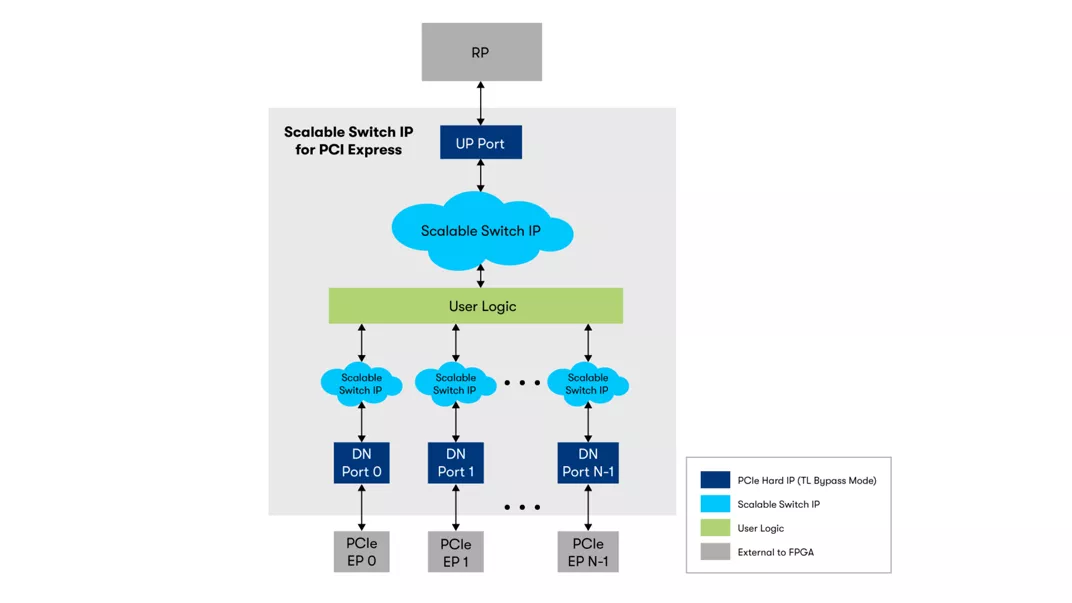

The Scalable Switch IP delivers high performance, scalability, and flexibility for a variety of systems. Supporting PCIe 3.0, 4.0, and 5.0 with up to x16 lane widths, this switch implements one fully configurable upstream port and connectivity for up to 96 downstream ports. Covering a host of features ranging from virtualization to standard-based routing, this Switch IP is available on Agilex 7 and Stratix 10 DX devices with clocking supporting up to 500 MHz.
Altera
Key Features
- Broad PCIe Generation Support: Configurations - PCIe 3.0, 4.0, 5.0 x4/x8/x16 lane configurations
- High Port Scalability: Single upstream port with support for up to 96 downstream embedded endpoints or 32 discrete endpoints
- Rich Virtualization Capability: Up to 96 PFs and 2048 VFs
- Advanced Interrupt Handling: Full support for MSI/MSI-X interrupts for efficient data movement
- Robust Error and Reset Management
- Standards-Based Routing and Access / Address Services
- Hot-Plug Support
- VirtIO Capabilities: Support for virtualization and cloud-native workloads
- High Throughput Architecture: User packet interface with separate header, data, and prefix
- Performance- Tuned Clocking: Core clocking frequency up to 500 MHz for Agilex 7 and 400 MHz for Stratix 10 DX
- Support for Agilex 7 FPGAs and SoCs and P-Tile based devices: Stratix 10 DX FPGAs and SoCs
Offering Brief
Offering Brief
| Device Family | Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Stratix® 10 DX FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | Yes |
| Evaluation License | Yes |
| Design Examples Available | Yes |
| Development Language | Encrypted Verilog |
Encrypted Verilog Source Code
Design Example(s)
Simulation Models
IP Evaluation Mode
Documentation: IP User Guide, Design Example User Guide, IP Release Notes - contact your local sales representative for more information regarding the full versions of the Scalable Switch IP User Guide and Design Example User Guide
Ordering Information
IP-PCIESCSWTCH
from Digikey
IP-PCIESCSWTCH
from Mouser
