Agilex™ 7 FPGAs and SoC FPGAs

The highest-performance FPGAs deliver industry-leading fabric and IO speeds, ideal for most bandwidth, compute, and memory-intensive applications.

Agilex 7 devices deliver ~2X better fabric performance per watt compared to competing 7 nm FPGAs. They also offer integrated Arm-based processors, transceivers up to 116Gbps, PCI Express (PCIe) 5.0, and Compute Express Link (CXL), and 32GB HBM2e. These features make them ideal for a wide range of applications in many markets including data center, networking, broadcast, defense, and industrial.

Read the Agilex 7 FPGA product brief

DAM Image

Agilex 7 FPGAs and SoC FPGAs F-Series

F-Series

  • For wide range of applications that require optimal balance of power and performance.

  • 573k - 2.7M LEs
  • Up to 58 G transceivers
  • PCIe 4.0 x16
  • DDR4 interface
  • Quad-core Arm Cortex-A53 SoC option
DAM Image

Agilex 7 FPGAs and SoC FPGAs I-Series

I-Series

  • For high-performance processor interface and bandwidth-intensive applications.

  • 1.9M - 4M LEs
  • Up to 116 G transceivers
  • PCIe 5.0 x16
  • DDR4 interface
  • Quad-core Arm Cortex-A53 SoC option
  • Compute Express Link (CXL) to Intel® Xeon® Scalable processor

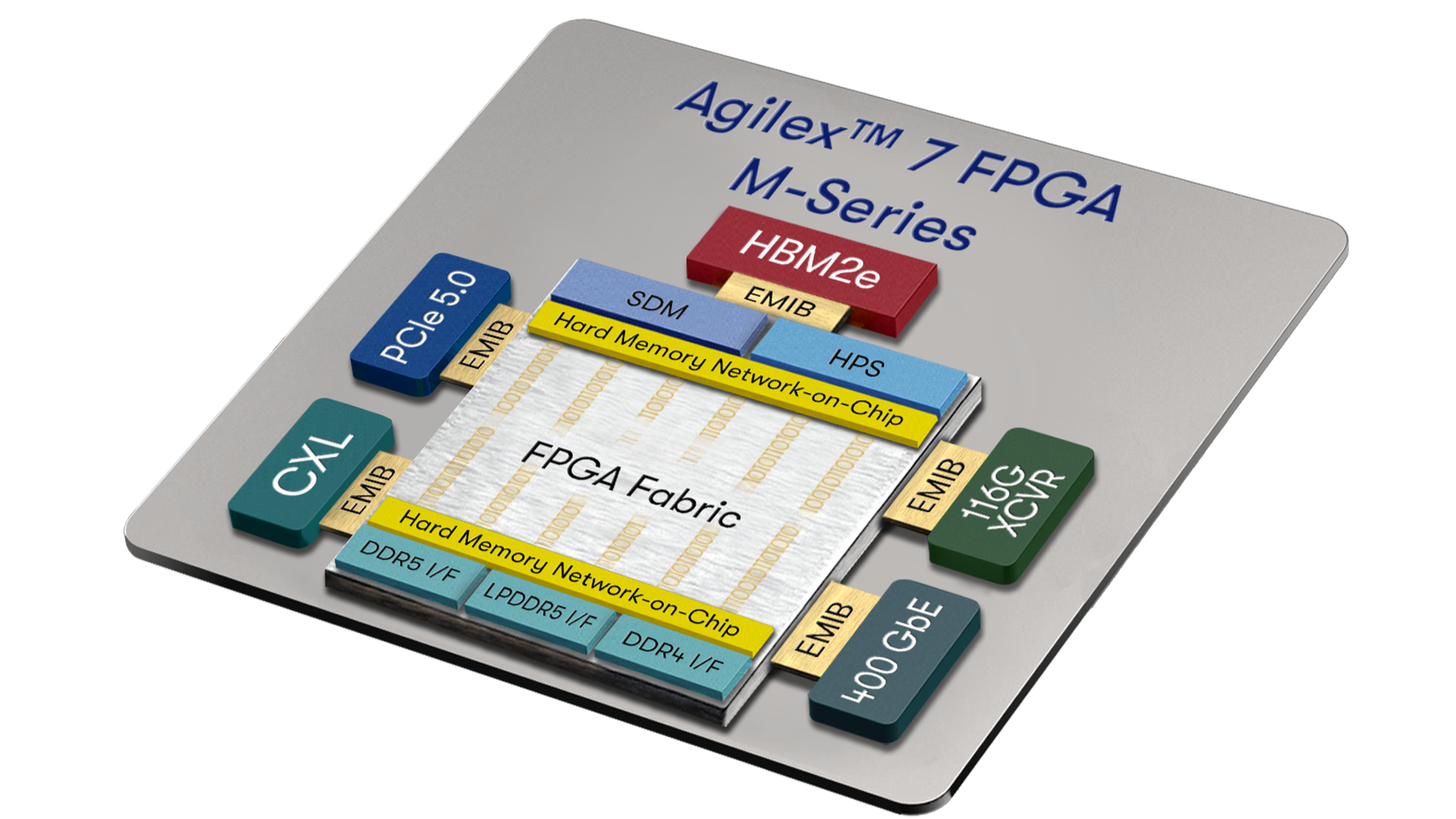

M-Series Chiplet Image

Agilex 7 FPGAs and SoC FPGAs M-Series

M-Series

  • For compute-intensive and high-memory-bandwidth applications.

  • 3.2M - 3.8M LEs
  • Up to 116 G transceivers
  • PCIe 5.0 x16
  • DDR4, DDR5 and LPDDR5 interfaces
  • Quad-core Arm Cortex-A53 SoC option
  • Compute Express Link (CXL) to Intel® Xeon® Scalable processor
  • Non-HBM and HBM (16GB, 32GB) support

Agilex 7 FPGA Overview Video

Watch this video to learn more about the key features and capabilities of the Agilex 7 FPGA portfolio.

Demo Videos

Powering 400GE Performance with Agilex 7 FPGAs

This video highlights how Agilex 7 FPGAs enable high-performance 400GE data rate designs, delivering the bandwidth, flexibility, and efficiency required for next-generation networking and data center applications.

Accelerating 200G Connectivity for Modern Networks

This video showcases how Agilex 7 FPGAs enable efficient, high-performance 200G connectivity, delivering the speed, scalability, and power efficiency needed for today’s networking and data center applications.

Demonstration of Interop with 400G DR4 Linear Pluggable Optics

For this interop demo video, Altera implemented a 4x 100G design transmitting 400GbE traffic with 100G-DR4 LPO modules.

64Gbps PCIe 6.0 Performance on Agilex 7 F-Tile FGT Demo

Watch the demo to see the F-Tile transceivers' data rates: they can achieve up to 32Gbps NRZ and up to 64Gbps PAM4.
