SATA AHCI IP core

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

DesignGateway Co., Ltd.

Select

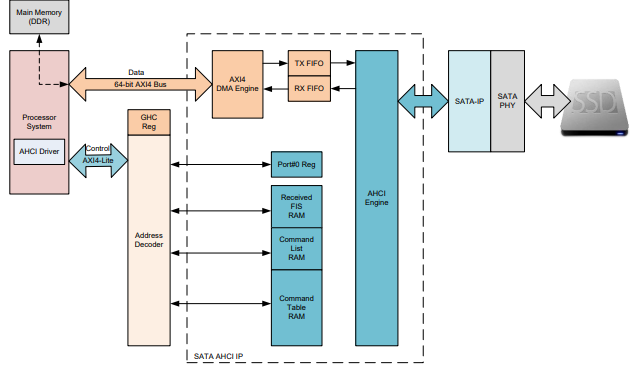

SATA AHCI IP core, operating with the SATA IP core, enables a processor-based system to access SATA devices with full features and high-speed performance. When combined with an ARM processor running Linux OS, it supports the development of complex systems such as embedded storage, RAID controllers, and high-speed, large-capacity data acquisition systems.

View Partner Website

Partner Product Page

Contact Now

Contact DesignGateway Co., Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

AHCI Support for Linux Boot: Enables booting Linux from SATA devices on SoC platforms like Arria® 10 SX, facilitating seamless integration with operating systems.
High-Speed Performance: Achieves high-speed data transfer rates, ensuring efficient data handling for applications requiring substantial throughput.
Embedded CPU Compatibility: Compatible with embedded CPUs, such as ARM processors, allowing for versatile system integration in various embedded applications.
Ideal for Data Acquisition Systems: Well-suited for high-speed and large-capacity data acquisition systems, providing reliable storage solutions for demanding applications.
RAID Application Support: Facilitates the implementation of RAID configurations, enhancing data redundancy and performance for storage systems.

Offering Brief

Device Family	Arria® V ST SoC FPGA, Arria® 10 SX SoC FPGA, Cyclone® V SX SoC FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	No
Design Examples Available	Yes
Demo	Yes
Compliance	No
Latest Quartus Version Supported	23.1.0
Development Language	Encrypted VHDL
