SATA Host Controller

Overview Key Features Offering Brief What's Included Ordering Information Markets

iWave Global

Select

The SATA Host Controller IP Core from iWave offers a flexible and high-performance solution for interfacing FPGA-based systems with SATA devices such as SSDs and HDDs. Compliant with the AHCI (Advanced Host Controller Interface) and SATA 3.1 specification, this IP core facilitates seamless integration of storage solutions in applications that require high-speed, reliable data transfer. It supports up to 6 Gbps SATA interfaces and offers native command queuing (NCQ) and hot plug support.

Designed for Altera FPGAs, the core leverages AXI or Avalon interfaces for host-side communication, providing developers with flexibility and easy integration into a wide range of systems. The IP core includes software drivers and APIs that enable developers to interact with SATA devices directly from Linux or Windows operating environments.

This IP is ideal for data logging, high-resolution video capture, industrial storage applications, and embedded systems requir...

This IP is ideal for data logging, high-resolution video capture, industrial storage applications, and embedded systems requiring high throughput and low-latency disk access. iWave also provides reference designs and technical support to help reduce time to market and simplify system-level design.

View Partner Website

Partner Product Page

Contact Now

Contact iWave Global

LeadSource

ASAP Account ID

Record Type Name

Key Features

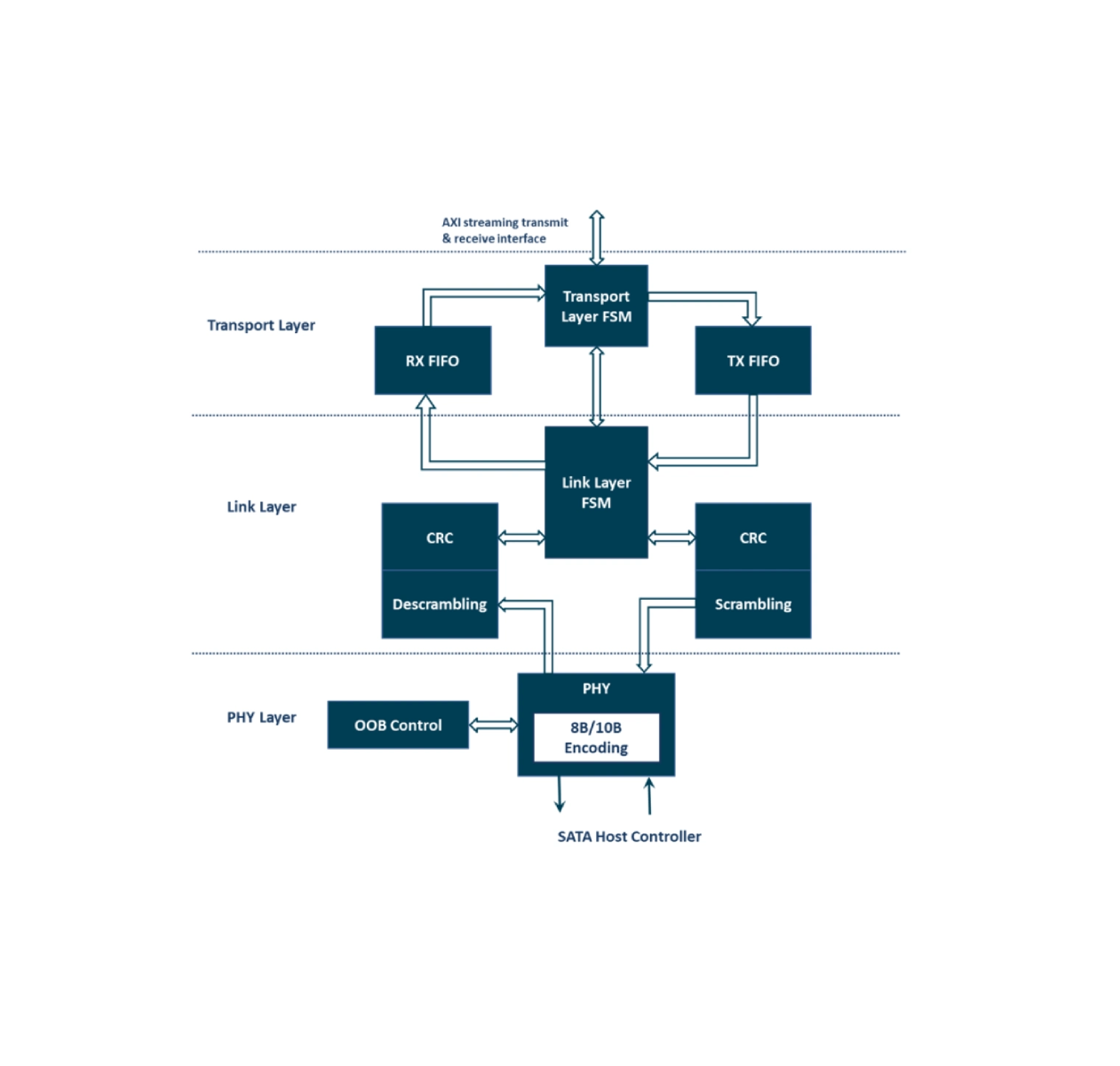

Phy layer consists of Transceiver available in the FPGA which convert the parallel data to serial
Phy layer supports clock recovery from serial data, 8B/10B encoding and decoding, Byte ordering and word alignment and OOB signaling
Link layer supports the frame transmission and reception
Link layer supports frame formation by adding the envelope and frame decomposition by removing envelope from received data
Link layer supports CRC generation and calculation as well as scrambling and descrambling

Offering Brief

Device Family	Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Stratix® 10 SX SoC FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	No
Design Examples Available	No
Demo	No
Compliance	No
Hardware Platforms Supported	Arria® 10 SX SoC Development Kit
Latest Quartus Version Supported	24.2.0
Development Language	Verilog

IP Core
