LDPC for 5G NR (Silicon Proven IP for Altera Devices)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Mobiveil Inc.

Select

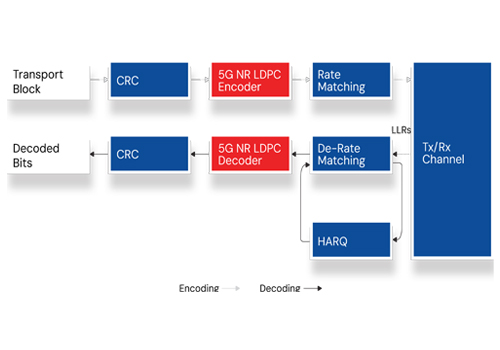

Configurable 5G NR LDPC encoder/decoder IP compliant with 3GPP TS 38.212 (Rel-17), supporting Base Graphs 1 & 2, wide lifting sizes (2–384), early-termination, and runtime-configurable code length/rate for high-throughput, low-latency 5G designs. Technology-independent, system-validated LDPC core for 5G NR PDSCH/PUSCH that implements min-sum decoding with programmable internal/LLR widths, HARQ combining, per-block selectable CB length / code rate / base graph / max iterations, and early exit via concurrent parity checks. Deliverables include synthesizable parameterized Verilog, synthesis scripts, UVM testbench & regression, test-vector software, C++ bit-accurate model, and documentation. Throughput scales with iterations and parallelism (graphs provided at 400 MHz clk).

View Partner Website

Partner Product Page

Contact Now

Contact Mobiveil Inc.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Full support of 5G NR specification (38.212 v17)
Support for all Base Graphs 1/2 codes
Additional Measurement Outputs (number of iterations, other) beyond the scope of 5G physical channel measurement specified in 38.215
Per-block modifiable code block length, code rate, base graph, and maximum number of iterations
Supports for lifting sizes from 2 to 384
Early termination based on syndrome check on each iteration and layer
Supports FPGA, ASIC Platforms
Testbench option

Offering Brief

Device Family	Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	No
Demo	No
Compliance	No
Latest Quartus Version Supported	24.3.1
Development Language	Encrypted Verilog, Verilog
