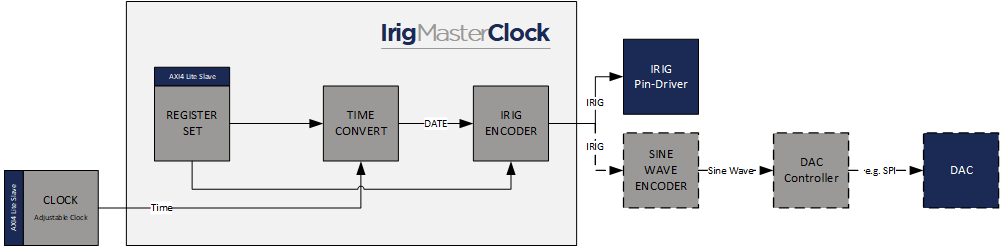

NetTimeLogic’s IRIG Master Clock is a full hardware (FPGA) only implementation of a synchronization core able to synchronize other nodes via IRIG-B007/IRIG-G006. The whole encoding, conversion, algorithms and calculations are implemented in the core, no CPU is required. This allows running IRIG synchronization completely independent and standalone from the user application.

View Partner Website

Partner Product Page

Contact Now

Contact NetTimeLogic GmbH

LeadSource

ASAP Account ID

Record Type Name

Key Features

IRIG-B Master Clock
Supports IRIG-B007 and IRIG-G006 format (compatible with B004, B005, B006 and B007 IRIG-B Slaves)
Optional supports all IRIG-B000 - B007 codes, changeable at runtime
Optional supports Control Bits for IRIG-B000/B001/B004/B005
PWM, DCLS encoding
Optional AC encoding and amplitude modulation for IRIG-B120 - B127 and IRIG-G146 (requires an external DAC)
Output delay compensation
Additional seconds correction to convert between TAI and UTC time (or any other time base)
AXI4 Light register set or static configuration

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Cyclone® IV E FPGA, Stratix® 10 AX SoC FPGA
Offering Status	Production
Demo	No
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Compliance	No
Latest Quartus Version Supported	25.1.0
OS Support	Not required
Development Language	VHDL
