ARINC 818

Qbit Labs Incorporation

Member

The ARINC 818 IP Core is a robust, high-performance digital video transmission solution tailored for real-time display and sensor video systems in avionics and aerospace platforms.

Based on the ARINC 818 standard (Avionics Digital Video Bus), this IP core enables high-speed, low-latency, and deterministic transmission of uncompressed and compressed video over fiber optics or copper interfaces. ARINC 818 is the de-facto standard for mission-critical video transport in cockpit displays, mission processors, synthetic vision systems, EO/IR sensors, head-up displays (HUDs), and radar processing units.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Compliant with ARINC 818-2 / 818-3 Standards: Fully adheres to the latest versions of ARINC 818 protocol specifications, ensuring compatibility and long-term support.
  • Configurable Video Parameters: Supports a wide range of resolutions (e.g., 720p, 1080p, 4K) and frame rates (24–120 fps) with deep color (8/10/12-bit).
  • High-Speed Serial Transmission: Up to 10 Gbps over copper or optical fiber using standard SERDES interfaces; scalable to 28 Gbps for ARINC 818-3.
  • Multi-Channel Support: Enables multiple video streams or simultaneous sensor feeds using multiple virtual links (VLs).
  • AXI4/AXIS Compatible Interfaces: Easy integration into FPGA or ASIC-based systems with standard interconnect protocols.
Expand Close

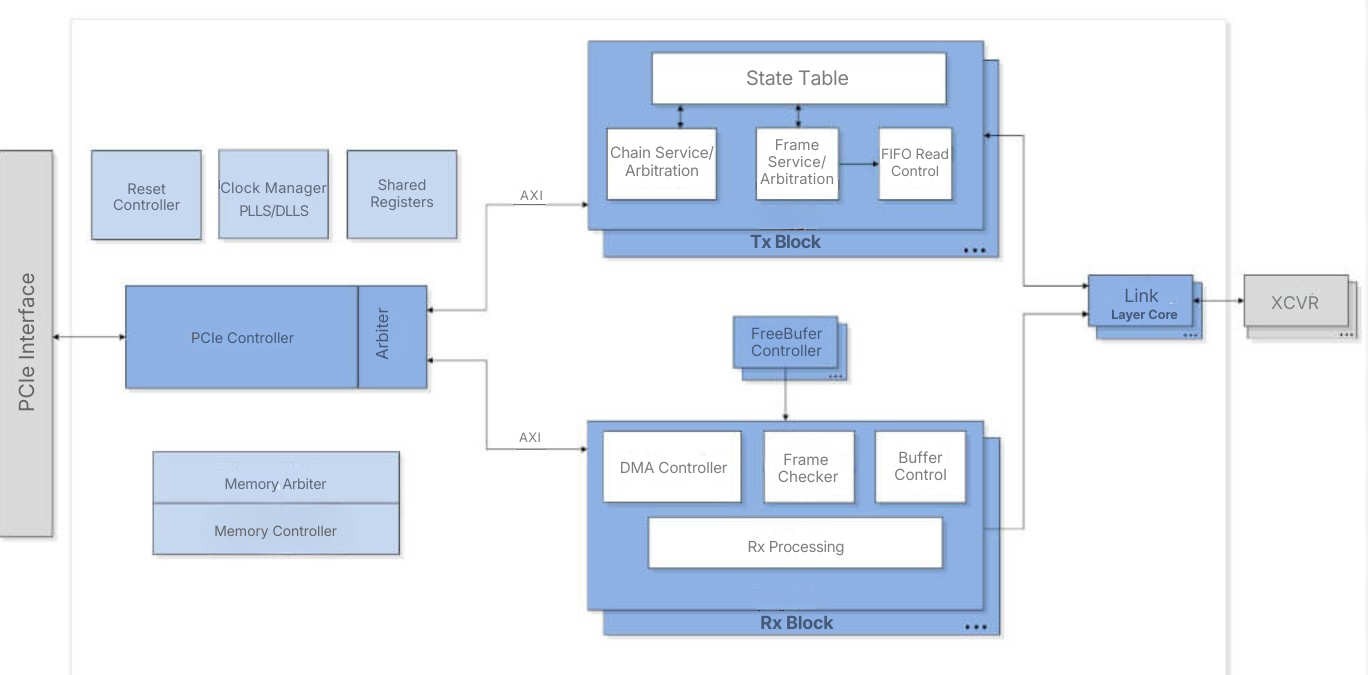

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex™ 7 FPGA F-Series, Agilex™ 7 FPGA I-Series, Agilex™ 7 FPGA M-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST FPGA, Arria® V SX FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SX FPGA, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status Production
Integrated Testbench No
Evaluation License Yes
Design Examples Available No
Demo No
Compliance No
Latest Quartus Version Supported 24.3.1
Development Language Encrypted Verilog, Verilog

Synthesizable RTL source code

Directed/random/constrained-random sequences covering LTSSM, configuration, link training, FLIT mode, error injection (FEC/CRC scenarios), power states, reset

Embedded firmware / low-level SW

Software integration guide

Full design documentation

Ordering Information

QBL-IP-ARINC-818

from Direct

$0.00

Order Now
