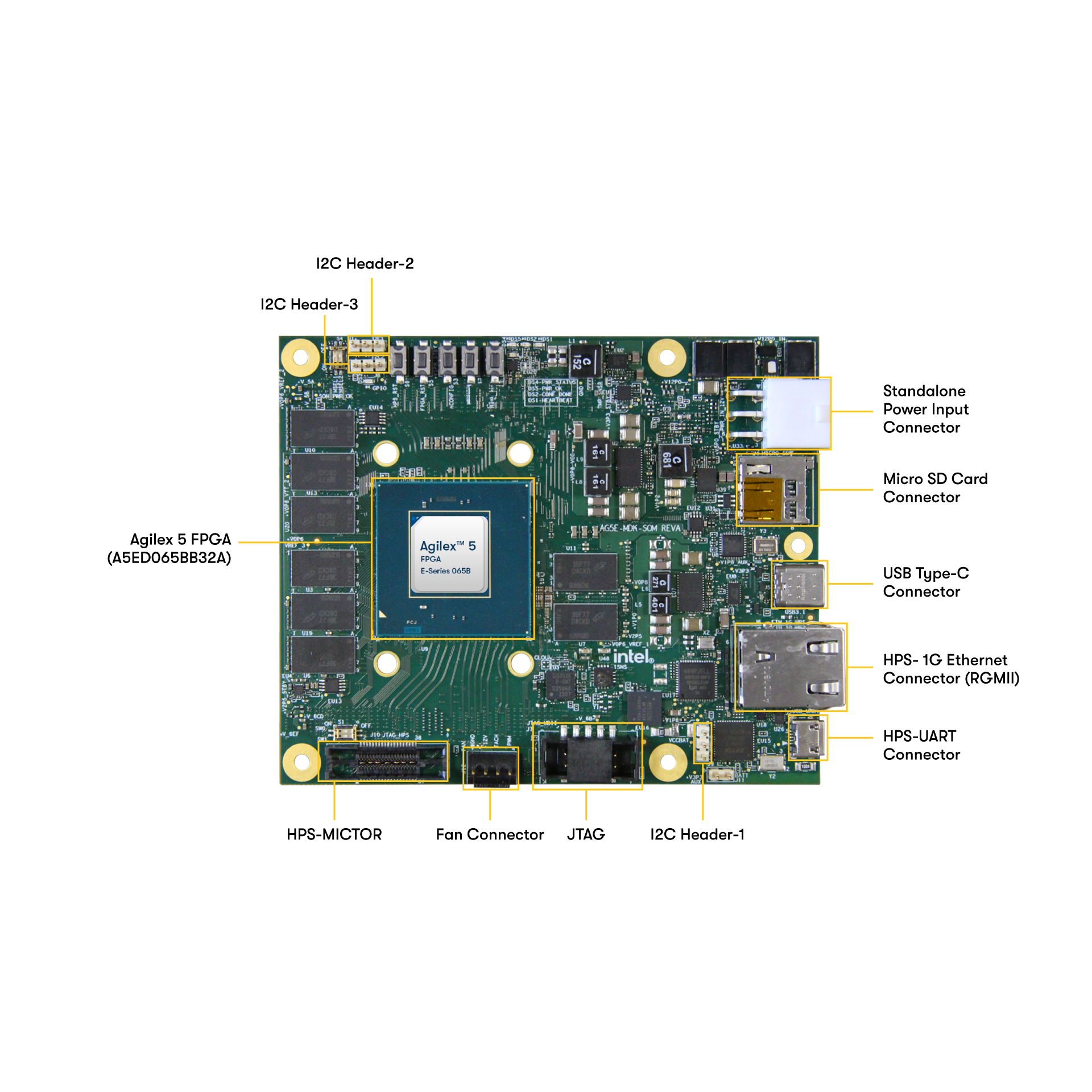

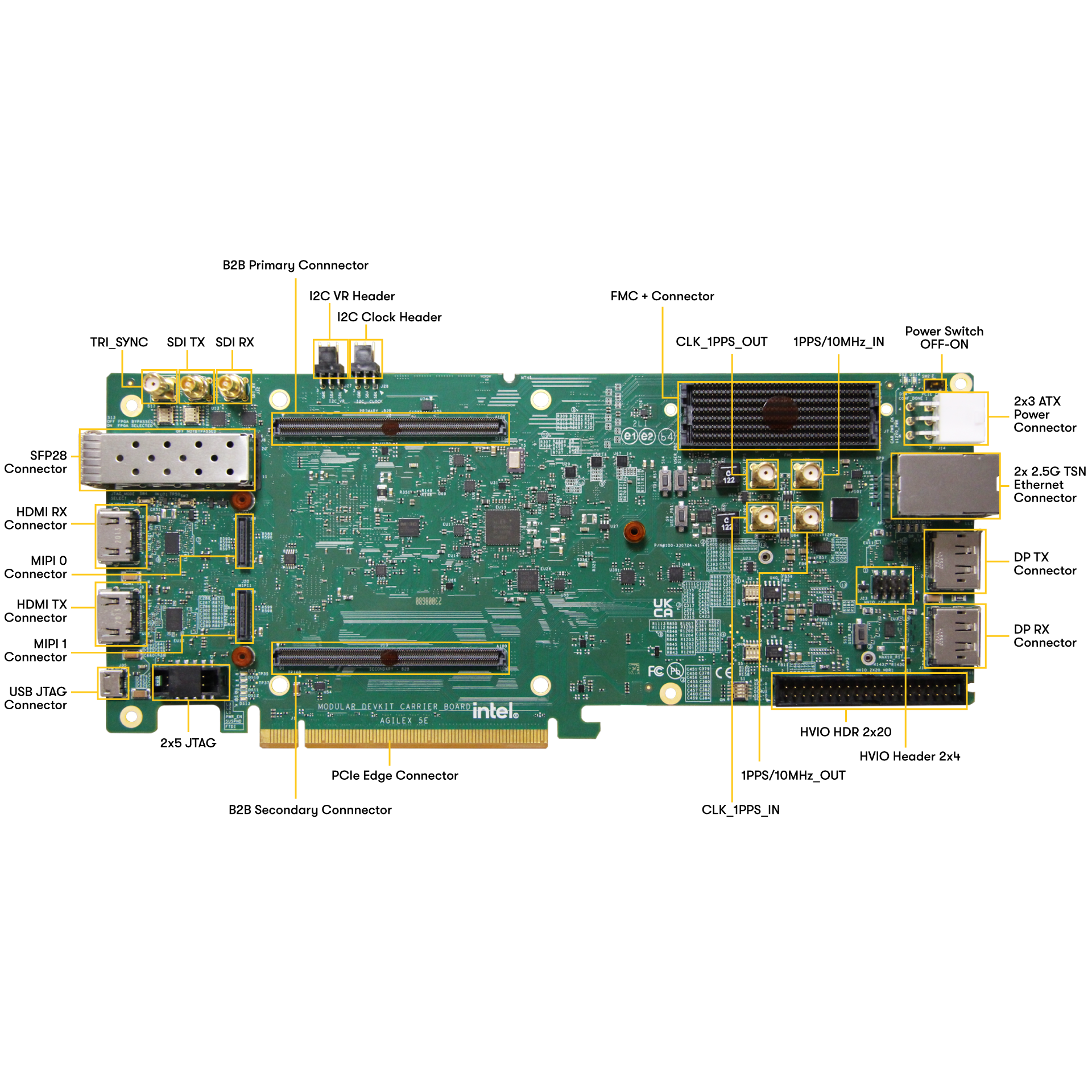

The Agilex 5 FPGA and SoC E-Series 065B Modular Development Kit is a comprehensive platform for evaluating and prototyping high-performance FPGA and SoC designs. It combines a modular board with a carrier board to deliver a rich set of connectivity options, including PCIe Gen4, SFP28, HDMI 2.1, DisplayPort 2.0, and dual 2.5G TSN Ethernet. The kit supports three DDR4 memory banks—two for FPGA fabric and one for the HPS—enabling high-bandwidth data processing and embedded system development.

Designed for flexibility, the kit includes FMC+ and MIPI connectors for expansion into vision, AI, and industrial applications. The integrated Board Test System (BTS) GUI simplifies validation of clocks, power, memory, and transceivers. With built-in USB-JTAG, programmable clocks, and robust power sequencing via MAX 10, the kit is ideal for developers building advanced systems in networking, edge AI, and embedded computing.

Contact Now

Contact Altera

LeadSource

ASAP Account ID

Record Type Name

Key Features

Features the Agilex 5 FPGA and SoC E-Series (A5ED065BB32AE6SR0)

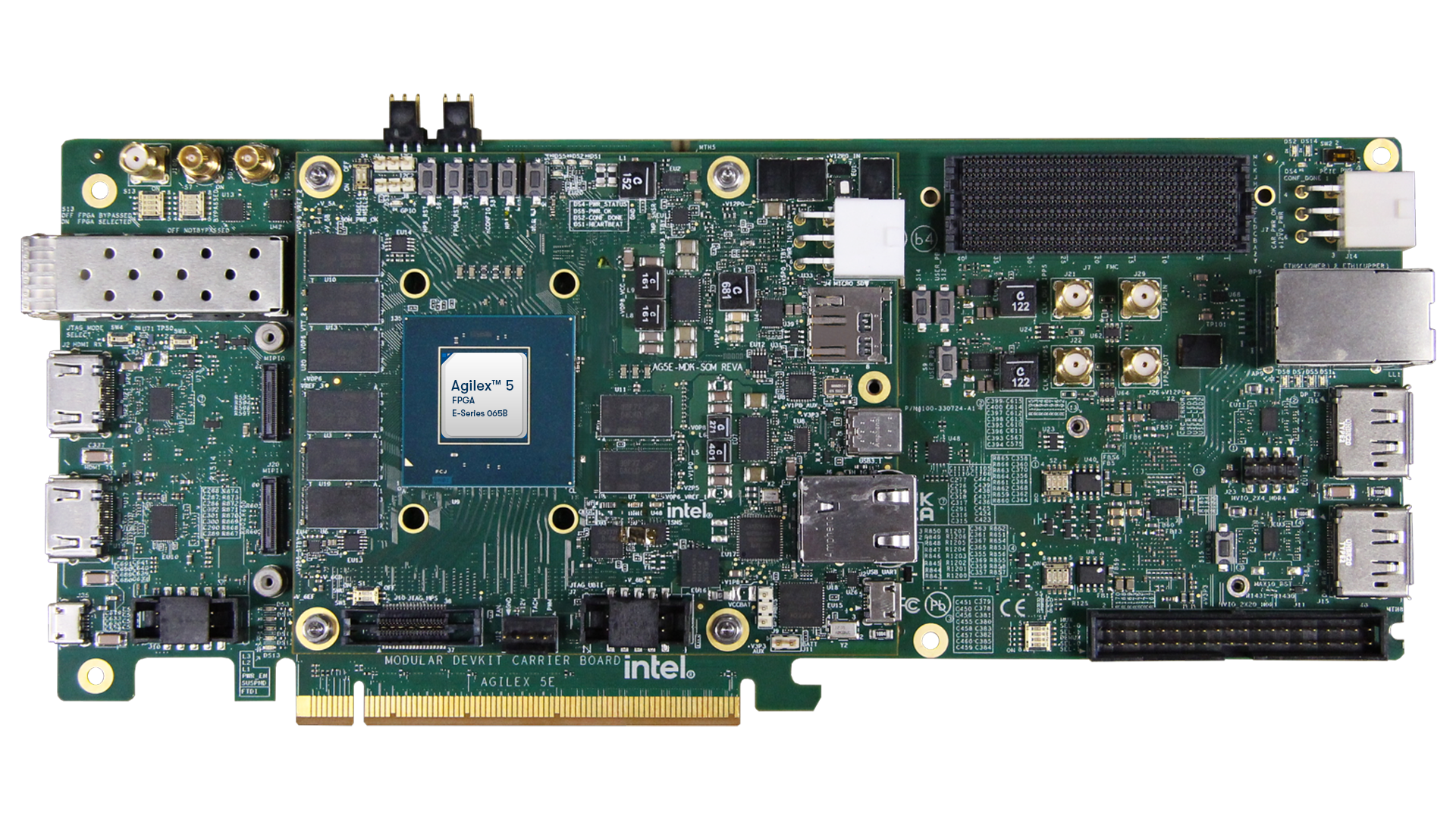

Includes modular and carrier boards with a wide range of connectivity and expansion options
Supports high-speed interfaces including PCIe Gen4 x4, SFP28 (10/25G), HDMI 2.1, and DisplayPort 2.0
Features three 8 GB DDR4 memory banks for FPGA fabric and HPS, with ECC support
Offers dual-core Arm Cortex-A76 and dual-core Cortex-A55 processors for embedded processing
Provides FMC+ expansion slot and MIPI camera connectors for vision applications
Integrated Board Test System (BTS) GUI for clock, power, memory, and transceiver testing and built-in FPGA Download Cable II and JTAG header for programming and debugging
Includes programmable clock generators and power monitoring via MAX 10 BMC
Ships with preloaded GHRD image and SD card for HPS boot, with restore tools included
Designed for bench-top or PCIe add-in card use with active heatsink cooling

Offering Brief

Device Family	Agilex® 5 FPGAs and SoC FPGAs E-Series
Offering Status	Production
Demo	No
Form Factor	Tabletop; PCIe
Power	12V DC input via ATX connector; 240W power adapter included
Interfaces	RJ45 2.5G Ethernet SFP28 10/25G USB 3.1 UART interface DisplayPort 2.0 (Rx/Tx) HDMI 2.1 (Rx/Tx) Tri-level sync via SMA 1PPS in/out via SMA GPIO headers I2C and SPI interfaces JTAG via USB or external header
Memory	8GB DDR4-1600 x32 (no ECC) on Bank 2B; 8GB DDR4-1600 x32 + ECC on Bank 3B; 8GB DDR4-1600 x32 + ECC on Bank 3A (HPS); DDR4 components: Micron MT40A2G16TBB-062E:F; Max data rate: 1600 MT/s; QSPI flash for AS x4 configuration
Connectors	FMC connector; PCIe Gen4 x16 edge connector; Micro USB connector; Micro SD card slot; HDMI connectors; MIPI0 and MIPI1 connectors; HVIO headers (2x20 and 2x4); SDI RX and TX connectors; USB Type-C connector; HPS Mictor; I2C headers
Switches & LEDs	MSEL, GPIO, and User DIP switches; Push buttons; LEDs: CONF_DONE, HEARTBEAT, STATUS; Red and green user LEDs; Switches for JTAG source selection; Switches for PHY and MIPI control; Switches for FMC JTAG bypass; Switches for PCIe clock selection; Switches for configuration mode; Fan PWM and tachometer control
