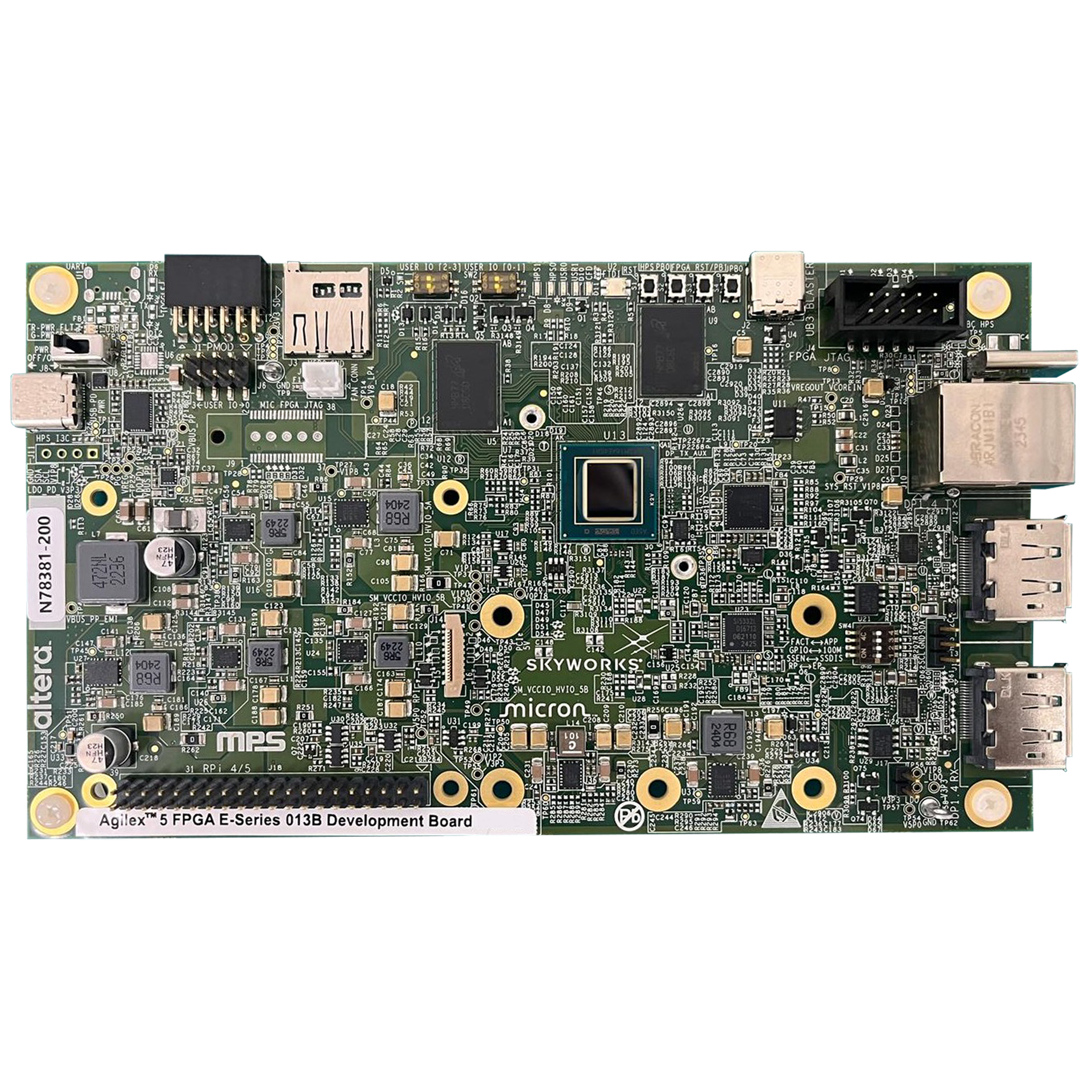

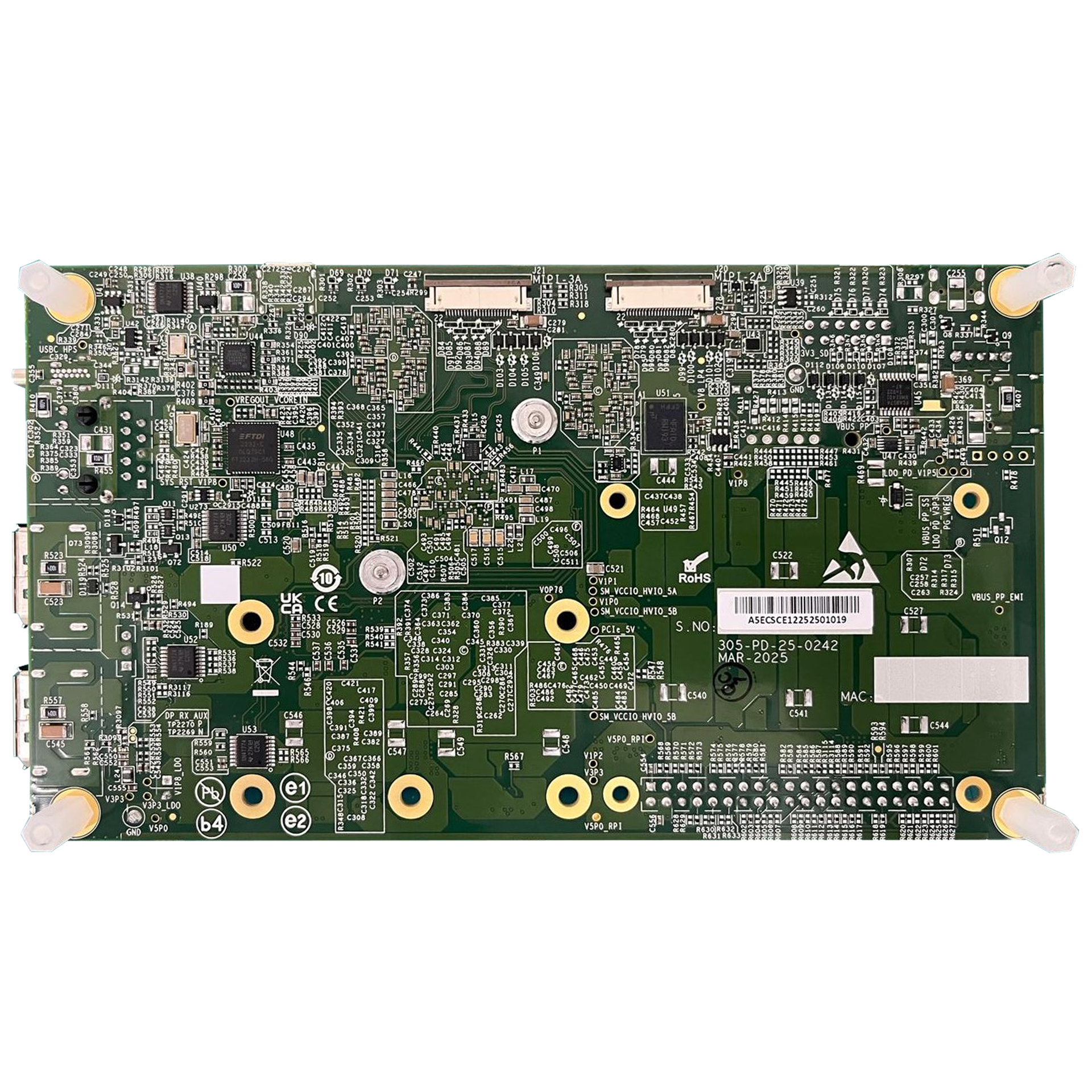

The Agilex™ 5 FPGA E-Series 013B Development Kit is a robust platform for evaluating and prototyping high-performance FPGA and SoC designs. It supports a wide range of connectivity options including PCIe 3.0 (via optional DC-A3SOCPCIE card), DisplayPort 1.4, dual MIPI interfaces, and high-speed transceivers, making it ideal for applications requiring advanced data throughput and multimedia capabilities. The kit includes dual LPDDR4 memory banks, onboard USB-Blaster III, and a comprehensive Board Test System GUI for rapid validation and development.
Designed for flexibility, the kit supports both tabletop and PCIe add-in card operation. It features expansion headers for Raspberry Pi 4/5 HATs and Digilent Pmod modules, enabling integration with popular ecosystems. The kit features HPS interfaces such as USB, Ethernet, UART, and microSD, enhancing embedded development. With its compact form factor, active cooling, and USB-PD power input, the Agilex™ 5 FPGA...
The Agilex™ 5 FPGA E-Series 013B Development Kit is a robust platform for evaluating and prototyping high-performance FPGA and SoC designs. It supports a wide range of connectivity options including PCIe 3.0 (via optional DC-A3SOCPCIE card), DisplayPort 1.4, dual MIPI interfaces, and high-speed transceivers, making it ideal for applications requiring advanced data throughput and multimedia capabilities. The kit includes dual LPDDR4 memory banks, onboard USB-Blaster III, and a comprehensive Board Test System GUI for rapid validation and development.
Designed for flexibility, the kit supports both tabletop and PCIe add-in card operation. It features expansion headers for Raspberry Pi 4/5 HATs and Digilent Pmod modules, enabling integration with popular ecosystems. The kit features HPS interfaces such as USB, Ethernet, UART, and microSD, enhancing embedded development. With its compact form factor, active cooling, and USB-PD power input, the Agilex™ 5 FPGA E-Series 013B Development Kit is well-suited for a wide range of embedded, edge, and compute-intensive applications.
