HBM2E (High-Bandwidth Memory) FPGA IP

Altera

HBM2E is a high-performance memory IP that offers a combination of high memory bandwidth, low power consumption, low latency, and small form factor for Agilex™ 7 FPGA M-Series devices. HBM2E memory is well-suited for various high-performance computing applications.

Contact Now

Key Features

  • Integrates two stacks of HBM2E DRAM with Agilex 7 FPGA M-Series with support for up to 32GB HBM2E in a single device
  • Maximizes performance across all transactions with 2 dedicated hard memory controllers per device for each HBM2E stack.
  • Up to 820 GB/s peak memory bandwidth - Up to 410GB/s memory bandwidth per HBM2E stack, 1.6x higher bandwidth vs prior generation, 10x more bandwidth vs DDR5, 7x more vs GDDR6
  • High-performance network-on-chip (NoC) to help achieve the highest bandwidth.
Expand Close

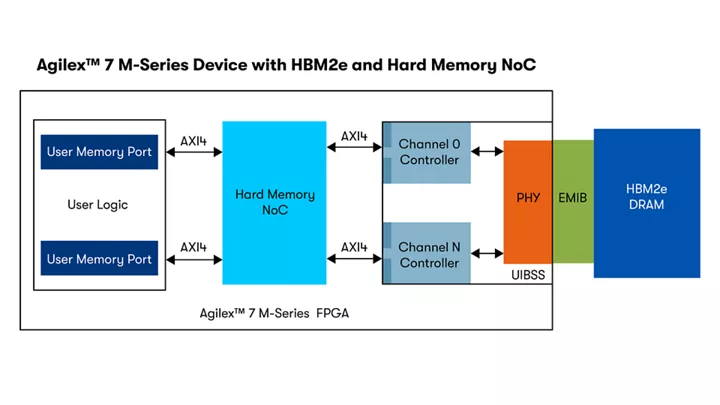

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 7 FPGAs and SoC FPGAs M-Series
Offering Status Production
Integrated Testbench No
Evaluation License No
Design Examples Available Yes
Demo No
Compliance No
Development Language Encrypted Verilog

Encrypted Verilog source code

Design Example

Simulation Models

Documentation: IP User Guide, Design Example User Guide, IP Release Notes

Ordering Information

No ordering code required. License included with Quartus Prime

from Direct

Order Now

Market Segment and Sub-Segments


Data Center Cloud (Public, Private, Hybrid)

View Sub-Segments

Data Center Cloud (Public, Private, Hybrid)

AI/HPC

Networking

Storage
