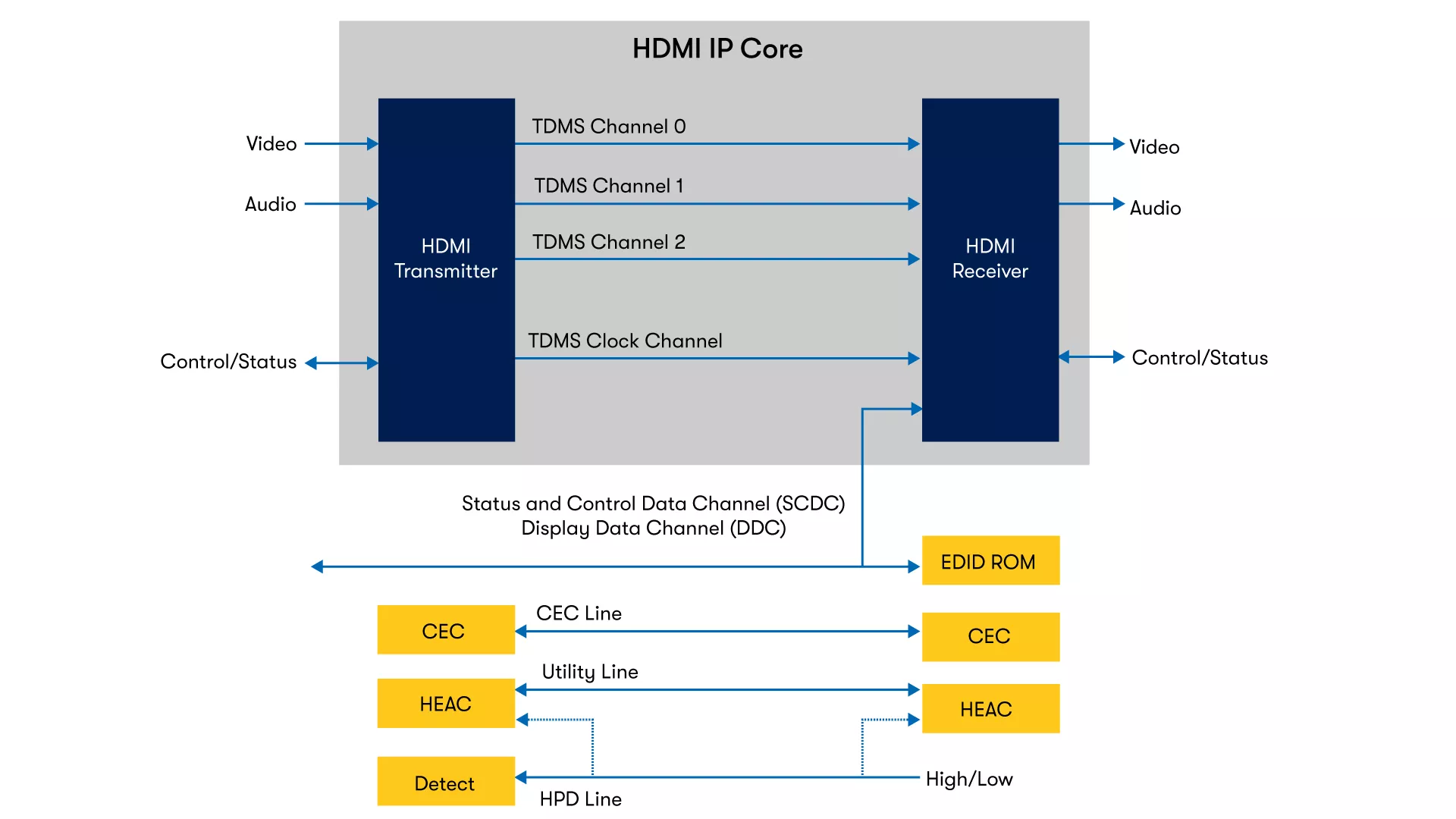

HDMI IP Core

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Altera

The Altera® FPGA High-Definition Multimedia Interface (HDMI) IP provides support for next-generation video display interface technology. The HDMI Altera® FPGA IP is part of the Altera® FPGA IP Library, which is distributed with the Quartus® Prime software.

Contact Now

Contact Altera

LeadSource

ASAP Account ID

Record Type Name

Key Features

Supports color with 8, 10, 12, or 16 bits per color (bpc) and includes RGB and YCbCr 444, 422, and 420 color modes.
Allows 1, 2, 4, or 8 symbols per clock for flexible data processing.
Supports video up to 8K resolution for high-quality output.
Handles up to 32 channels of embedded audio for enhanced audio capabilities.

Offering Brief

Device Family	Arria® V GX FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA, Stratix® V GX FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes

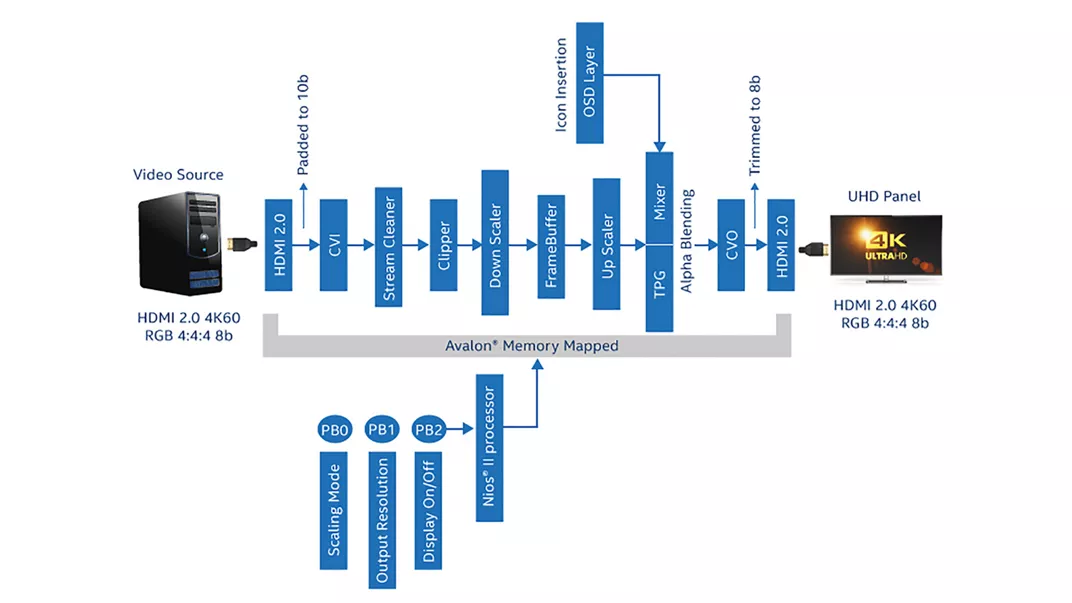

Design Examples Available	Yes

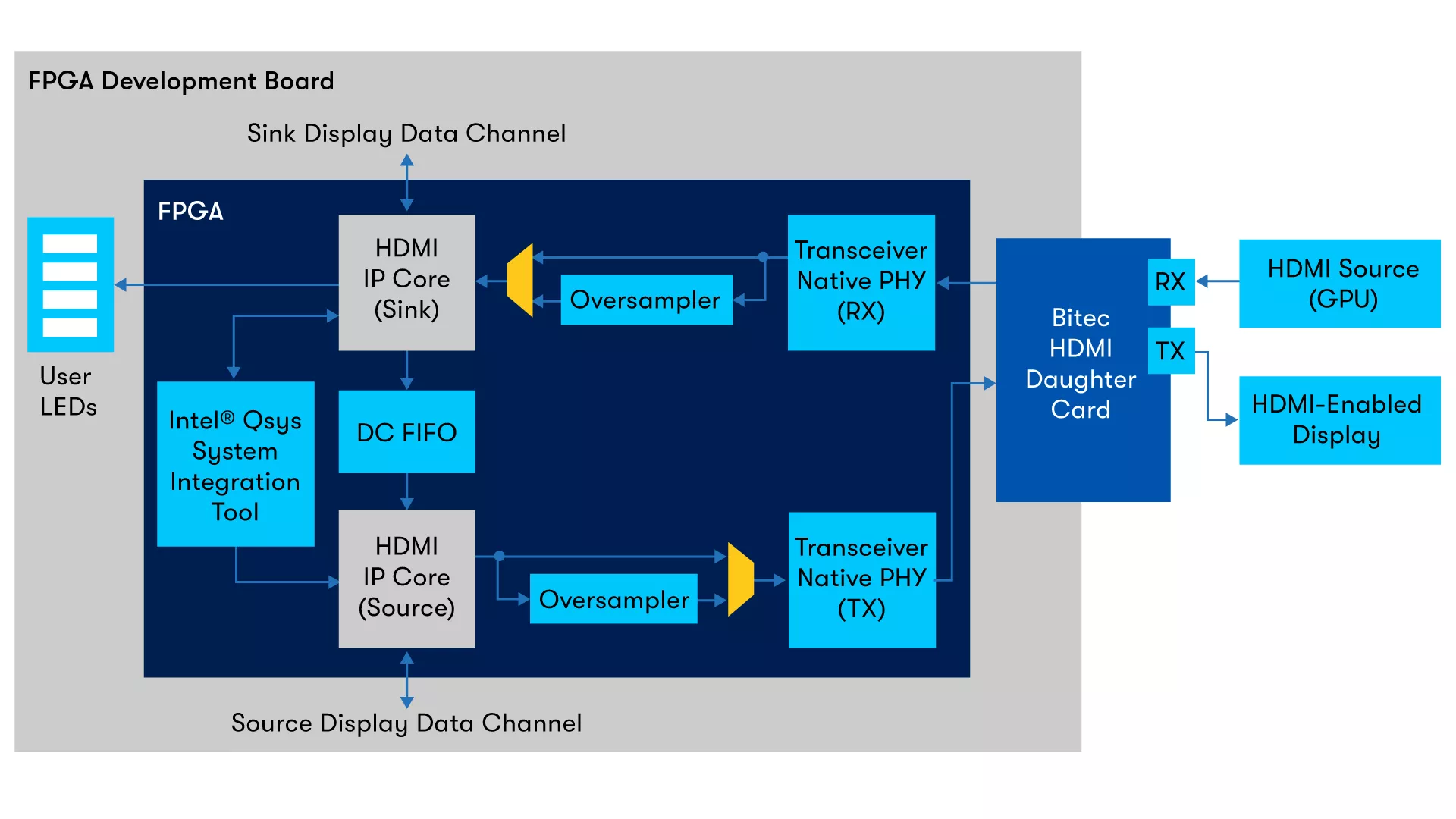

Demo	Yes
Compliance	No
Development Language	Verilog, VHDL
