Warp FPGA IP

Altera

The Altera Warp FPGA IP core, part of the Video and Vision Processing (VVP) Suite, offers a highly optimized hardware solution for performing geometric corrections and arbitrary non-linear transformations on real-time video streams. This IP core enables advanced image warping capabilities, making it ideal for applications such as lens distortion correction, perspective transformation, panoramic stitching, and projection mapping. By leveraging FPGA acceleration, the Warp IP delivers low-latency, high-throughput performance suitable for demanding environments like broadcast production, automotive vision systems, industrial inspection, and immersive display technologies. Its flexible architecture allows developers to implement custom transformation maps and integrate seamlessly into complex video processing pipelines.

Contact Now

Key Features

  • Arbitrary warp transforms and rotations
  • Highly-optimized external memory interface
  • High quality per-pixel bi-cubic interpolation
  • Coefficient sets available for the highest filter quality
  • Full data buffering to allow input and output to operate on independent clock domains
  • Support for 10-bit per color component
  • Support up to 2 pixels in parallel per clock processing
  • Support resolutions up to 3840 × 2160 at 60 fps and future support for up to 8K at 60 fps
  • Low FPGA resource utilization
  • AXI4-Stream video I/O interface
  • AXI4-Stream ↔ Avalon® stream interface protocol converters
  • Avalon® memory-mapped CPU control and memory interfaces
Expand Close

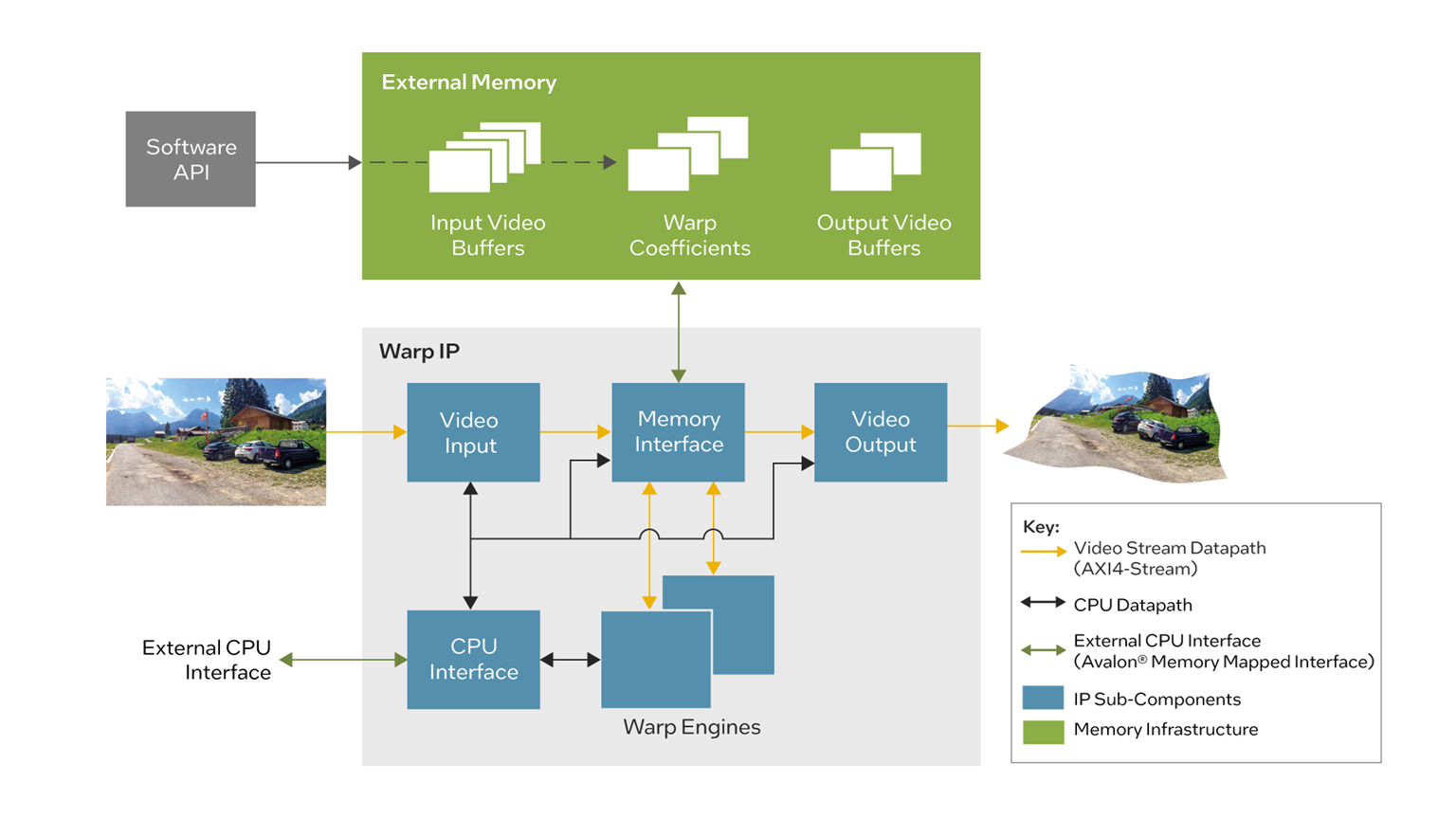

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Design Examples Available Yes
Demo No
Compliance No
Development Language Encrypted Verilog, Encrypted VHDL

Encrypted Verilog source code

Design Example

Simulation Models

IP Evaluation Mode

Documentation: IP User Guide, IP Release Notes

Ordering Information

IP- OM-WARP

from Mouser

Order Now

IP- OM-WARP

from Digikey

Order Now
