HSDLC: HDLC & SDLC Protocol Controller Core

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Computer Aided Software Technologies, Inc (dba CAST)

Member

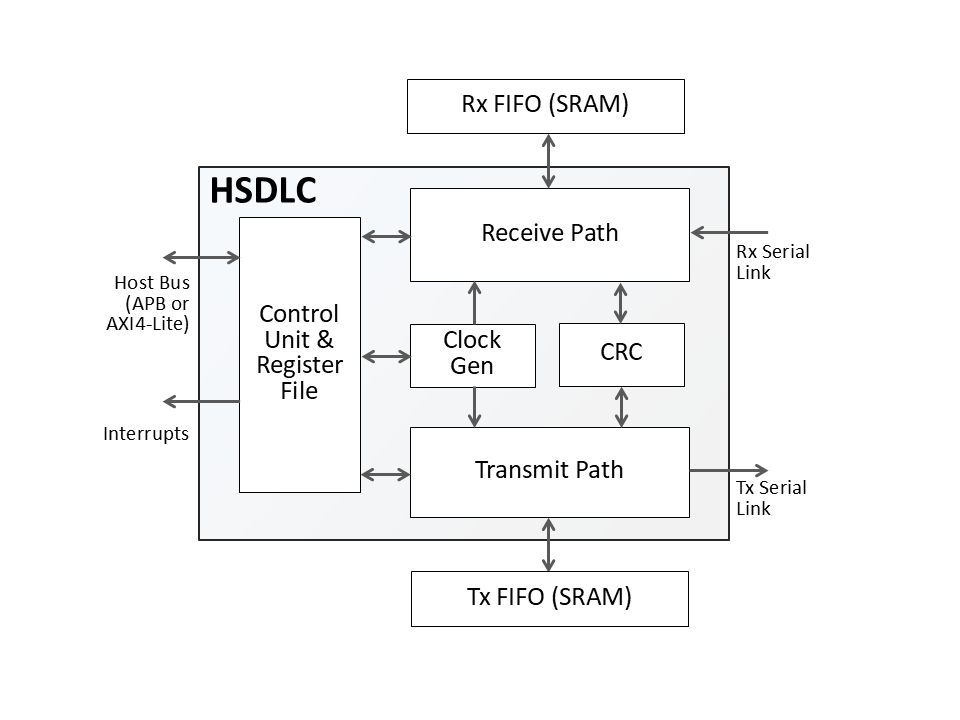

The HSDLC IP core implements a controller for the High-Level Data Link Control (HDLC) and the Synchronous Data Link Control (SDLC) protocols. It is based on the Intel® 8XC152 Global Serial Channel (GSC) working in SDLC mode, and adds features to support HDLC or proprietary frame transmission under host processor control.

The core operates as a peripheral to a host processor, and is easy to integrate with both modern and legacy processors. Control and status registers are accessible via an APB or a generic 80C51-like bus interface, and a comprehensive set of interrupt signals facilitates interrupt-based operation.

The controller’s great flexibility enables a variety of serial link setups. It provides two independent interfaces, one for transmitting and one for receiving data. Both interfaces provide control signals for the link drivers to support both full- and half-duplex operation. The controller can be programmed to use hardware flow control signals (RTS/CTS) and it can also detect collisions. The baud rate is programmable and limited only by the link drivers and the core’s clock frequency. The core derives the receive clock from the received serial data, or uses an externally provided receive clock.

The HSDLC is available in two versions: Normal, and Safety-Enhanced. The Safety-Enhanced version implements triple-modular redundancy (TMR) to provide full immunity to single-bit upsets and errors and complies to Design Assurance, Level A (DAL-A) of the DO-254 standard.

The HSDLC controller core is designed for reuse and is rigorously verified and scan-ready. Although designed to manage serial links, the core contains no latches or tri-states, and is fully synchronous with a single clock domain. The core is available in Verilog RTL or as a targeted FPGA netlist. Deliverables provide everything required for a successful implementation, including sample scripts, an extensive testbench, and comprehensive documentation.

View Partner Website

Partner Product Page

Contact Now

Contact Computer Aided Software Technologies, Inc (dba CAST)

LeadSource

ASAP Account ID

Record Type Name

Key Features

Controller for SDLC/HDLC (ISO 13239), based on Intel® 8XC152 GSC in SDLC mode, with added support for HDLC & proprietary serial protocols.
Optional Safety-Enhanced DO-254/DAL-A version with TMR on all registers, delivered with full DO-254 Certification Data Package.
Flexible frame formatting with programmable preamble/spacing, address filtering, test modes, multiple encodings, CRC options, and RX FIFO counter.
Flexible serial link with full/half duplex, programmable baud, RTS/CTS, collision detection, internal/external clocks, and auto RX clock recovery.
Easy integration suitable for interrupt/polling operation, configurable TX/RX FIFOs, 80XC152-like registers, and APB or AXI4-Lite interface support.

Offering Brief

Device Family	Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST SoC FPGA, Arria® V SX SoC FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE SoC FPGA, Cyclone® V ST SoC FPGA, Cyclone® V SX SoC FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, MAX® 10 FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	Yes
Latest Quartus Version Supported	24.3.1
Development Language	Encrypted Verilog, Verilog
