JPEG-D-S: Baseline JPEG Decoder

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Computer Aided Software Technologies, Inc (dba CAST)

Member

This JPEG decompression IP core supports the Baseline Sequential DCT mode of the ISO/IEC 10918-1 standard. It implements a high-performance hardware JPEG decoder that is very small in silicon area.

The JPEG-D-S Decoder decompresses JPEG images and the video payload for Motion-JPEG container formats. It accepts compressed streams of images with 8-bit color samples and up to four color components, in all widely-used color subsampling formats.

The decoder processes one color sample per clock cycle, enabling it to process multiple Full-HD channels even in low-cost FPGAs. One of the smallest JPEG decoders available, it requires approximately 4,000 ALMs when mapped on an Altera FPGA.

Once programmed, the easy-to-use decoder operates on a standalone basis, parsing marker segments and decompressing coded data with no assistance from a host processor. The decoder reports the image format (i.e., resolution, subsampling format, and color sample-depth) t...

This JPEG decompression IP core supports the Baseline Sequential DCT mode of the ISO/IEC 10918-1 standard. It implements a high-performance hardware JPEG decoder that is very small in silicon area.

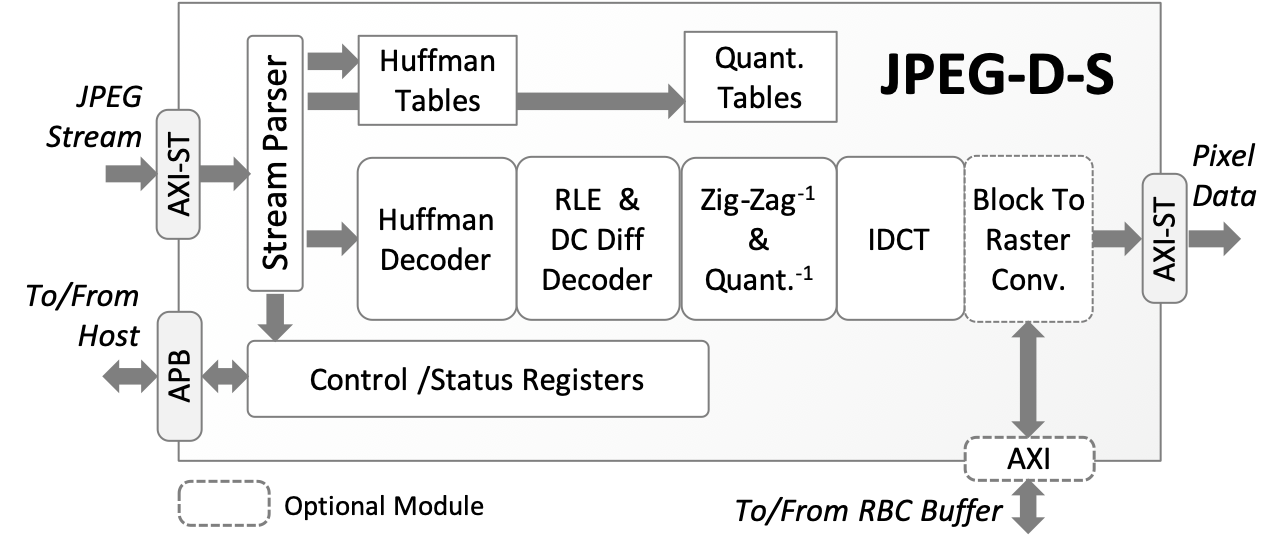

SoC integration is straightforward thanks to standardized AMBA® interfaces: AXI Streaming for pixel and decompressed data, and a 32-bit APB slave interface for registers access.

Customers with a short time to market requirements can use CAST’s IP Integration Services to receive complete JPEG subsystems. These integrate the JPEG decoder with video interface controllers, Hardware UDPIP or Transport Stream networking stacks, or other IP cores available from CAST.

The core is designed with industry best practices, and its reliability and low risk have been proven through both rigorous verification and customer production. Its deliverables include a complete verification environment and a bit-accurate software model.

View Partner Website

Partner Product Page

Contact Now

Contact Computer Aided Software Technologies, Inc (dba CAST)

LeadSource

ASAP Account ID

Record Type Name

Key Features

Supports ISO/IEC 10918-1 Baseline JPEG, single-frame and Motion JPEG, 8-bit color, up to four components, subsampling formats, and all scan configurations.
Provides AXI Streaming I/O for data, APB interface for control/status, and an optional AHB wrapper with integrated DMA for flexible system integration.
Processes one decoded sample per clock cycle with a compact design, requiring only ~4k ALMs, enabling high-performance and area-efficient implementation.
Operates standalone with no host control, reports image format and marker errors, includes bit-accurate model, with optional block-to-raster conversion support.

Offering Brief

Device Family	Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST SoC FPGA, Arria® V SX SoC FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE SoC FPGA, Cyclone® V ST SoC FPGA, Cyclone® V SX SoC FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, MAX® 10 FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	Yes
Latest Quartus Version Supported	24.3.1
Development Language	Verilog
