SCR: Smart Card Reader Controller

Overview Key Features Offering Brief What's Included Ordering Information Markets

Computer Aided Software Technologies, Inc (dba CAST)

Member

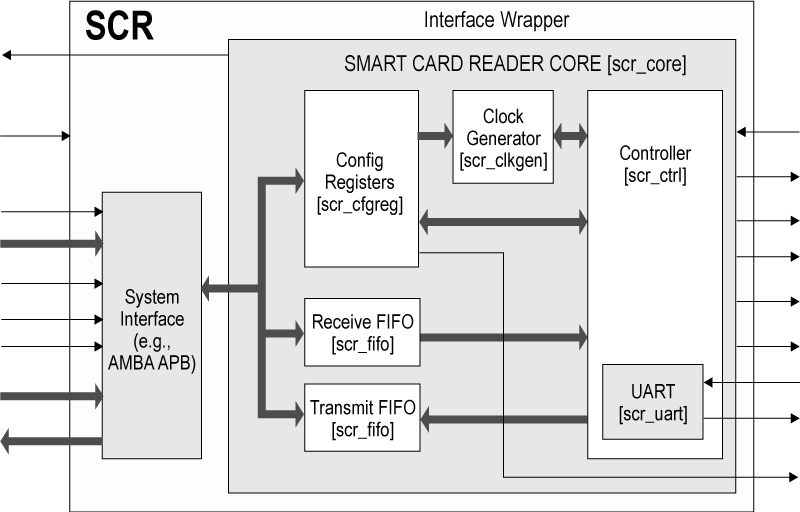

Implements an interface and controller for communicating between smart cards and host systems using a variety of standard system interfaces. The SCR supports the ISO/IEC 7816-3:2006 and EMV 4.3 specifications, which define the electrical signals and transmission protocols for smart cards (also known as integrated circuit cards). It acts as a communication controller, passing data to and from the host system and the smart card. It is fully-featured, and can activate and deactivate cards, perform cold/warm resets, handle ATR response reception, and execute other essential functions. The SCR consists of the core smart card reader logic with a wrapper for the desired system interface. (AMBA APB interface is available; support for AMBA AXI4-Lite, Avalon-MM or Wishbone is optional.) The core is fully synchronous for easier testing and is designed for efficient ASIC or FPGA implementation. It requires, for example, just 6,500 ASIC gates and operates at 300 MHz (TSMC ...

View Partner Website

Partner Product Page

Contact Now

Contact Computer Aided Software Technologies, Inc (dba CAST)

LeadSource

ASAP Account ID

Record Type Name

Key Features

Supports the ISO/IEC 7816-3:2006 and EMV 4.3 specifications
Performs functions needed for complete smart card sessions
Supports synchronous and any other non-ISO 7816 and non-EMV cards
Extensive interrupt support system and adjustable clock rate and bit (baud) rate
Handles commonly used communication protocols: half-duplex character or block transmission
Configurable automatic byte repetition; automatic convention detection; automatic voltage class selection
Adjustable FIFOs for Receive and Transmit buffers (up to 32k characters) with threshold
Standard system interface wrapper architecture for easy integration with host systems

Offering Brief

Device Family	Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST SoC FPGA, Arria® V SX SoC FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE SoC FPGA, Cyclone® V ST SoC FPGA, Cyclone® V SX SoC FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	Yes
Latest Quartus Version Supported	24.3.1
Development Language	Encrypted Verilog, Verilog
