ISDB-T Modulator

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Commsonic Ltd

Select

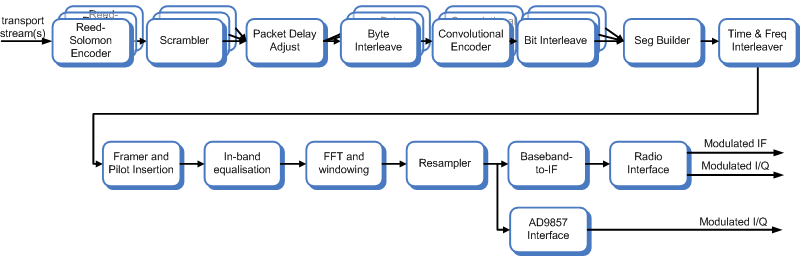

The ISDB-T modulator / ISDB-TB modulator core enables rapid development of audio and visual systems using commodity free-to-air set-top-box products. Commodity products have largely been aimed at the broadcast market where the high volumes are at the demodulation end of the link. The Commsonic ISDB-T modulator allows exploitation of this technology by allowing the development of the ISDB-T modulator in low-cost FPGA or ASIC implementation. Applications include CCTV, wireless home networking, test equipment, etc.

View Partner Website

Partner Product Page

Contact Now

Contact Commsonic Ltd

LeadSource

ASAP Account ID

Record Type Name

Key Features

RS and convolutional encoding.
Partial reception segment encoding.
Supports SDRAM or synchronous SRAM.
Time and frequency interleaving.
(D)QPSK, QAM-16 and QAM-64 support.
Hierarchical layer support.
2k,4k and 8k FFT.
FFT guard interval insertion.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® III FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	Yes
Design Examples Available	No
Demo	No
Compliance	No
Development Language	C/C++, Encrypted VHDL
