DVB-T / DVB-H Modulator

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Commsonic Ltd

Select

The proliferation of low-cost DVB-T / DVB-H demodulation and set-top-box products has opened up a wealth of opportunities for applications requiring low-cost broadband wireless audio/video/data links using DVB-T modulator technology. Commodity products have largely been aimed at the broadcast market where the high volumes are at the demodulation end of the link. The Commsonic DVB-T Modulator allows exploitation of this technology by allowing the development of the DVB-T modulator in low-cost FPGA or ASIC implementation. Applications include CCTV, wireless home networking, test equipment, etc.

View Partner Website

Partner Product Page

Contact Now

Contact Commsonic Ltd

LeadSource

ASAP Account ID

Record Type Name

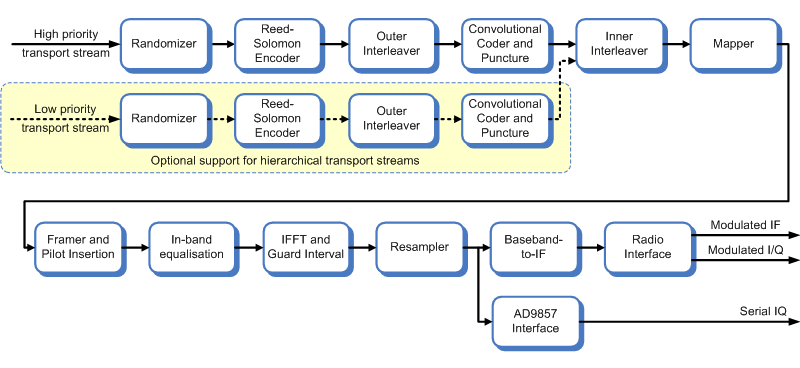

Key Features

RS and convolutional encoding.
Native and indepth interleaving.
QPSK, QAM-16 and QAM-64 support. Hierarchical support.
2k,4k and 8k FFT.
FFT guard interval insertion.
Variable 5-8MHz bandwidth interpolation.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® III FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	Yes
Design Examples Available	No
Demo	No
Compliance	No
Development Language	C/C++, Encrypted VHDL
