DVB-C / J83abc Demodulator

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Commsonic Ltd

Select

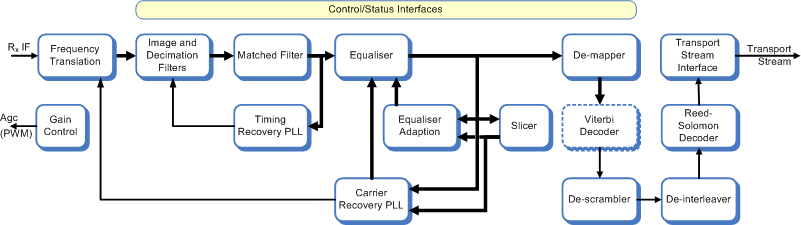

The CMS0022 Cable (QAM) Demodulator is fully compliant with the European, US and Japanese downlink cable standards DVB-C EN 300 429 and ITU J83 Annexes A/B/C (including DOCSIS 1.1/2.0). The core provides all the necessary functions between modulated QAM input to transport stream output.

View Partner Website

Partner Product Page

Contact Now

Contact Commsonic Ltd

LeadSource

ASAP Account ID

Record Type Name

Key Features

Low demodulator implementation loss <0.2dB (16QAM), <0.4dB (256QAM).
IF sub-sampling or I/Q baseband input.
Wide carrier acquisition range.
Programmable symbol rate.
Large QAM support : BPSK .. QAM-256.
Variable ADC sampling frequency.
Automatic QAM mode, FEC and spectral inversion searching.
Pre-Viterbi and Pre-RS bit-error-rate statistics.
Post FEC bit-error-rate statistics.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® III FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	Yes
Design Examples Available	No
Demo	No
Compliance	No
Development Language	C/C++, Encrypted VHDL
