DVB-C / J.83abc Modulator

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Commsonic Ltd

Select

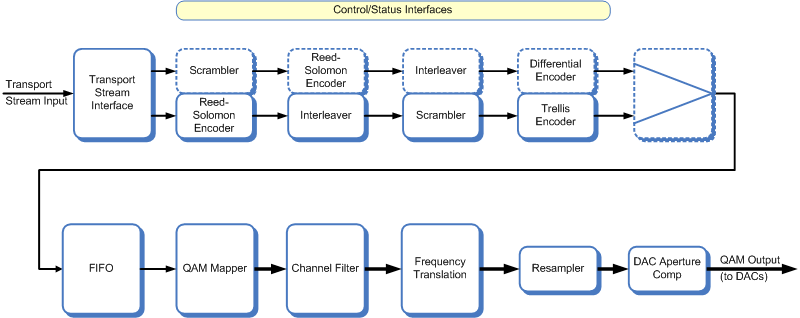

The CMS0021 single-channel DVB-C modulator / J83 modulator is fully compliant with the European, US and Japanese downlink cable standards DVB-C EN 300 429 and ITU J83 Annexes A/B/C (including DOCSIS 1.1/2.0). The core provides all the necessary functions between transport stream input and a modulated QAM output.

View Partner Website

Partner Product Page

Contact Now

Contact Commsonic Ltd

LeadSource

ASAP Account ID

Record Type Name

Key Features

Modulation accuracy > 45dB (MER).
Variable symbol rate interpolation.
Software selectable channel filter.
On-chip or off-chip interleaver memory.
Single or multiple standards per core.
Multiple cores provide > 1 channel.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® III FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	Yes
Design Examples Available	No
Demo	No
Compliance	No
Development Language	C/C++, Encrypted VHDL
