DVB-S / DVB-DSNG Modulator

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Commsonic Ltd

Select

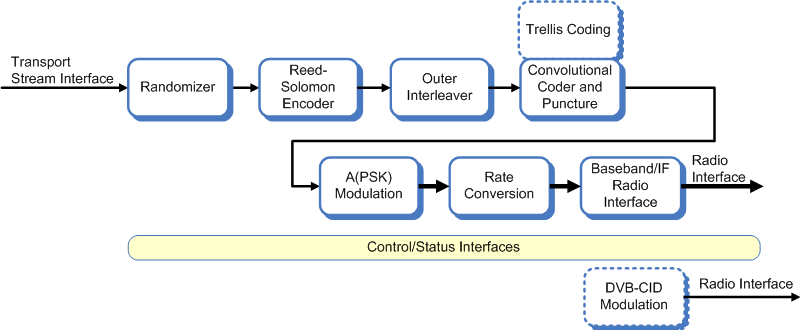

The CMS0010 DVB-S modulator / DSNG modulator is an integrated modulator and Reed-Solomon encoder core designed specifically to address the requirements of the ETSI DVB-S forward-link satellite Standard (EN300421). The core can be extended to include the trellis coding as required by the ETSI DVB-DSNG forward-link satellite Standard (EN301210).

View Partner Website

Partner Product Page

Contact Now

Contact Commsonic Ltd

LeadSource

ASAP Account ID

Record Type Name

Key Features

Integrated Reed-Solomon channel coder.
Variable sample-rate interpolation provides ultra flexible clocking strategy.
Optional simultaneous DVB-CID modulation.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® III FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	Yes
Design Examples Available	No
Demo	No
Compliance	No
Latest Quartus Version Supported	23.0.0
Development Language	C/C++, Encrypted VHDL
