MitySOM-A10S Arria® 10 SoC System on Module

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Critical Link LLC

Select

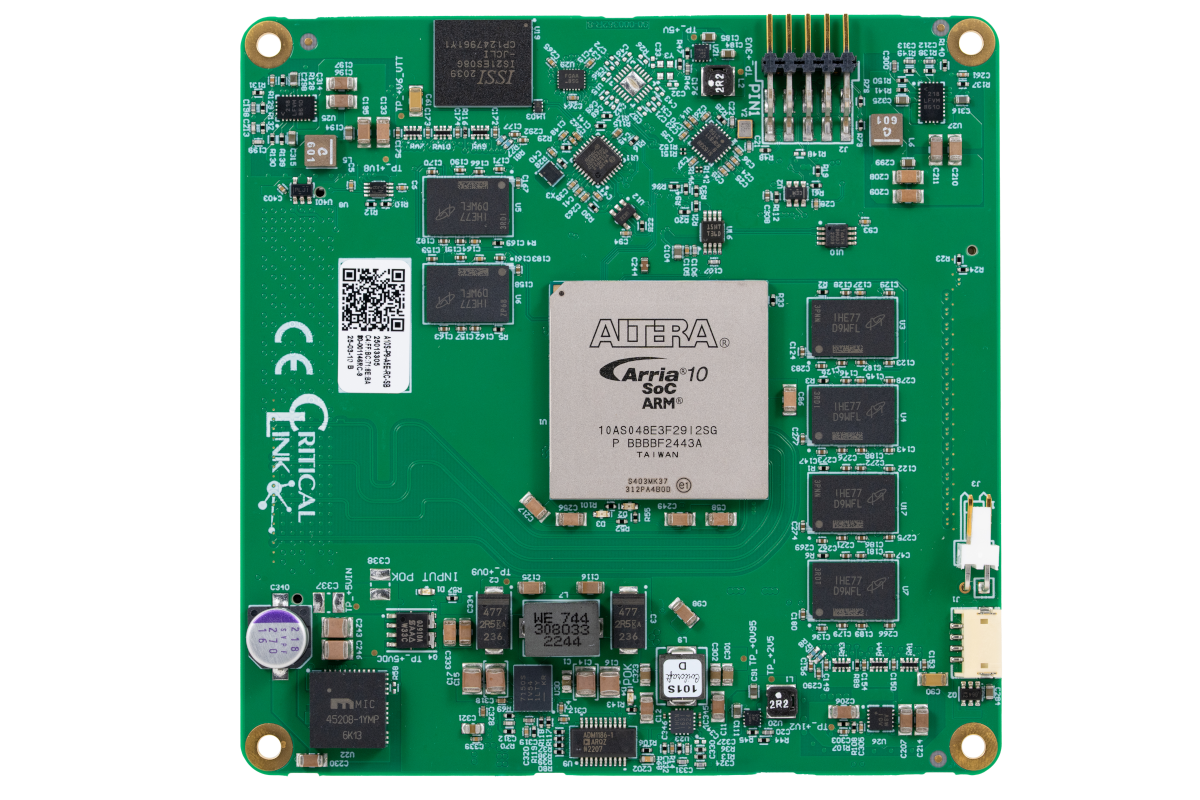

The MitySOM-A10S is an Altera Arria 10 SoC SOM (system on module) for a wide range of industrial embedded applications. In addition to the A10 processor, the module includes on-board power supplies, two DDR4 RAM memory subsystems, micro SD card, a USB 2.0 on the go (OTG) port, and a temperature sensor. The MitySOM-A10S SOM provides a complete and flexible CPU infrastructure for highly integrated embedded systems.

The MitySOM-A10S is available with a 270KLE Arria 10 SX which provides dual-core Cortex-A9 32-bit RISC processors with dual NEON SIMD coprocessors. Options for 160KLE and 480KLE devices are also available. This MPU can run a rich set of real-time operating systems containing software APIs expected by modern system designers. The ARM architecture supports several operating systems, including Linux.

View Partner Website

Partner Product Page

Contact Now

Contact Critical Link LLC

LeadSource

ASAP Account ID

Record Type Name

Key Features

Production-ready Arria 10 SoC SOM featuring a range of FPGA densities, memory configurations, and operating temperature ranges

Offering Brief

Device Family	Arria® 10 SX SoC FPGA
Offering Status	Production
Device OPN(s) on Board	10AS027E3F29I2SG;10AS048E3F29I2SG

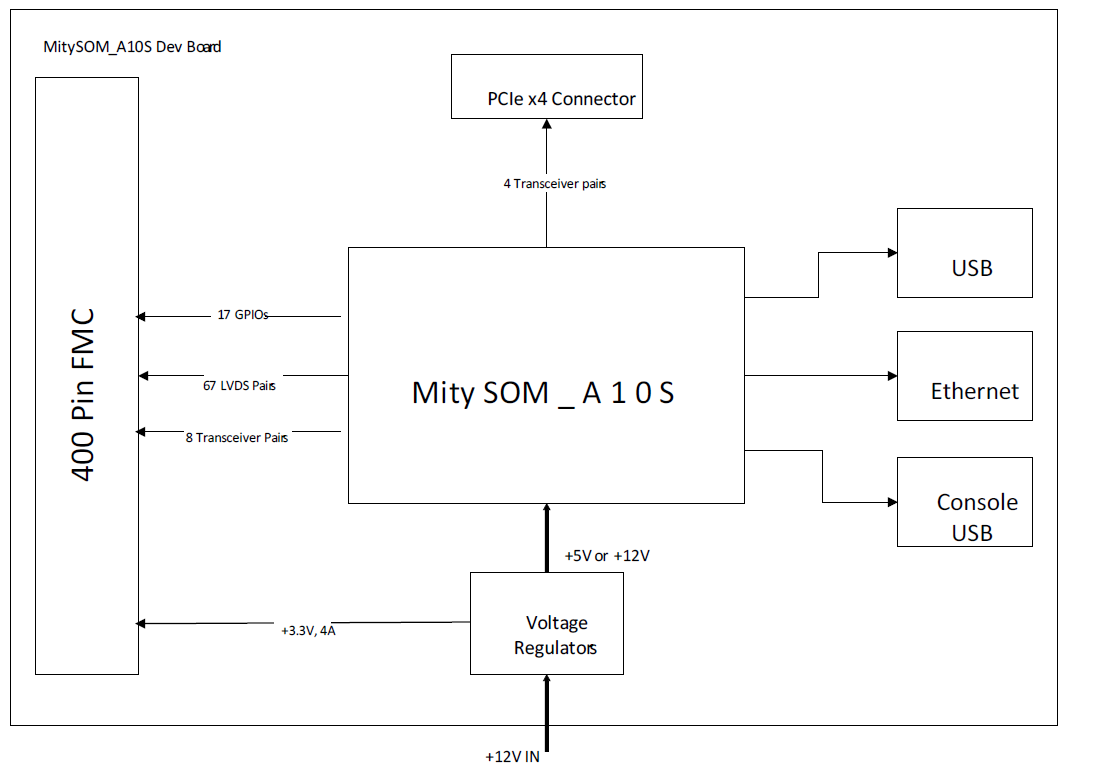

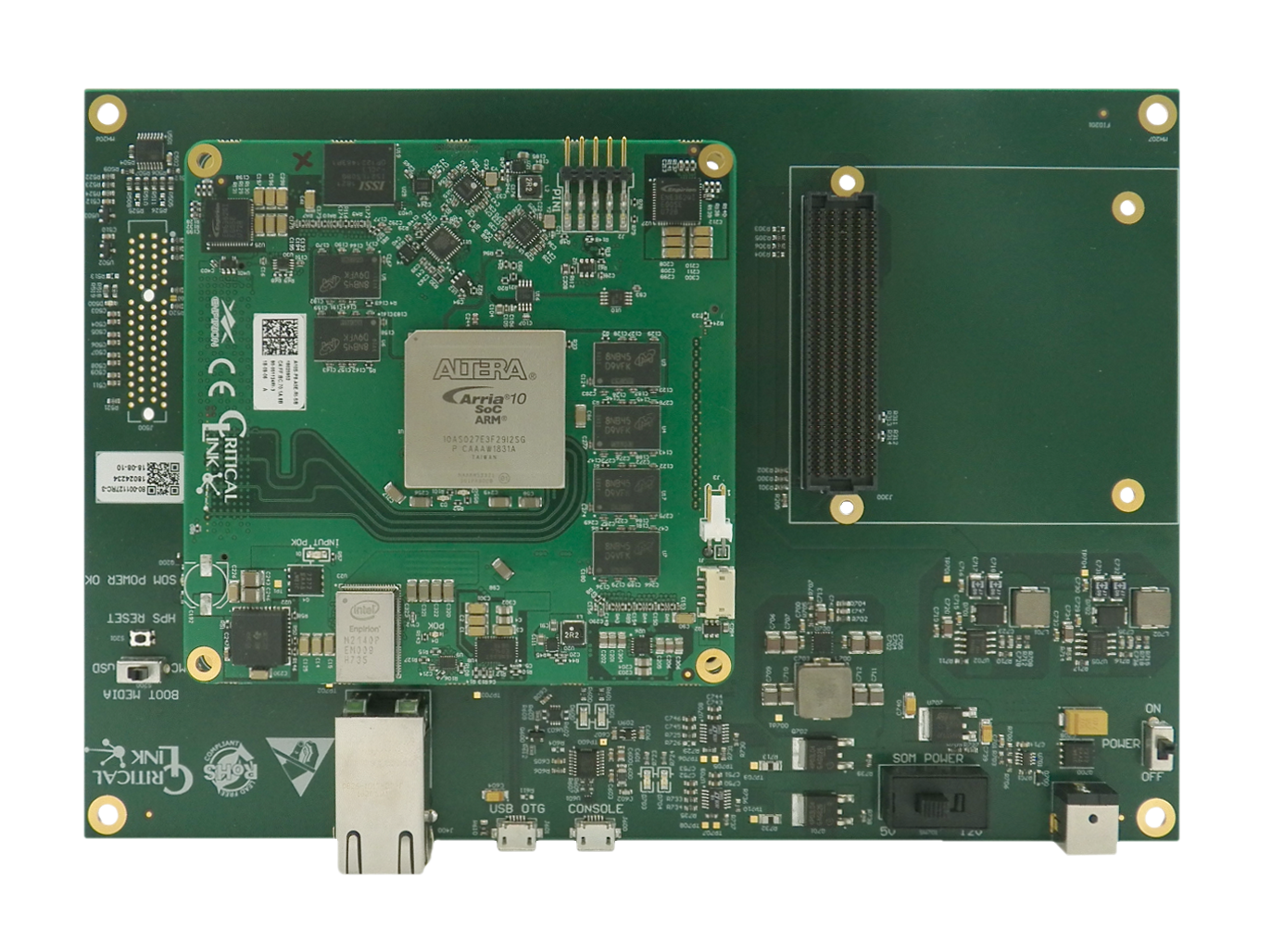

Hardware Platforms Supported	Arria® 10 SX SoC Development Kit
Demo	No
Form Factor	4.0" x 4.0"
Power	+12v or +5v power input options
Interfaces	3 Gigabit Ethernet MACs (10/100/1000Mbps), 12 High speed transceiver pairs, 11.3Gbps, 1 x8 PCIe Hard IP Block (up to Gen 3), Max 138 Direct FPGA I/Os, 30 shared HPS/FPGA I/Os, 1 MMC/SD/SDIO, 1 USB 2.0 OTG, 4 SPI controllers, 5 I2C controllers, 2 UART
Memory	2 banks DDR4 memory: 4GB HPS shared memory, 2GB FPGA memory

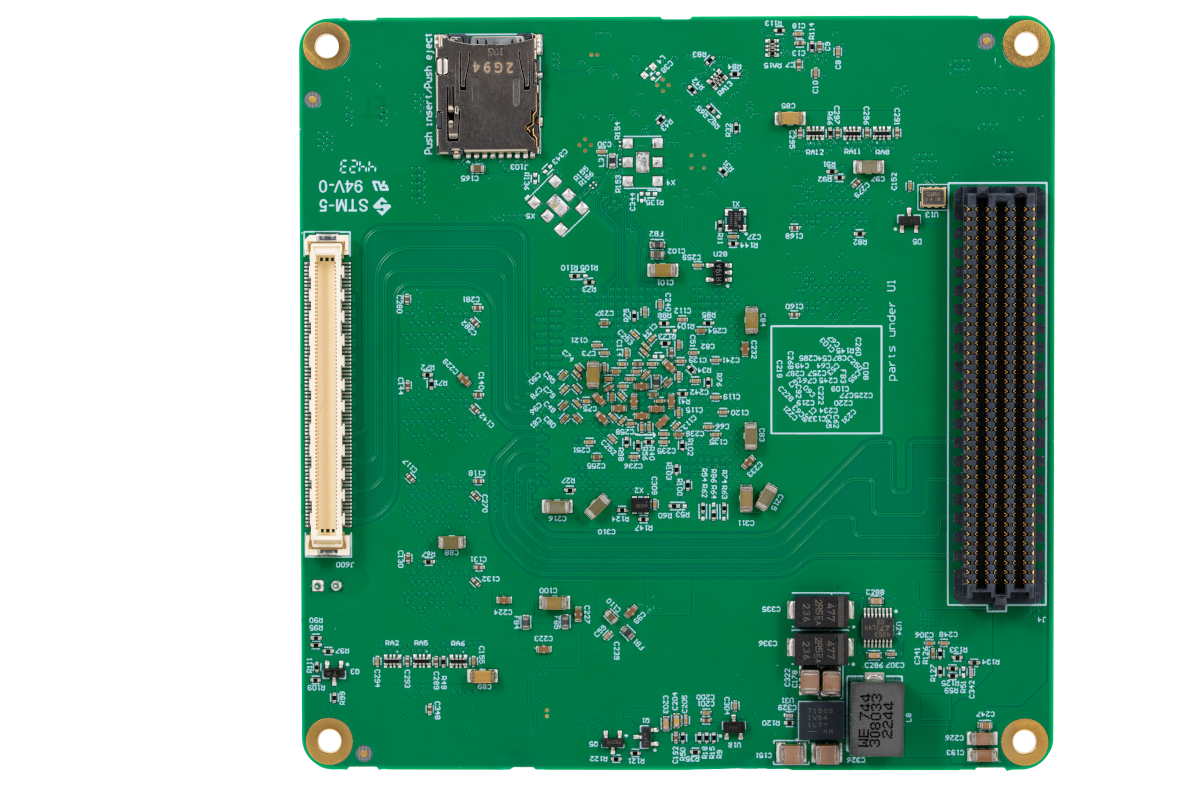

Connectors	Dual board-to-board connectors
Switches & LEDs	yes
Latest Quartus Version Supported	21.3.0
