MitySOM-A10S Development Kit - Altera® Arria® 10 SoC

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Critical Link LLC

Select

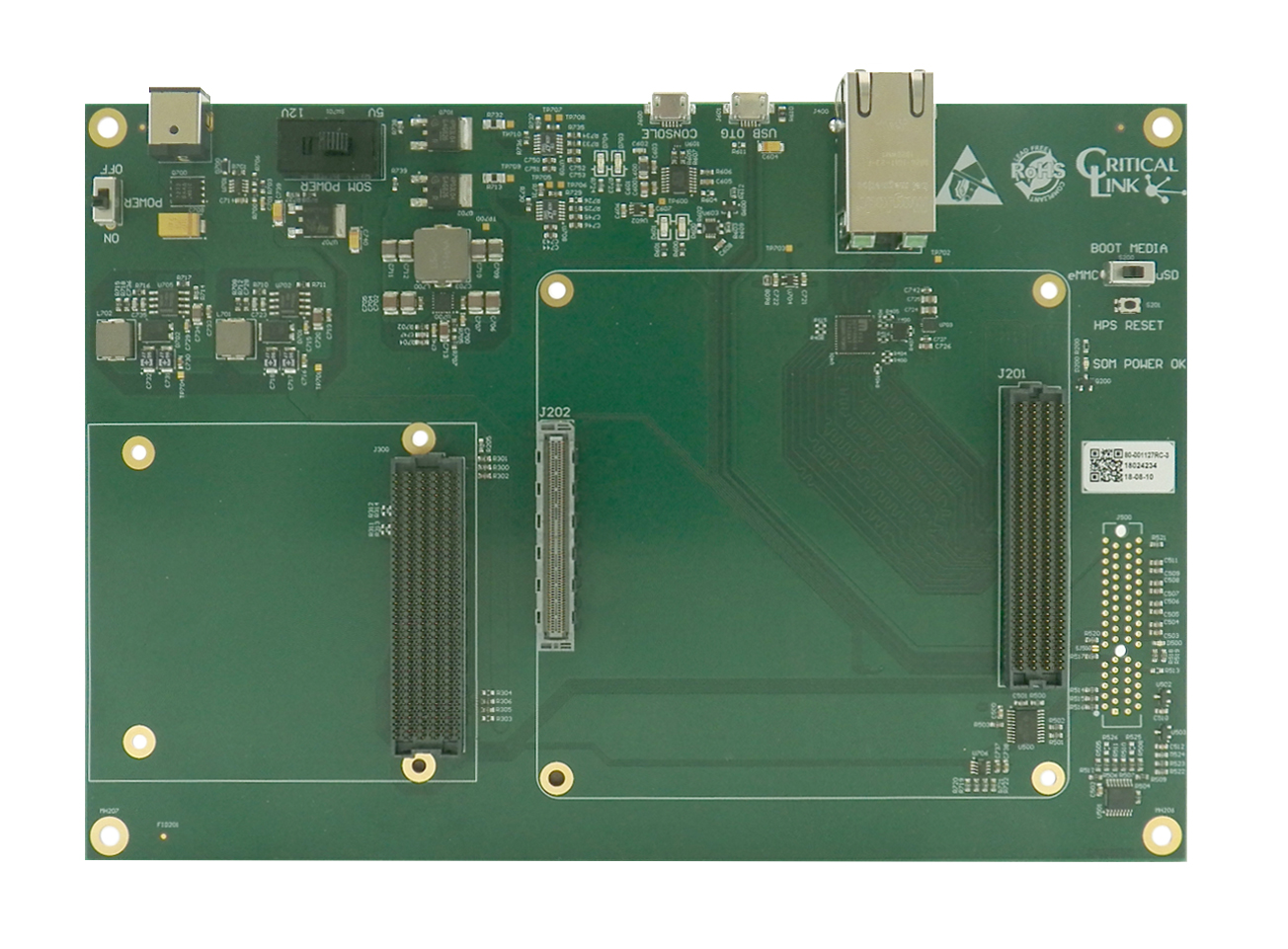

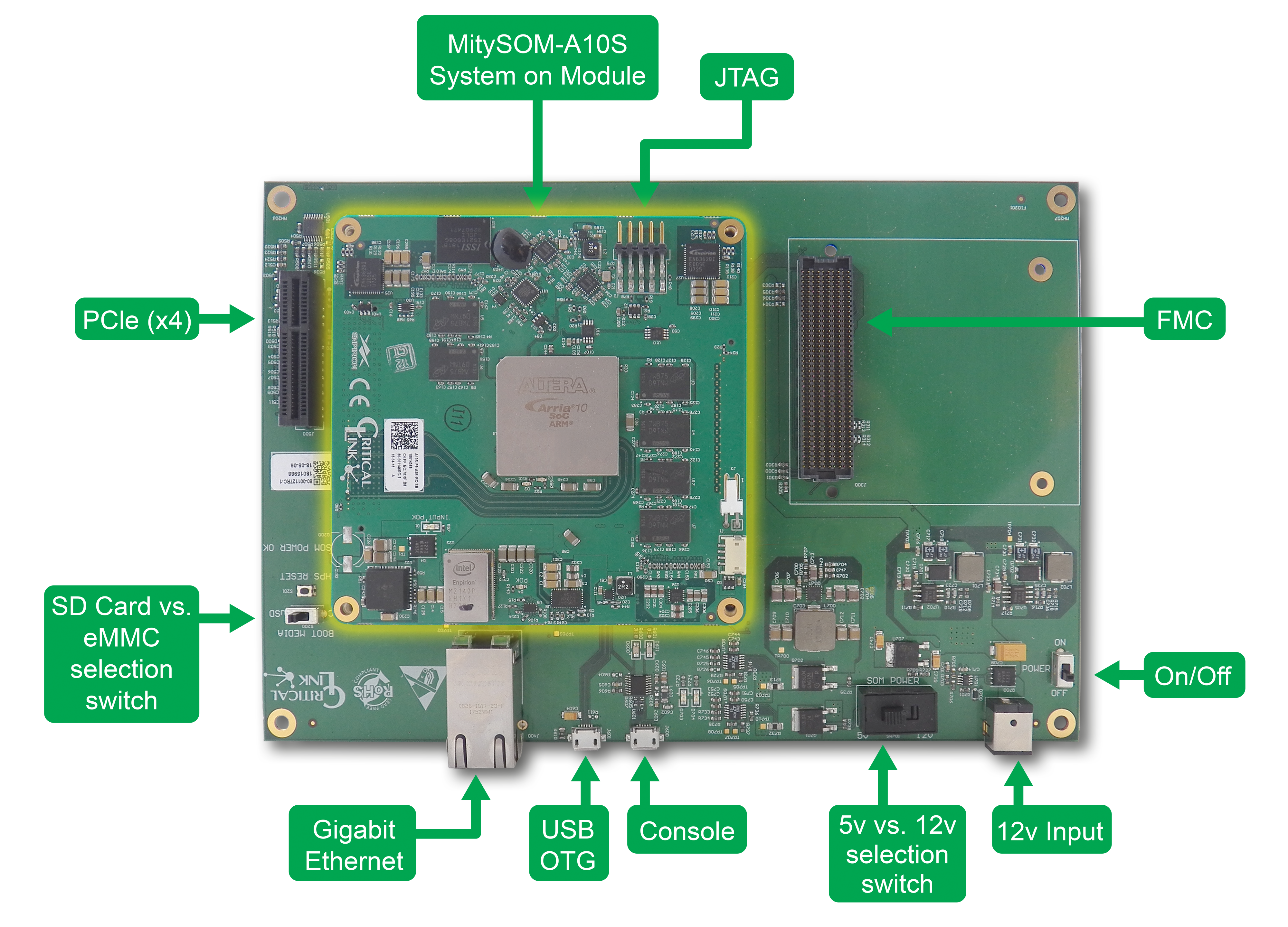

The MitySOM-A10S Development Kit supports Critical Link’s Altera Arria® 10 SoC based modules. Each kit includes a compatible MitySOM-A10S module and a base board that together feature an array of interfaces and expansion headers such as FMC, USB 2.0 OTG, USB Console, PCI-e x4 Expansion Header, Gigabit Ethernet, and eMMC/SD Card.

View Partner Website

Partner Product Page

Contact Now

Contact Critical Link LLC

LeadSource

ASAP Account ID

Record Type Name

Key Features

Excellent out of box experience and easy transition to production for customers developing with Arria 10 SoC

Offering Brief

Device Family	Arria® 10 SX SoC FPGA
Offering Status	Production
Device OPN(s) on Board	10AS027E3F29I2SG;10AS048E3F29I2SG
Hardware Platforms Supported	Arria® 10 SX SoC Development Kit
Demo	No
Form Factor	5.8" x 8.4"
Power	Integrated +5V/+12V Power Supplies

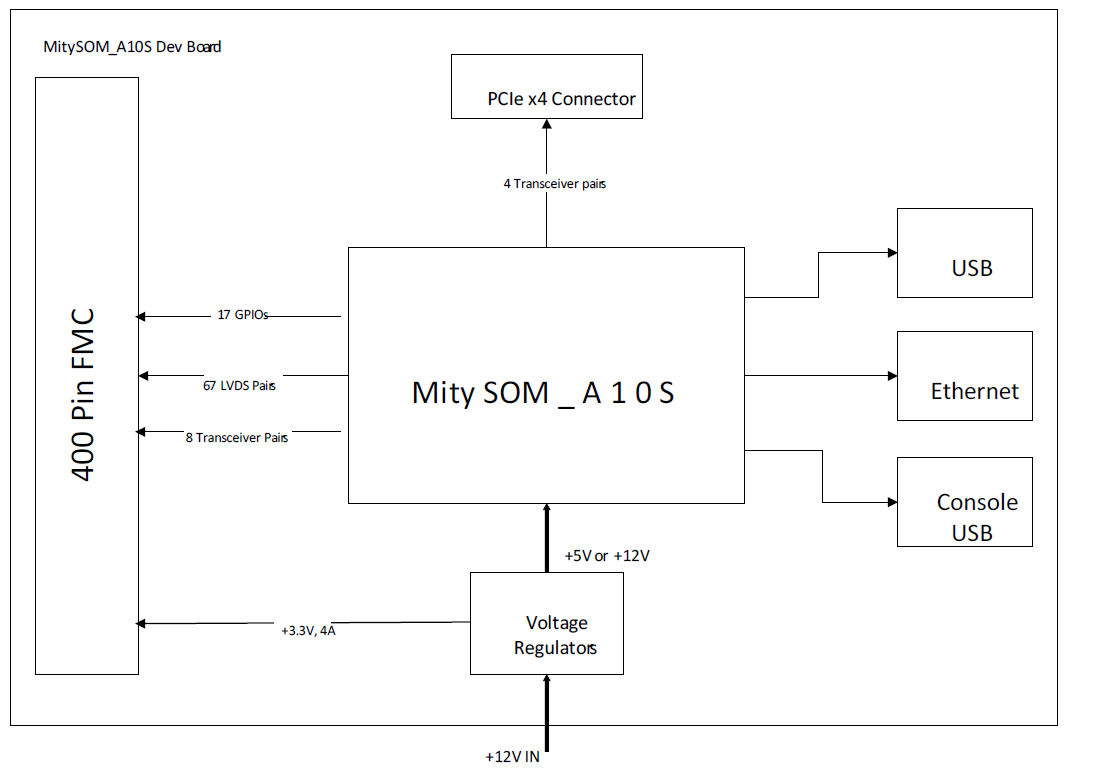

Interfaces	Features an array of interfaces and expansion headers such as FMC, USB 2.0 OTG, USB Console, PCI-e x4 Expansion Header, Gigabit Ethernet, and eMMC/SD Card.
Memory	2 banks DDR4 memory: 4GB HPS shared memory, 2GB FPGA memory
Connectors	Dual board-to-board connectors
Switches & LEDs	Power switch, other toggle switches, and numerous LEDs
Latest Quartus Version Supported	21.3.0
