MitySOM-C10G - Cyclone® 10 GX System on Module

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Critical Link LLC

Select

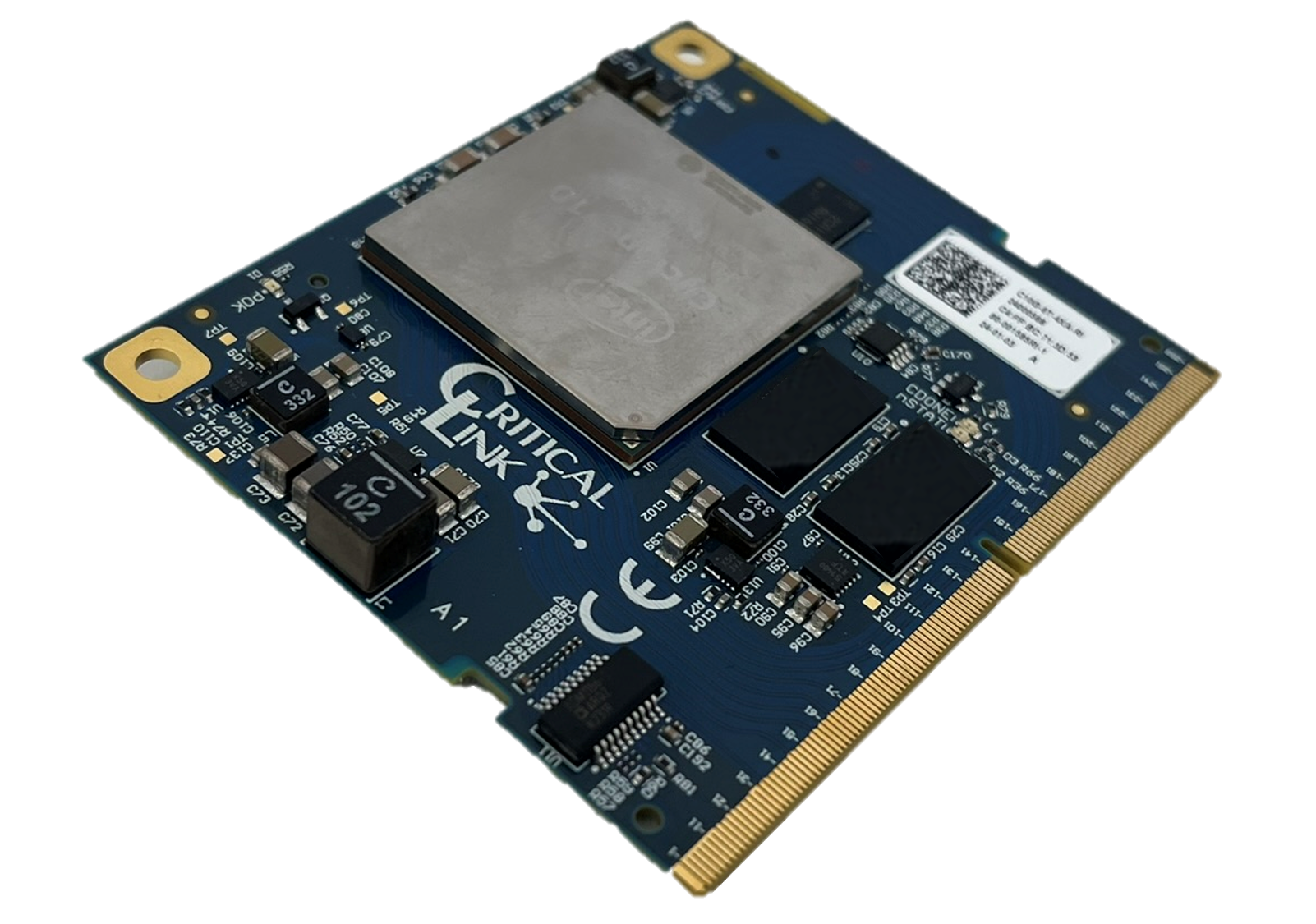

The MitySOM-C10G series of highly configurable, small form-factor System-on-Modules features an Altera Cyclone 10 GX field programmable gate array (FPGA) and include on-board power supplies, NOR FLASH and DDR3L memory subsystems. Using a NIOS II Softcore processor, the MitySOM-C10G provides a complete and flexible CPU infrastructure for a low cost integrated embedded system.

The MitySOM-C10G has been designed to support several upgrade options. These include various FPGA densities, speed grades, and operating temperature specifications (including commercial and industrial temperature ranges).

View Partner Website

Partner Product Page

Contact Now

Contact Critical Link LLC

LeadSource

ASAP Account ID

Record Type Name

Key Features

Production-ready SOM featuring a range of FPGA densities, memory configurations, and operating temperature ranges
Long term availability and product support
US-based engineering and production
Lifetime access to our technical support site, as well as access to application engineering resources and other services
Customers get access to Critical Link's development kit base board design files to jump start their own design
ISO 9001:2015 certified

Offering Brief

Device Family	Cyclone® 10 GX FPGA
Offering Status	Production
Device OPN(s) on Board	10CX105YF780I6G;10CX220YF780I6G

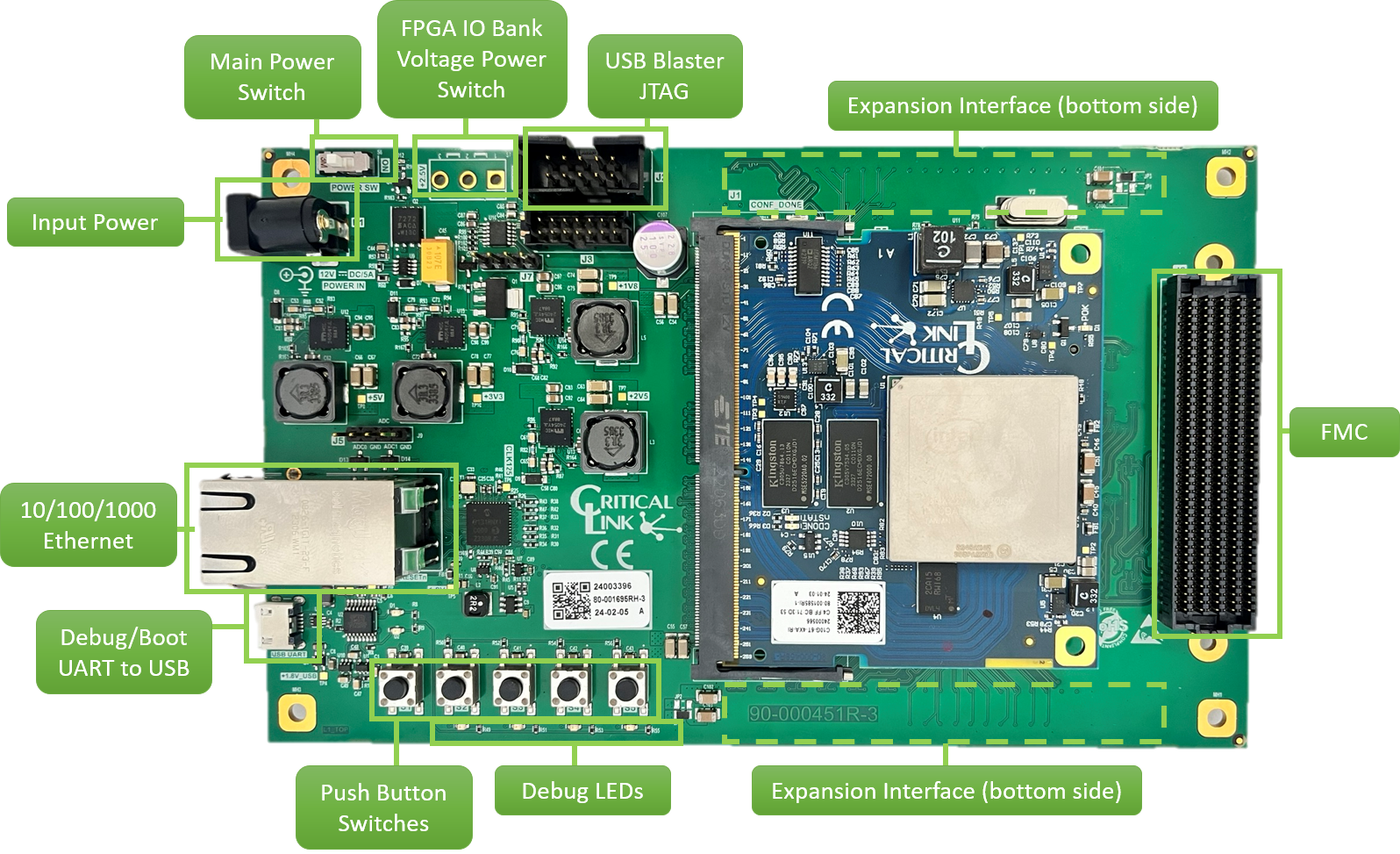

Hardware Platforms Supported	Cyclone® 10 GX FPGA Development Kit
Demo	No
Form Factor	2.75" x 2.4"
Power	Integrated Power Management: Single +5V Input for on-board needs; Bank IO Voltage Configured for 1.8V; Bank IO Reference Voltage at 0.9V

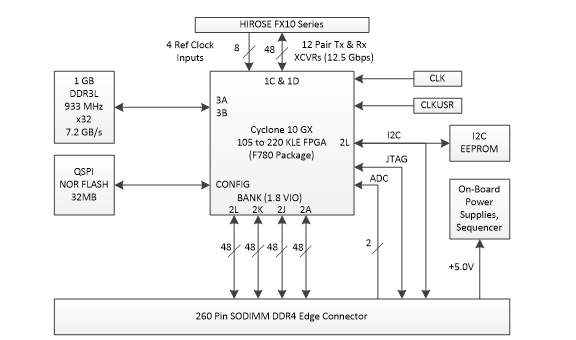

Interfaces	4 Banks of FPGA IO: 192 Direct Connect FPGA IO pins; 70 true LVDS pairs; 8 LVCMOS, LVDS, SSTL-18, and 1.8V HSTL IO standards supported 8 Clock Input Pins Up to 12 Transceiver Pairs: Speeds up to 12.5 Gbps; PCIe Gen2 x4 hard IP block; 4 Clock Inputs
Memory	Up To 1GB DDR3L at 7.45 GB/sec; Up To 32MB QPSI NOR FLASH
Connectors	260-pin SODIMM edge connector
Switches & LEDs	yes
Latest Quartus Version Supported	24.1.0
