This Development Kit supports Critical Link’s MitySOM-C10L and MitySOM-C10G modules, a family of system on modules designed around the Altera Cyclone® 10 LP or GX FPGA. These SOMs are production-ready solutions designed for long term availability and performance in industrial applications.

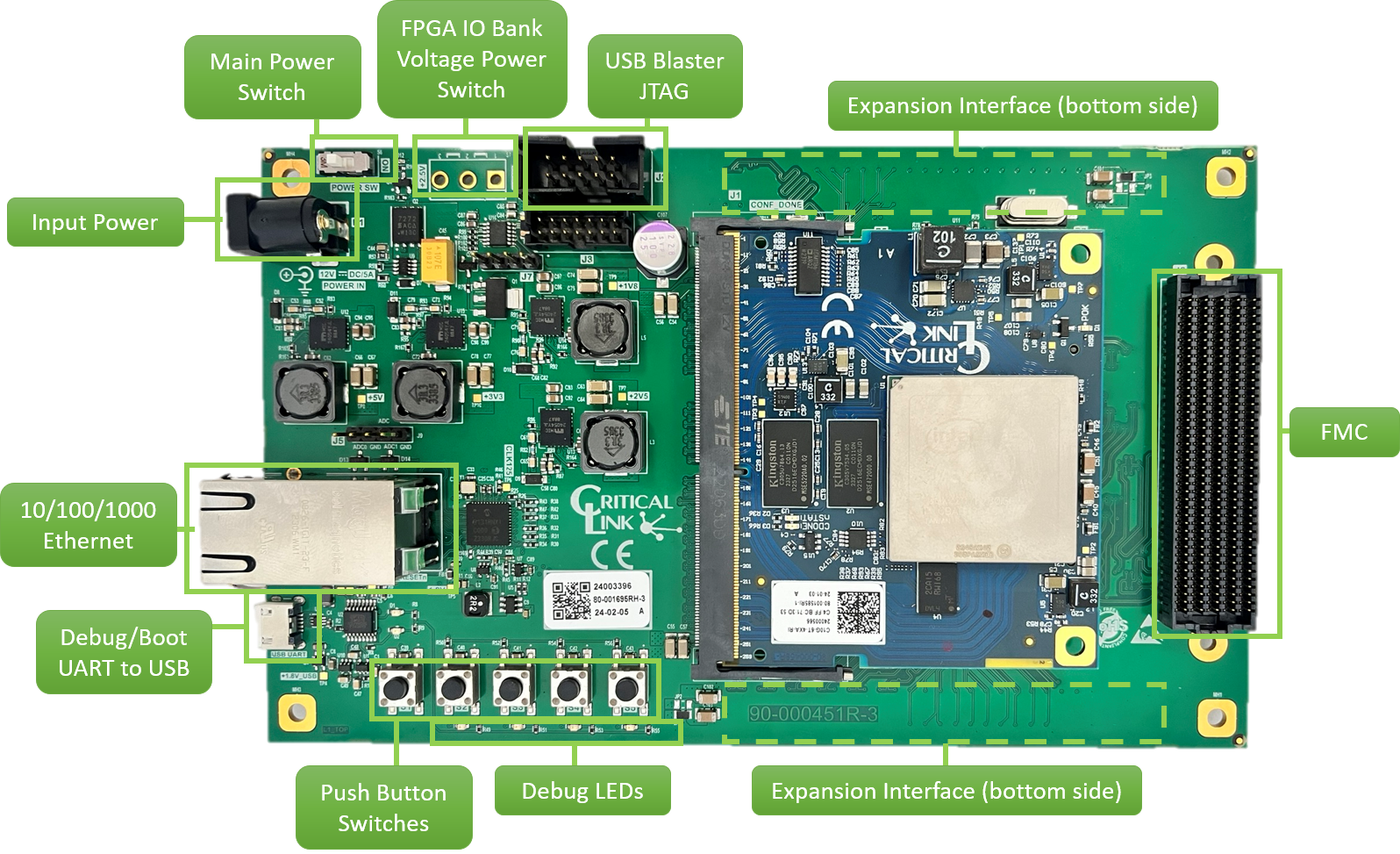

Each development kit includes a compatible MitySOM-C10L or MitySOM-C10G module and a base board that features on-board Debug UART to USB converter and 10/100/1000 Gb Ethernet communication interfaces, FMC HPC connector that is compatible with a wide range of existing add-on cards, and two 60-pin dual row connectors that provide additional IO expansion options. All powered from a single 12VDC input (adapter included) with onboard +3.3V/+5V/2.5V/1.8V power supplies. MitySOM-C10L development kits also include access to memory controller IP and reference designs from Synaptic Labs LLC.

View Partner Website

Partner Product Page

Contact Now

Contact Critical Link LLC

LeadSource

ASAP Account ID

Record Type Name

Key Features

Excellent out of box experience and easy transition to production for customers developing with Cyclone 10 LP or GX
Customers get access to Critical Link's development kit base board design files to jump start their own design
MitySOM-C10L/G is a production-ready SOM featuring a range of FPGA densities, memory configurations, and operating temperature ranges
Long term availability and product support
US-based engineering and production
Lifetime access to our technical support site, as well as access to application engineering resources and other services
ISO 9001:2015 certified

Offering Brief

Device Family	Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA
Offering Status	Production
Device OPN(s) on Board	10CX105YF780E5G;10CX105YF780E6G;10CX105YF780I5G;10CX105YF780I6G;10CX220YF780E5G;10CX220YF780E6G;10CX220YF780I5G;10CX220YF780I6G;10CL016YU484C8G;10CL040YU484C8G;10CL055YU484C8G;10CL080YU484C6G;10CL080YU484C8G
Demo	No

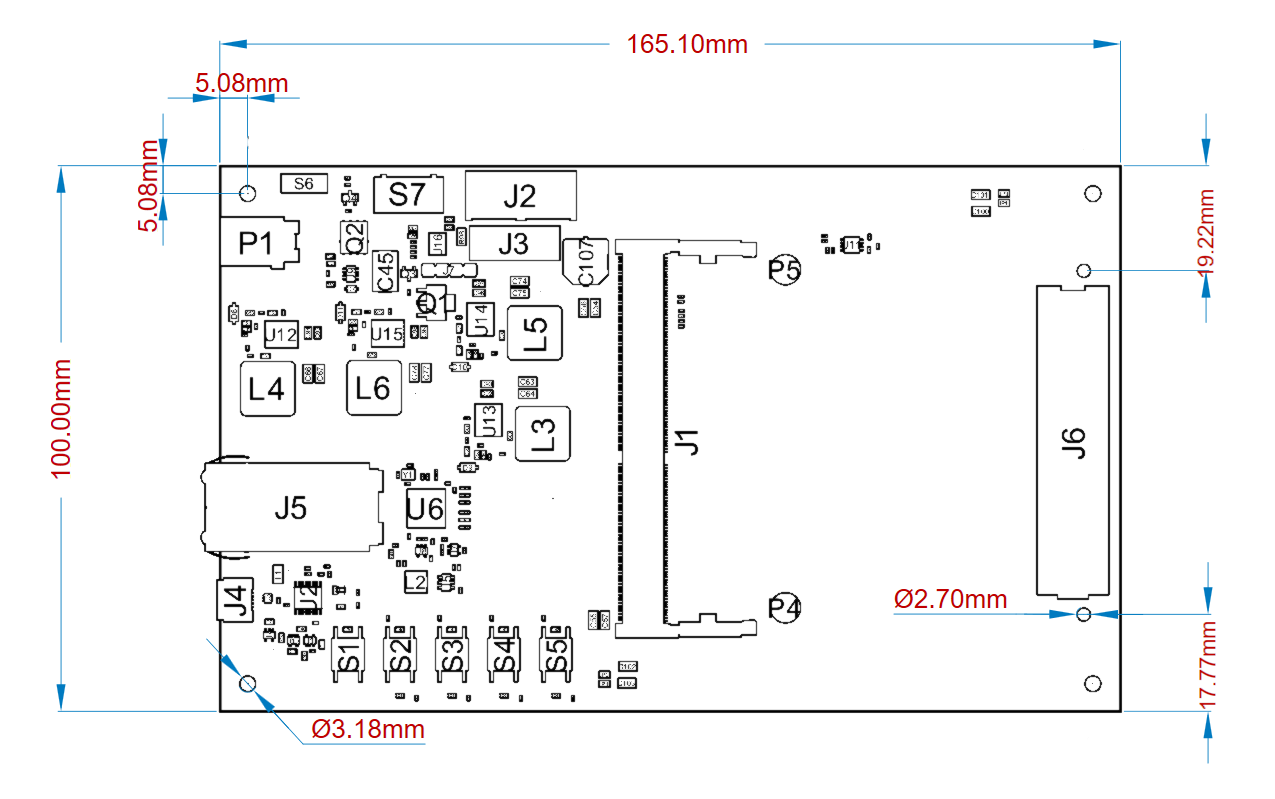

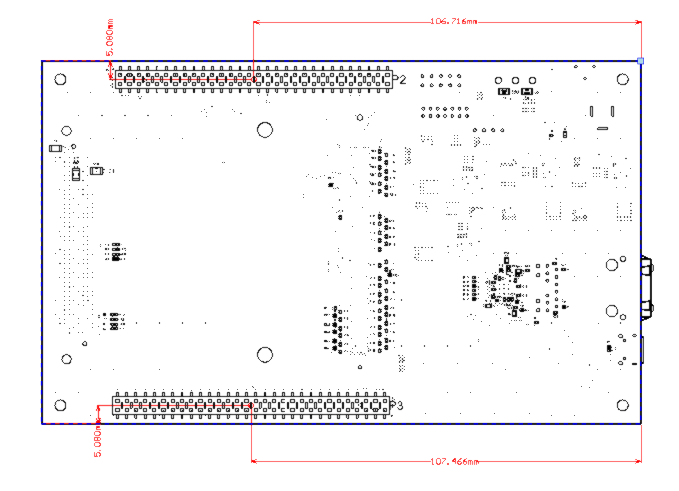

Form Factor	3.9" x 6.5"
Power	Integrated +2.5V/+3.3V/+5V Power Supplies
Interfaces	Features an array of interfaces such as 10/100/1000Gb Ethernet, FMC HPC connector that is compatible with a wide range of existing add-on cards, and two 60-pin dual row connectors that provide additional IO expansion options.
Memory	C10G SOM: Up To 1GB DDR3L at 7.45 GB/sec & 32MB QPSI NOR FLASH; C10L SOM:
Connectors	260-pin card edge connector + 144-pin board-to-board connector (C10G SOM only)
Switches & LEDs	Power switch, other toggle switches, and numerous LEDs
Latest Quartus Version Supported	24.1.0
