AES 256 XTS STG IP for NVMe Gen3

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

DesignGateway Co., Ltd.

Select

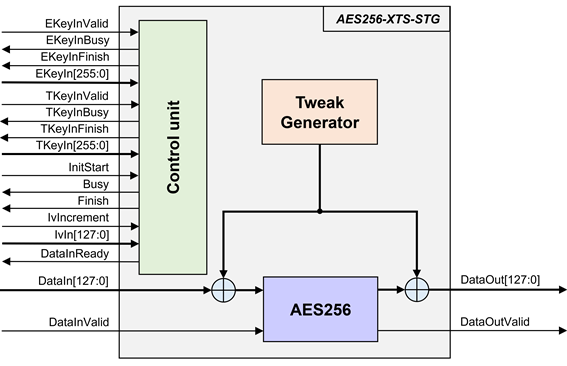

AES256-XTS-STG IP implements the advanced encryption standard (AES) with XEX (XOR Encrypt XOR) tweakable block cipher which operates sequences of complete blocks and is widely used in protecting the confidentiality of data on various storage devices with interfaces such as NVMe™ and SATA.

View Partner Website

Partner Product Page

Contact Now

Contact DesignGateway Co., Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

High-speed data transfer and real-time encryption/decryption up to 4.4 GB/s
Optimized for PCIe Gen3 NVMe SSD applications
Ideal for data security in mission-critical environments like industrial and military applications
Ensures secure data recording with AES-XTS encryption technology
Proven encryption performance for secure storage

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	No

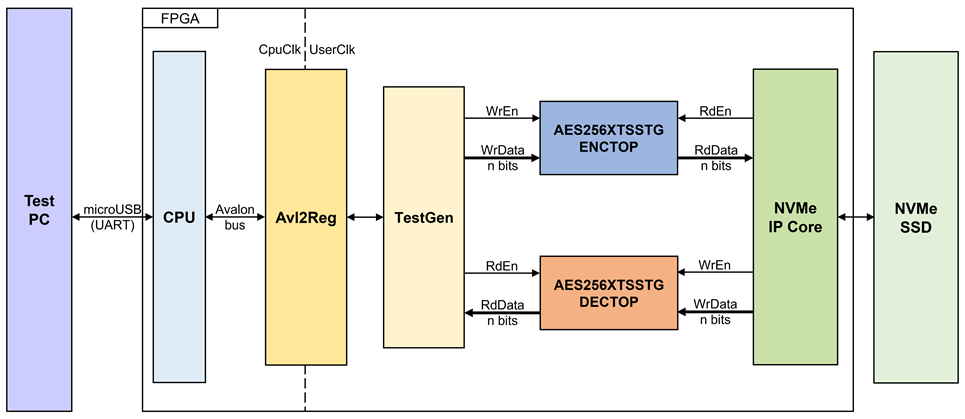

Design Examples Available	Yes
Demo	Yes
Compliance	No
Hardware Platforms Supported	Arria® 10 SX SoC Development Kit
Latest Quartus Version Supported	23.1.0
Development Language	Encrypted VHDL
