AES 256 XTS STG 4X IP for NVMe Gen5

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

DesignGateway Co., Ltd.

Select

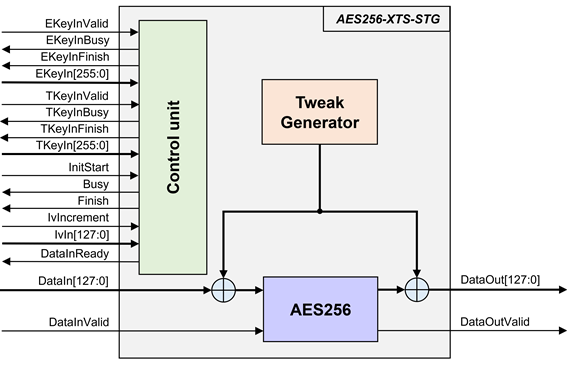

AES256-XTS-STG-4X IP implements the advanced encryption standard (AES) with XEX (XOR Encrypt XOR) tweakable block cipher which operates sequences of complete blocks and is suitable for protecting the confidentiality of data on NVMe™ Gen5 storage devices.

View Partner Website

Partner Product Page

Contact Now

Contact DesignGateway Co., Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

High-speed data transfer and real-time encryption/decryption up to 25.6 GB/s
Optimized for PCIe Gen5 NVMe SSD applications
Ideal for data security in mission-critical environments like industrial and military applications
Ensures secure data recording with AES-XTS encryption technology
Proven encryption performance for secure storage

Offering Brief

Device Family	Agilex® 7 FPGAs and SoC FPGAs I-Series
Offering Status	Production
Integrated Testbench	No
Evaluation License	No
Design Examples Available	Yes
Demo	Yes
Compliance	No
Latest Quartus Version Supported	23.1.0
Development Language	Encrypted VHDL
