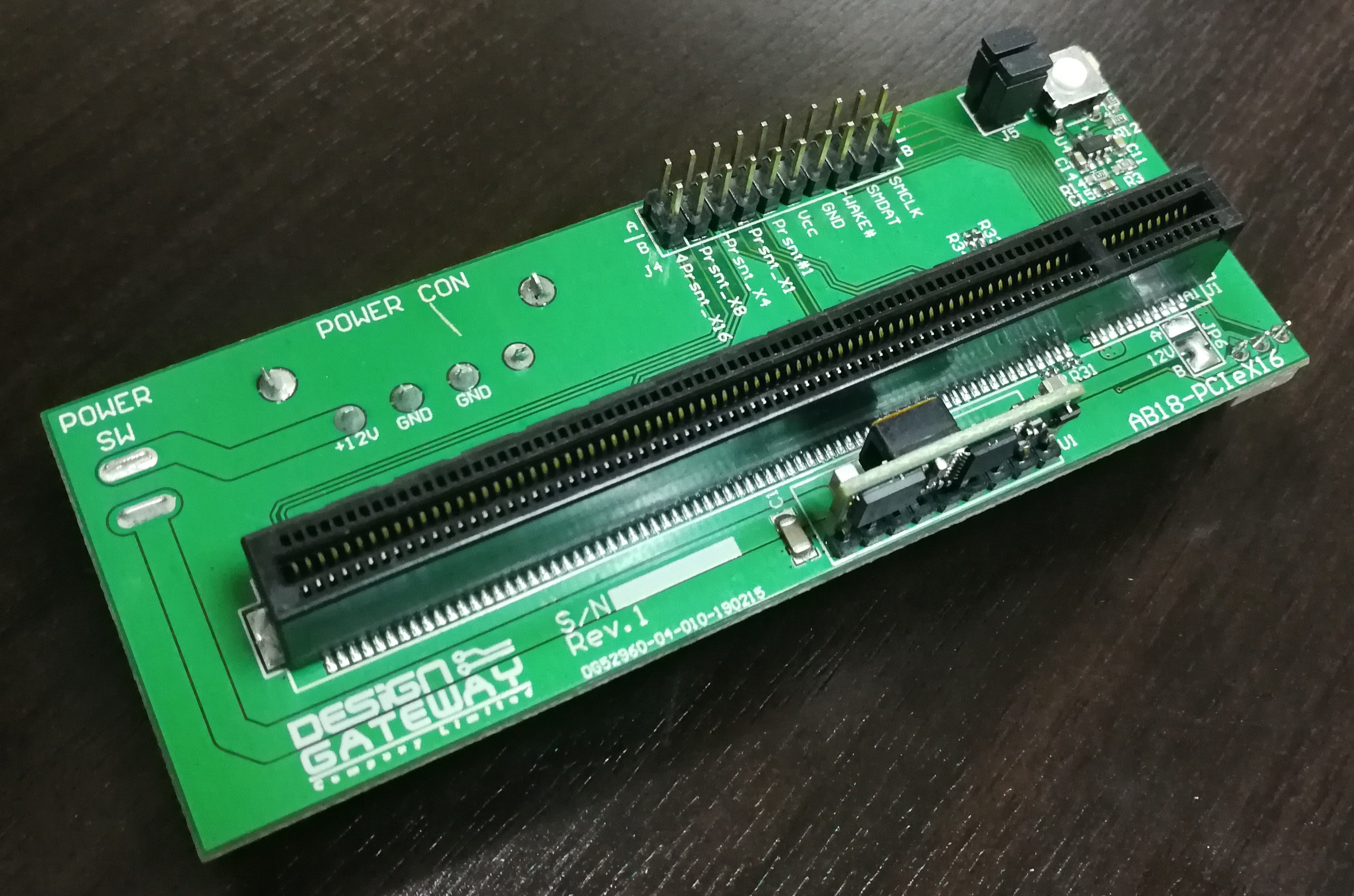

PCIe x16 Lanes Crossover adapter board for NVMe SSD (AB18-PCIeX16)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

DesignGateway Co., Ltd.

Select

This adapter board supports 1/4/8/16-lane PCIe (PCI Express) and enables conversion between PCIe host and PCIe device. It is compatible with Altera FPGA evaluation boards. The board features two 16-lane PCIe socket connectors—one for connecting to an FPGA board and the other for connecting to an NVMe SSD—with TX and RX pairs internally cross-connected.

View Partner Website

Partner Product Page

Contact Now

Contact DesignGateway Co., Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Daughter (Adapter) Card with two 16-lane PCIe sockets
Supports PCIe Gen4 with 16/8/4/1-lane for host and device side connections.
Includes low-jitter reference clock (100MHz default) for stable operation.

Offering Brief

Device Family	Stratix® 10 GX FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series
Offering Status	Production
Device OPN(s) on Board	1SG280HU2F50E2VG;AGFB014R24B1E1V;10CX085YF672E5G;A5ED065BB32AE5SR0
Form Factor	16-lane PCI Express interface
Power	+12V ATX power supply
Interfaces	Two 16-lane PCI Express interfaces
Memory	NA
Connectors	16-lane PCI Express interface
Switches & LEDs	Power Switch & Power LED
Latest Quartus Version Supported	23.1.0
