M.2-FMC Adapter Board for NVMe SSD (AB17-M2FMC)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

DesignGateway Co., Ltd.

Select

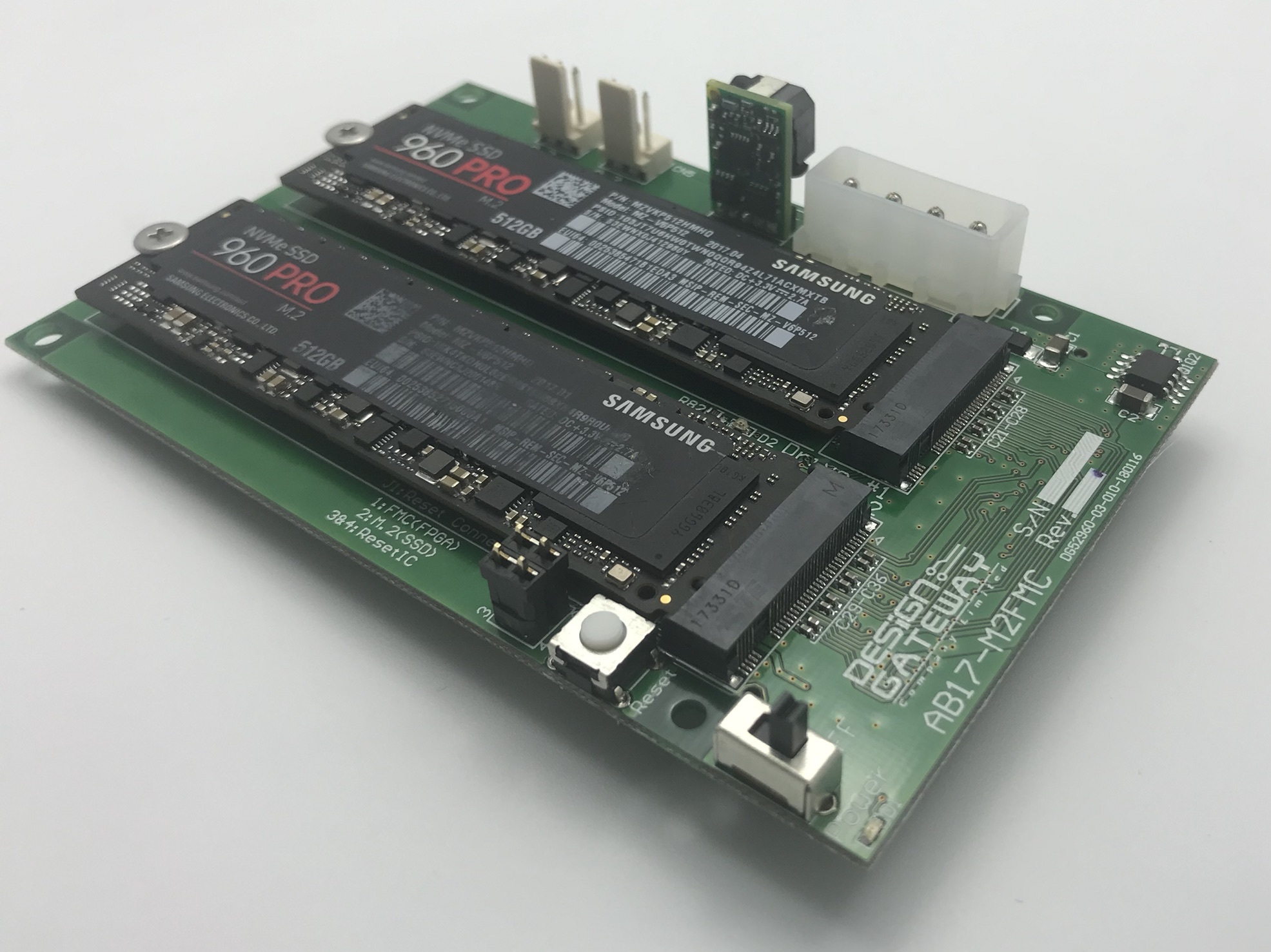

The AB17-M2FMC is a versatile M.2 to FMC adapter board designed for seamless integration with NVMe SSDs. This adapter allows users to connect up to two M.2 NVMe SSDs (2280-size or smaller) and is ideal for applications requiring high-performance data storage solutions, including NVMe RAID configurations. The adapter supports flexible power options, including FMC 12V or auxiliary ATX power supply, and features a low-jitter reference clock to ensure reliable operation. Perfect for high-speed storage applications, the AB17-M2FMC enables efficient two-channel RAID setup, providing a robust solution for data-intensive systems. It’s an excellent choice for developers looking to evaluate or deploy NVMe SSDs with Altera FPGA platforms.

View Partner Website

Partner Product Page

Contact Now

Contact DesignGateway Co., Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Supports connection of 2 M.2 NVMe SSDs (2280-size or smaller).
Compatible with FPGA evaluation boards and SSDs.
Includes low-jitter reference clock (100MHz default) for stable operation.
Power supplied via FMC 12V or auxiliary ATX source.
On-board power control switch for flexibility.

Offering Brief

Device Family	Stratix® 10 GX FPGA
Offering Status	Production
Device OPN(s) on Board	1SG280HU2F50E2VG
Form Factor	HPC (High Pin Count) FMC
Power	+12V ATX power supply
Interfaces	HPC (High Pin Count) FMC, two 4-lane PCIe standard M.2 interfaces
Memory	NA
Connectors	HPC (High Pin Count) FMC
Switches & LEDs	Power Switch & Power LED
Latest Quartus Version Supported	23.1.0
