HawkEye-CXP12: CoaXPress-12 Frame Grabber & Image Processing

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Gidel

Select

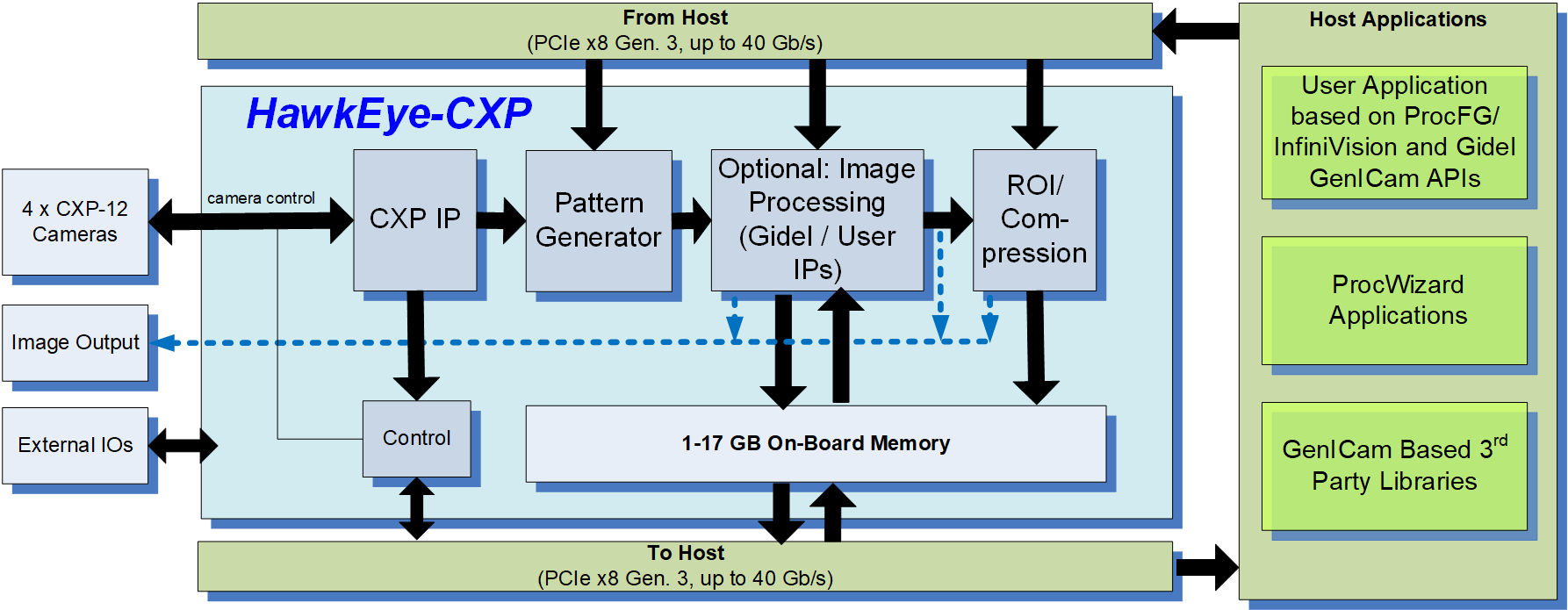

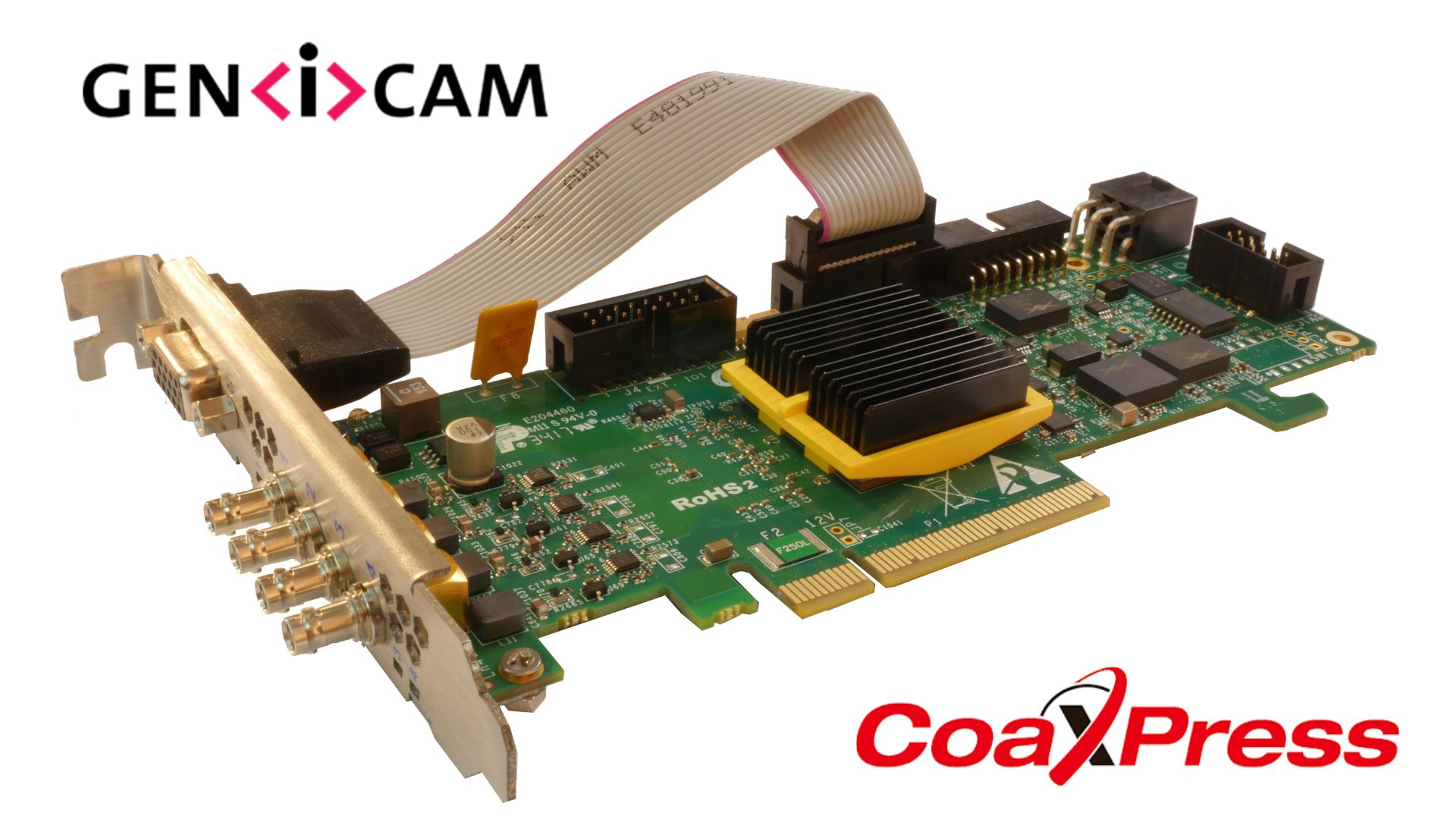

The HawkEye-CXP12 is a 4 x CoaXPress-12 Frame Grabber card with option for real-time image processing and compression. The card is supported by off-the-shelf modular building blocks for embedding in the acquisition pipeline, including HDR, white balance, gamma correction, compression (JPG, lossless, Quality+), and more. It is also supported by Gidel's InfiniVision acquisition architecture, optimized for grabbing from 100 + cameras

View Partner Website

Partner Product Page

Contact Now

Contact Gidel

LeadSource

ASAP Account ID

Record Type Name

Key Features

Grabbing from up to 4 x CoaXPress-12/6 cameras
Supports CoaXPress 2.1
Ideal for Recording & Streaming solutions
Inline Image Processing option
On-FPGA real-time Compression (Quality+, .jpg, lossless) Option
Real-Time High Dynamic Range (HDR) correction option
Supports 100+ synchronized cameras using the InfiniVision
On Board Memory: up to 17 GB
Passive cooling | Active cooling (fan)

Offering Brief

Device Family	Arria® 10 GX FPGA
Offering Status	Production
Device OPN(s) on Board	10AX016E3F29E2SG;10AX048E4F29E3SG
Demo	No
Form Factor	Low-profile PCIe card (Gen. 3x 8)
Power	5-32W: Depends on user application and FPGA Type
Interfaces	4x CoaXPress-CXP12/6 2x CoaXPress-12/6 1x CoaXPress-12/6 PoCXP
Memory	256MB
Connectors	1, 2, 4x HD-BNC \| JTAG \| VGA15-pin for connecting GPIO's to the bracket \| 16-pin board-to-board header
Switches & LEDs	power, status LEDs
Latest Quartus Version Supported	20.4.0
