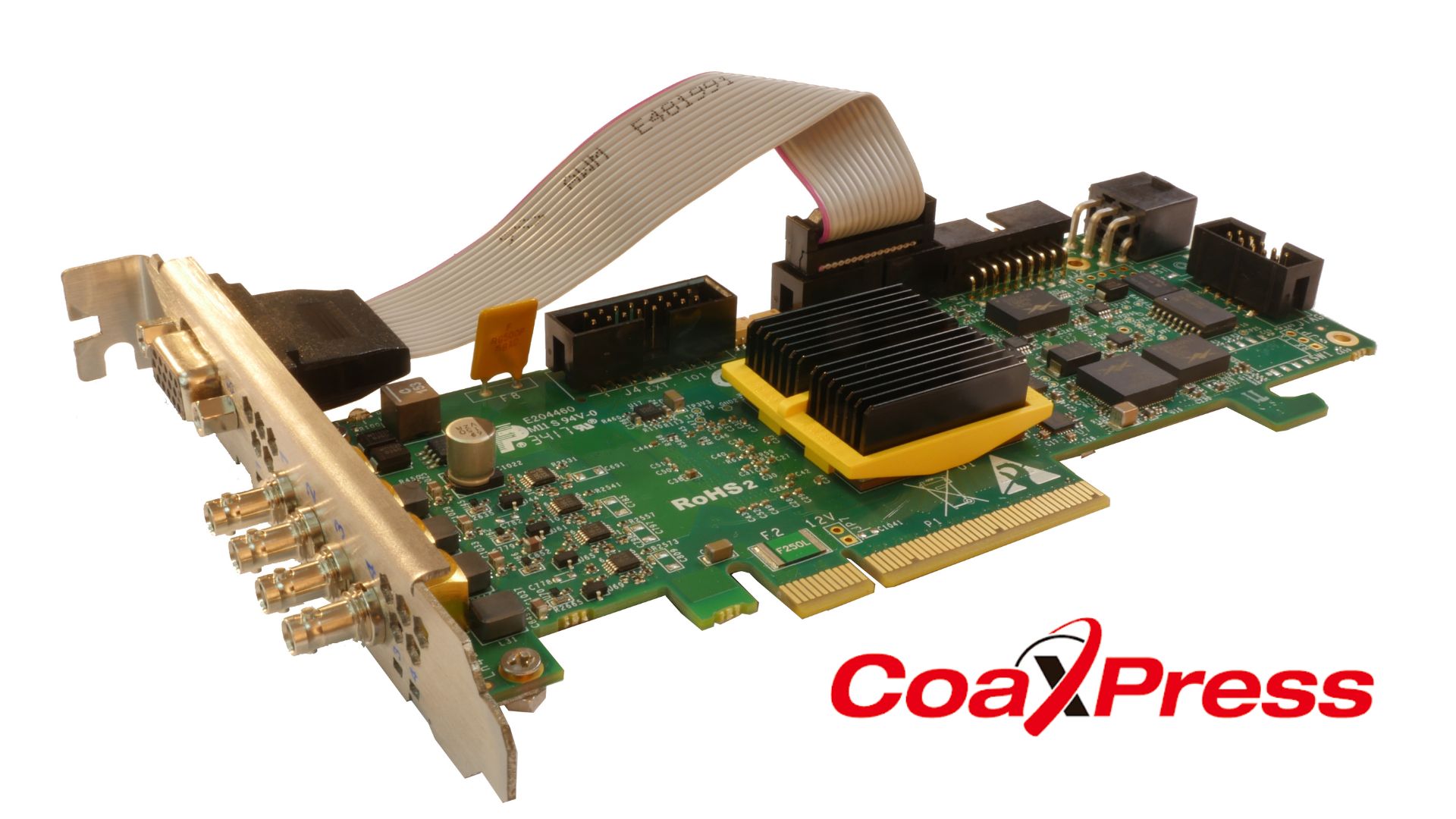

CamSim-CXP: CoaXPress Camera Simulator

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Gidel

Select

The CamSim-CXP™ is a flexible, high-performance camera simulator that generates CoaXPress video streams and test patterns for testing frame grabbers or vision/imaging systems. The system supports all CoaXPress configurations and is supported by a GUI and API suite. Gidel’s CamSim data flow repetition capability ensures that users validate algorithms and confirm they work as expected with pertinent input. Moreover, once developers detect a rare bug, they can accurately reconstruct the respective data flow to locate and quickly fix the bug.

View Partner Website

Partner Product Page

Contact Now

Contact Gidel

LeadSource

ASAP Account ID

Record Type Name

Key Features

Simulates all CoaXPress pixel formats
Supports BMP and RAW input image files
Ideal for testing tailored designs developed on Gidel’s customizable Frame Grabbers and Jetson Edge Computer
Pattern generator for transmitting color and grayscale test patterns
Fully programmable image timing and data parameter configuration via user-friendly GUI
API methods for developing user simulator applications
User-configurable Camera Control (CC) lines for triggering options

Offering Brief

Device Family	Arria® 10 GX FPGA
Offering Status	Production
Device OPN(s) on Board	10AX016E3F29E2SG;10AX048E4F29E3SG
Form Factor	Low-profile PCIe card (Gen. 3x 8)
Power	5-32W: Depends on user workflow and FPGA Type
Interfaces	4x CoaXPress-CXP12/6 2x CoaXPress-12/6 1x CoaXPress-12/6 PoCXP
Memory	256MB
Connectors	2x SDR26 \| JTAG \| VGA15-pin for connecting GPIO's to the bracket \| 16-pin board-to-board header
Switches & LEDs	power, status LEDs
Latest Quartus Version Supported	20.4.0
