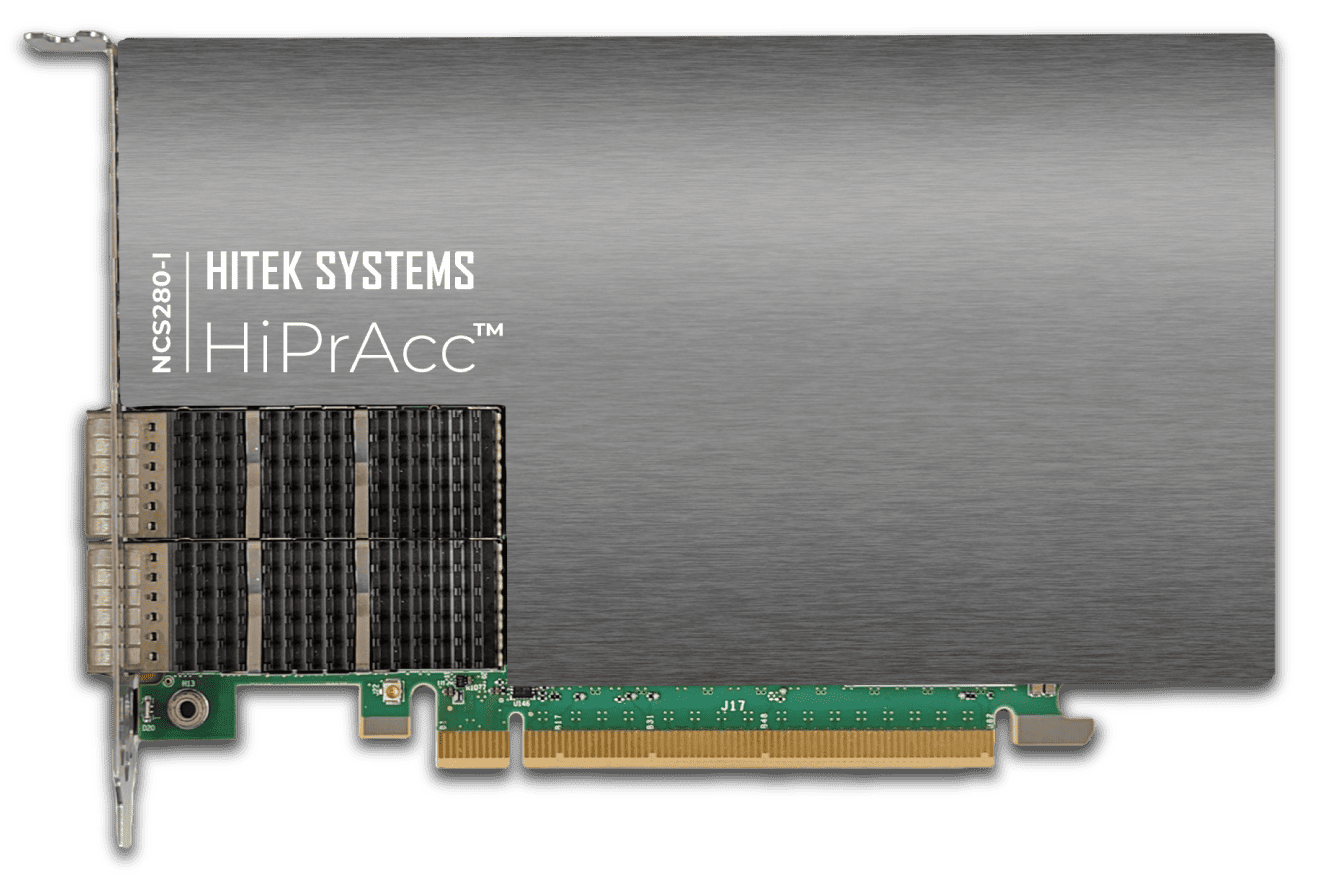

HiPrAcc™ NCS280-I CXL/PCIe Gen5 Accelerator

Hitek Systems LLC

Member

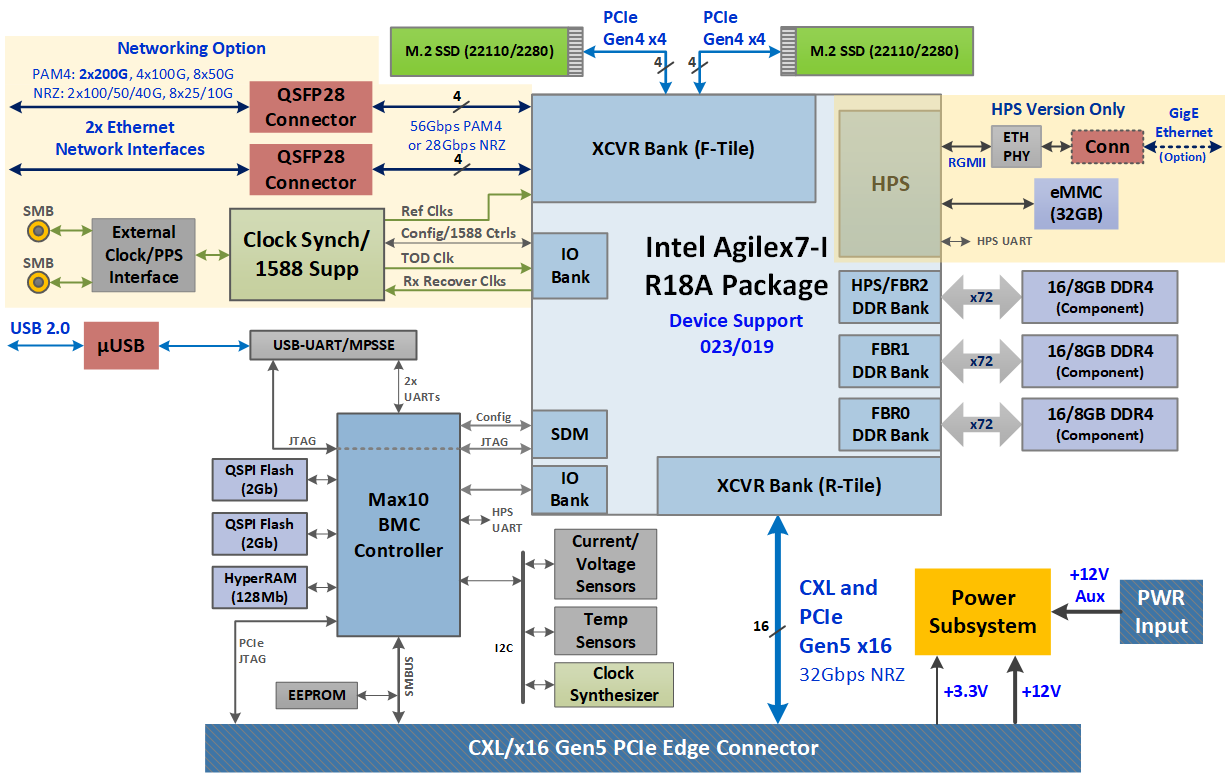

This high-performance, CXL/PCIe 5.0-capable accelerator card features an Agilex™ 7 FPGA with up to p to 2x 200Gbps/100Gbps or 8x 50G/25G/10G networking interface and two on-card Gen4 x4 M.2 NVMe SSDs (22110 or 2280). Card supports 48GB of DDR4 memory, Agilex™ ARM HPS with GiGE networking interface and a flexible clocking architecture with integrated PTP/1588 network synchronization support — all within a "half-length", single-slot PCIe profile.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

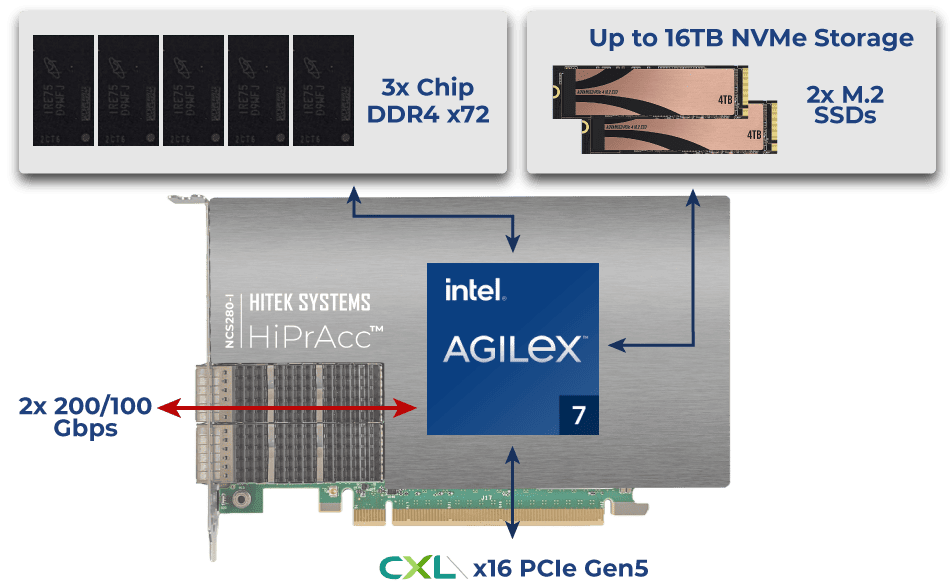

Key Features

  • FPGA: Agilex™ 7 I-Series FPGA (AGI019/023)
  • Processor: Quad-core Arm® Cortex®-A53
  • PCIe Form Factor: FHHL, single slot
  • Network Interface: 2× QSFP28 (up to 2 × 200G/100G or 8x 50G/25G/10G)
  • Host Interface: PCIe Gen5 x16, CXL
  • On-card storage: Up to 2× Gen4 M.2 NVMe on-card SSDs, 22110 and 2280
  • Memory: 48GB DDR4 memory, 3x 16GB, 72-bit, 3200MT/s banks
  • MA10M50 based BMC (RTL and OFS versions)
  • GIGE HPS Ethernet and unified USB 2.0 debug interface with integrated Blaster3
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 7 FPGAs and SoC FPGAs I-Series
Offering Status Production
Device OPN(s) on Board AGID023R18A1E1V;AGID023R18A1E2V;AGID023R18A1E1VB;AGID023R18A1E2VB;AGID023R18A1E2VC;AGID023R18A1E1VC
Demo No
Form Factor 6.6" x 4.37"
Power Up to 75W card load with edge power. Up to 100W card load with Auxiliary 6-pin power connector
Interfaces - 512Gbps CXL (Compute Express Link) or x16 PCIe Gen5
- 2x 200G/100G or 8x 50G/25G/10G Ethernet
- Dual PCIe x4 Gen4 M.2 NVMe
- Unified USB debug interface with on-card Blaster3 and UARTs
- GiGE HPS interface
- External REFCLK and PPS interfaces
Memory 32GB eMMC, Dual 2GB QSPI
Connectors x16 Gen5 PCIe card edge Interface, 2x QSFP28, 2x M.2, micro-USB 2.0, IX, Coaxial
Switches & LEDs DIP switch for lab development, multi-color status LED
Latest Quartus Version Supported 25.1.0

PCIe card with passive heat sink, option for active cooling for development

BSP, RTL and OFS flow

Example designs

User guides and detailed how-to documentation

Mounting hardware for 22110 and 2280 M.2 SSDs
