HiPrAcc™ NCS200 Networked Computational Storage Card

Hitek Systems LLC

Member

This FPGA acceleration card features an Agilex™ 7 FPGA with E-tile based transceivers supporting up to 28Gbps NRZ and 57.8Gbps PAM4, a x16 PCIe Gen4 host interface via P-Tile and four on-card x5 PCIe Gen4 M.2 NVMe SSDs via P-Tile, all on a GPU profile PCIe card. Card supports a flexible clocking architecture with support for PDTP/1588 protocol and external clock and PPS reference interface. Module is supported with two robust development flows, RTL flow and OFS/oneAPI flow for development.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

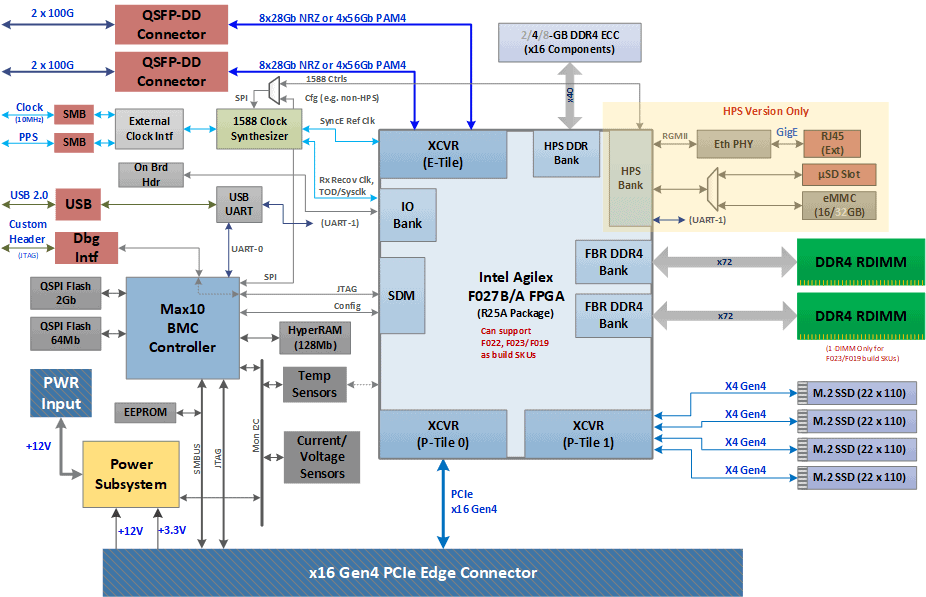

Key Features

  • FPGA: Agilex™ 7 F-Series FPGA (AGF027 with 019/022/023 options)
  • PCIe Form Factor: Full Height, 3/4 Length, dual slot Width
  • Network Interface: E-Tile, Two QSFP-DD ports (up to 4× 100G Ethernet)
  • Host Interface: P-Tile, PCIe Gen4 x16
  • On-Card Storage: P-Tile, Four PCIe Gen4 x4 M.2 NVMe SSDs (22110 and 2280)
  • Two DDR4 UDIMM/RDIMM/LRDIMM slots
  • ARM HPS complex with dedicated 4GB DDR4, 16GB eMMC and GiGE network interface
  • PTP/1588 network synchronizer with extrenal REFCLK and PPS interfaces
Expand Close

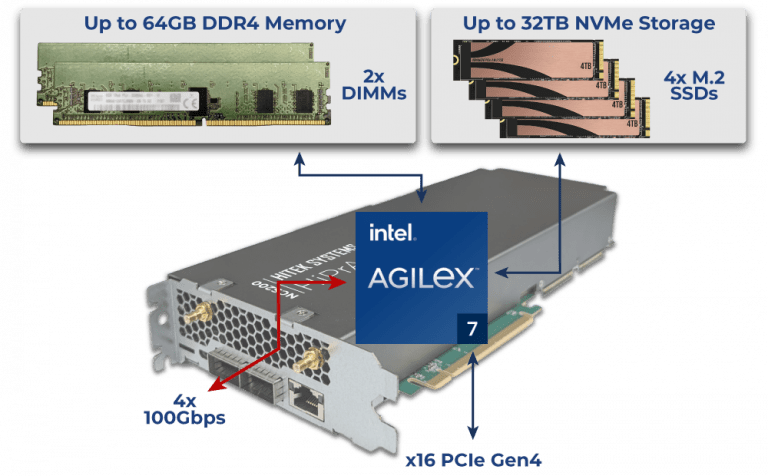

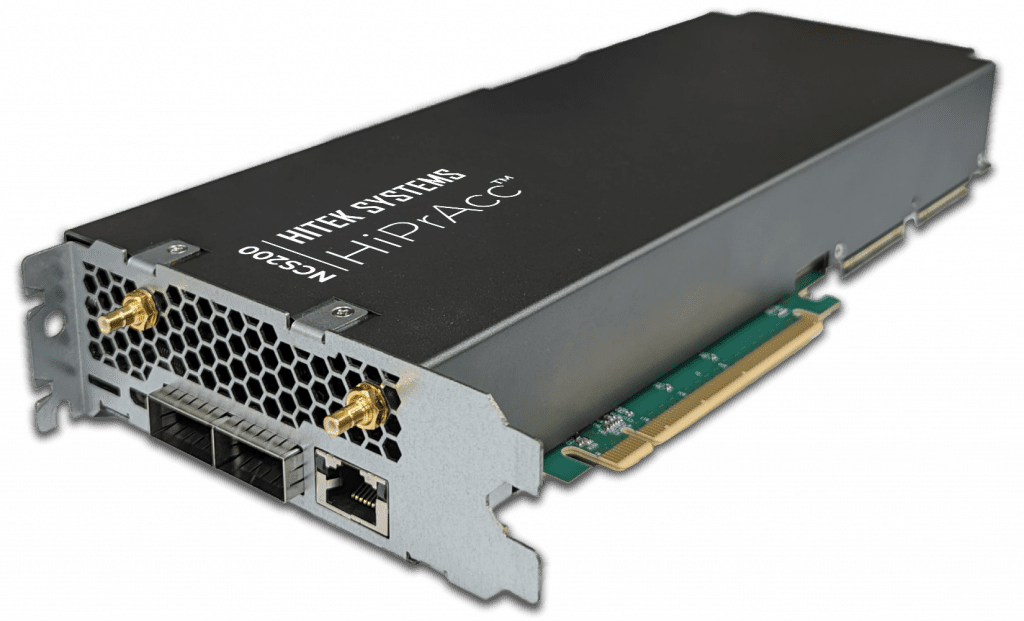

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 7 FPGAs and SoC FPGAs F-Series
Offering Status Production
Device OPN(s) on Board AGFB022R25A2E2V;AGFB027R25A2E2V;AGFD023R25A2E2V;AGFD019R25A2E2V
Demo No
Form Factor Length 266.7mm, Height 111.15mm
Power Up to 300W card load, 75W from the PCIe edge connector and up to 225W from the auxiliary 8-pin CPU/GPU (EPS) connector
Interfaces P-Tile based x16 Gen4 PCIe host interface.
E-Tile based 4x 100G/50G/40G or 16x 25G/10G Ethernet
External synchronization/clock
HPS GiGE and USB/UART console
JTAG debug port
Memory 16/32GB onboard eMMC for HPS
Connectors x16 Gen4 PCIe card edge Interface, Dual QSFP-DD Network Interfaces, Dual SMB, micro USB
Switches & LEDs DIP switch for lab development, multi-color status LED
Latest Quartus Version Supported 25.1.0

PCIe card with passive heat sink

Two BSPs: RTL based flow and OFS/oneAPI flow

Example designs

User guides and detailed how-to documentation

Ordering Information

AGF-NCS200-B72-01

from Direct

Order Now
