HiPrAcc™ CS200D Dual-Agilex™ Computational Storage Module

Hitek Systems LLC

Member

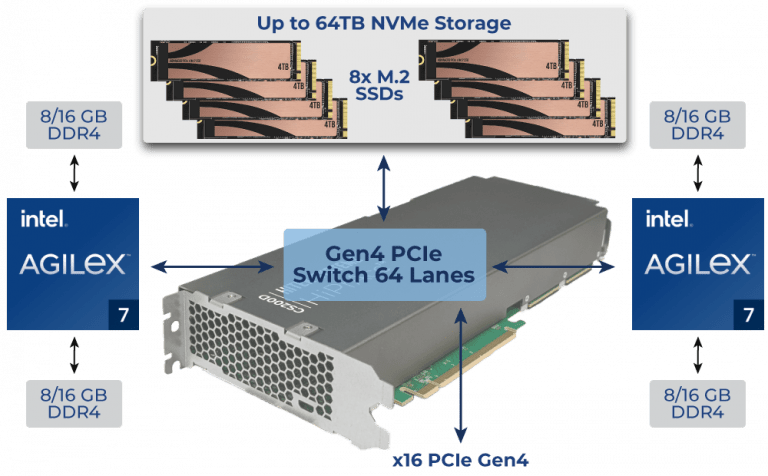

Highest performance GPU profile PCIe Computational Storage Accelerator card with two Intel Agilex AGF027 FPGAs. Card supports up to 64TB of on-card PCIe Gen4 NVMe storage (Eight x4 M.2 SSDs). Two high performance FPGA processing nodes and SSDs are interconnected via an integrated 64 lanes Broadcom PCIe Gen4 switch.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • FPGA: Agilex™ 7 F-Series FPGA (2x AGF027/AGF022)
  • PCIe Form Factor: Full Height, 3/4 Length, dual slot Width
  • Host Interface: PCIe Gen4 x16
  • Memory: 32GB per FPGA. Two banks of 16GB DDR4 per node
  • Storage: Supports up to eight on-vard x4 PCIe Gen4 M.2 NVMe SSDs (22110 and 2280)
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 7 FPGAs and SoC FPGAs F-Series
Offering Status Production
Device OPN(s) on Board AGFA022R25A2E2V;AGFA027R25A2E2V
Demo No
Form Factor Length 266.7mm, height 111.15mm
Power Up to 300W card load with 75W from the PCIe edge connector and 225W from the auxiliary 8-pin CPU/GPU (EPS) connector

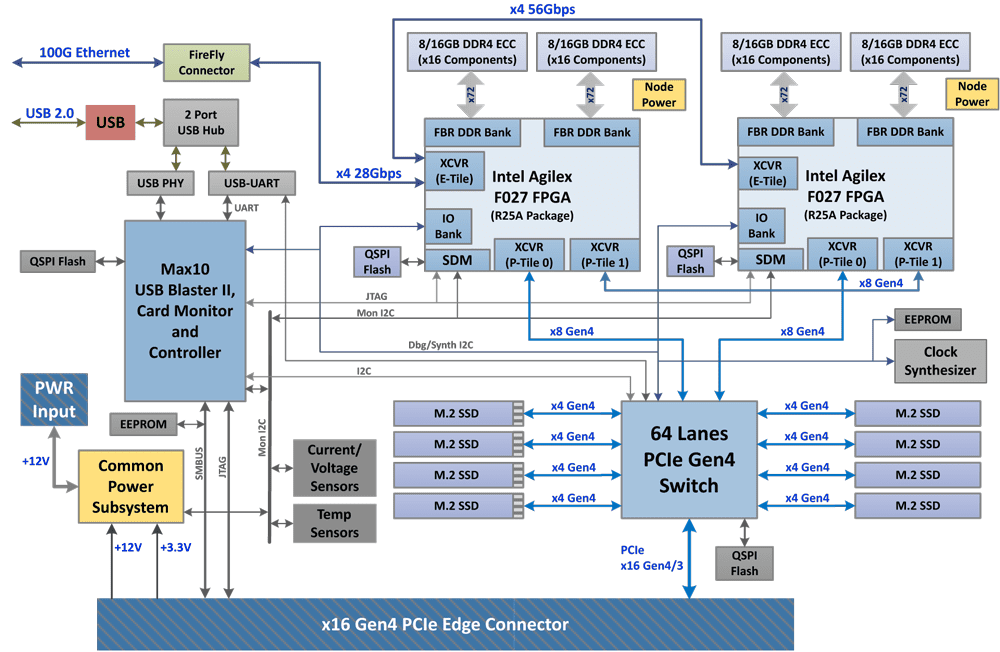

Interfaces - P-Tile. x16 PCIe Gen4 edge interface to the Broadcom PCIe switch
- Up to eight x4 Gen4 PCIe M.2 NVMe SSDs connected to the Broadcom PCIe switch
- Optional Firefly interface for Networking
Memory 2GB QSPI for each FPGA
Connectors x16 Gen4 host PCIe edge connector. USB2.0 debug connector
Switches & LEDs DIP switch for lab development, multi-color status LED
Latest Quartus Version Supported 25.1.0

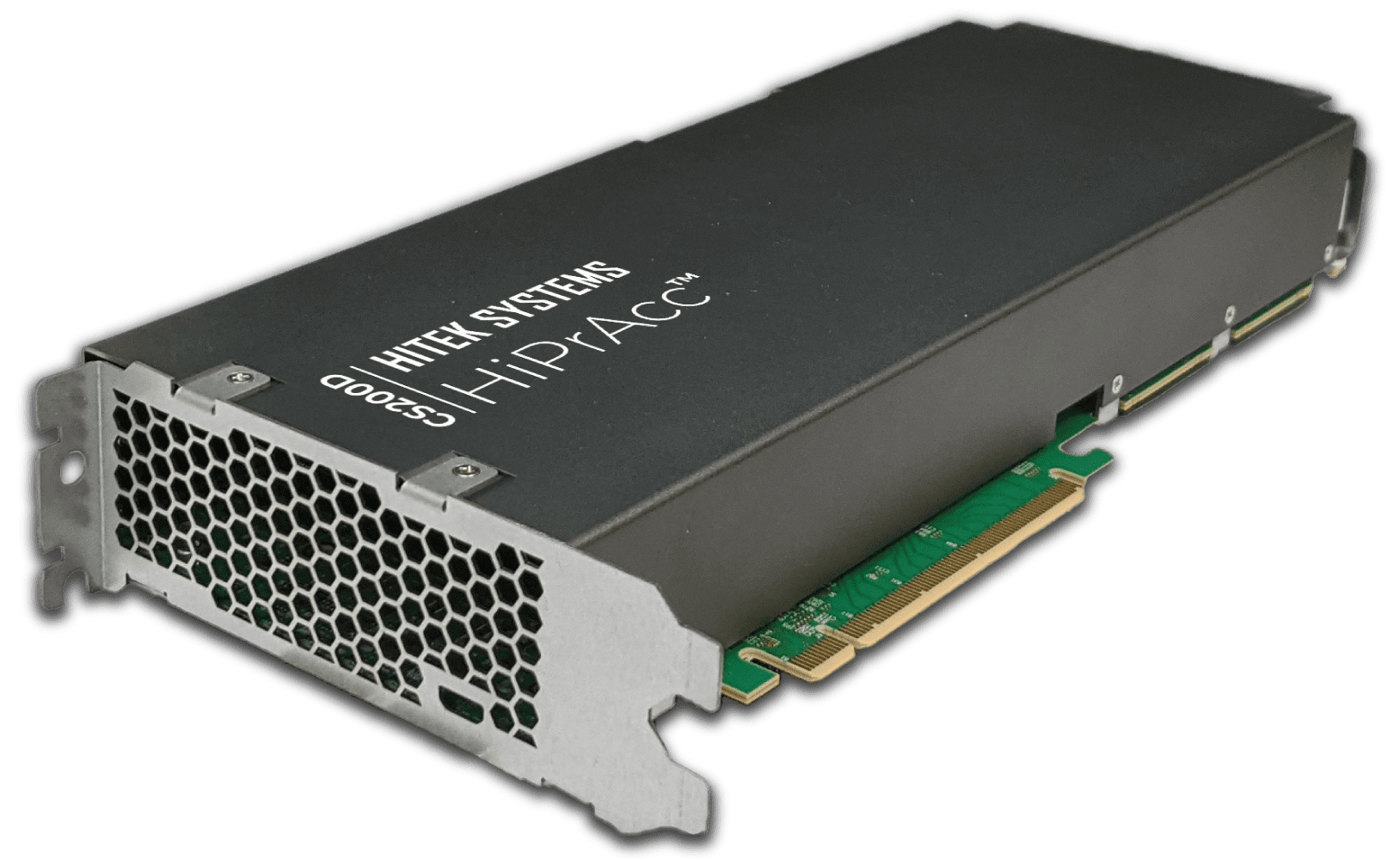

PCIe card with passive heat sink and M.2 SSD carriers

BSP with RTL design flow

Example designs

User guides and detailed how-to documentation

Ordering Information

AGF-CS200D-A72-01

from Direct

Order Now
