HiPrAcc™ NC220 Low Profile PCIe Accelerator Card

Hitek Systems LLC

Member

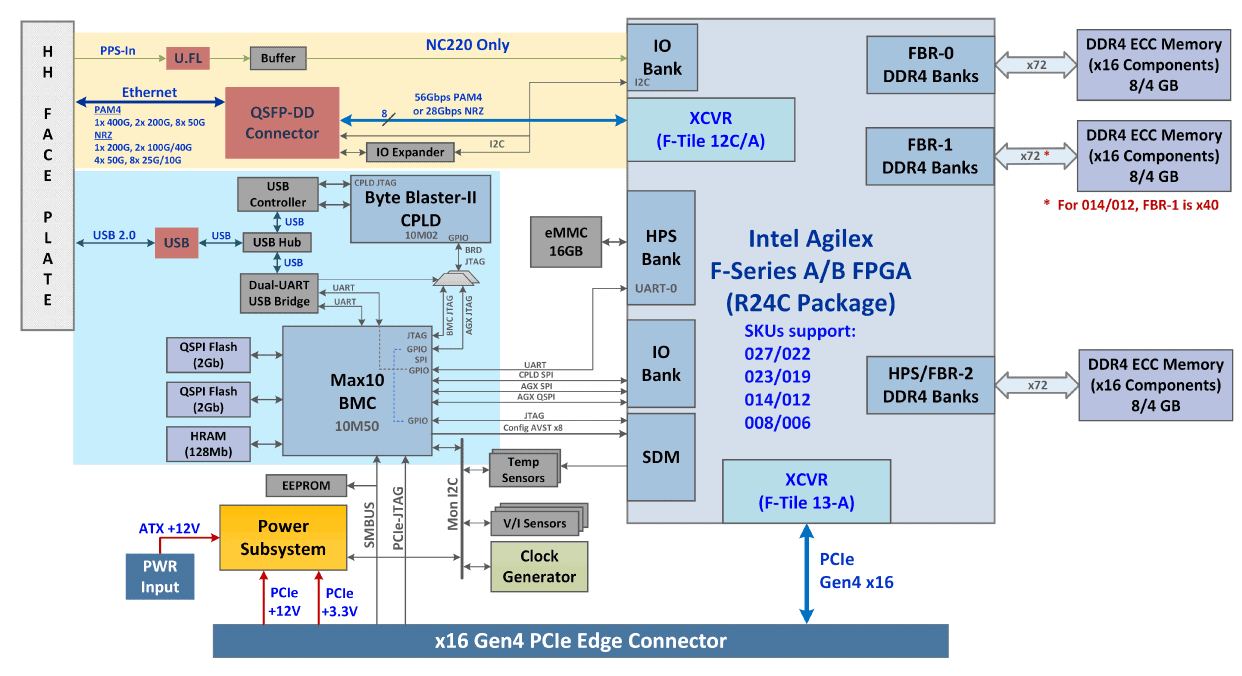

Low-profile, high-performance PCIe accelerator card for data centers and edge AI, offering up to 400 Gbps Ethernet via QSFP-DD port and x16 PCIe Gen4 host connectivity. Supports all Agilex™ 7 F-series FPGA densities from 006 through 027 in R24C package. Incorporates three banks of 72-bit DDR4 memory (24GB /12GB total), and features SMB PPS input for external synchronization.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

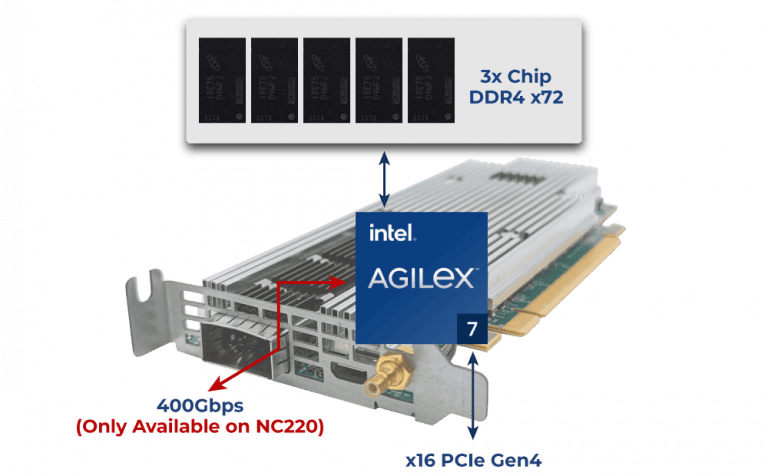

Key Features

  • FPGA: Agilex™ 7 F-Series FPGA (AGF006/008, 012/014, 019/023, 022/027)
  • Processor: Quad-core Arm® Cortex®-A53
  • PCIe Form Factor: Low profile, HHHL, single/dual slot
  • Network Interface: F-Tile, 1× QSFP-DD (1x 400G or 2x 200G/100G/50G/40G or 8x 50G/25G/10G)
  • Host Interface: F-Tile, x16 PCIe Gen 4
  • Memory: 24GB/12GB (3 Banks of 72-Bit 8/4GB DDR4)
  • Synchronization: SMB PPS input for external sync
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 7 FPGAs and SoC FPGAs F-Series
Offering Status Production
Device OPN(s) on Board AGFB008R24C2E2V;AGFB022R24C2E2V;AGFB027R24C2E2V;AGFB012R24C2E2V;AGFB014R24C2E2V;AGFB006R24C2E2V;AGFD023R24C2E2VB;AGFD019R24C2E2V
Demo No
Form Factor 6.6" x 2.46"
Power Up to 75W card load with edge power and up to 100W card load with 6-pin PCIe power connector
Interfaces - x16 Gen4 PCIe card edge Interface
- QSFP-DD network interface port with up to 400G Ethernet hard IP support
- Unified micro-USB 2.0 interface with on-board USB hub
- SMB PPS input for external synchronization
Memory Dual 2Gbit QSPI for FPGA configuration and BMC controller
Connectors x16 PCIe Gen4 host interface, Single QSFP-DD, SMB Coaxial
Switches & LEDs DIP switch for lab development, multi-color status LED
Latest Quartus Version Supported 25.1.0

PCIe card with passive heat sink

BSPs. RTL and OFS/OneAPI design flows

Example designs

User guides and detailed how-to documentation

Ordering Information

AGF-NC220-B75-02 (027 FPGA)

from Direct

Order Now
