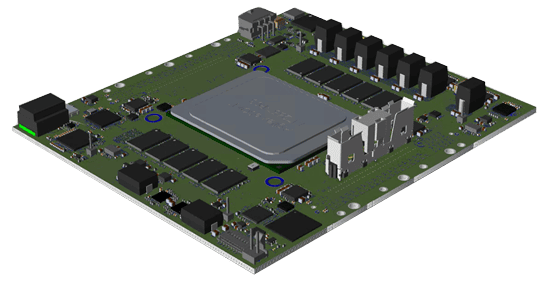

eSOM7-4F

Hitek Systems LLC

Member

Altera Agilex™ 7 I/F/M Series FPGA based embedded SOM (eSOM™) module for high performance embedded edge processing, wireless communication and networking designs. Up to 2.4Tbps high speed transceivers bandwidth supporting up to 58Gbps/112Gbps PAM4 and x16 PCIe Gen4 interfaces. 4 Banks of 72-bits, full performance 3200MT/s DDR4s for a total of 64B memory. Integrated quad-core 64-bit A53 ARM processor complex with 32GB eMMC, GiGE network and SPI/I2C interface peripherals. Flexible clocking with integrated Si5518 network synchronizer.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Form Factor: 120mm x 140mm
  • FPGAs: Altera Agilex™ 7, I, F and M Series in 31B/31C package with 4x F-Tiles
  • Supported Devices: 4x F-Tile 027/022, 041 and 039/032 density devices in R31B/R31C package
  • F-Tile based FGT Serdes interfaces; 64x NRZ (32Gbps) or 48x PAM4 (58.125Gbps) transceivers
  • F-Tile based FHT Serdes interfaces; 8x PAM4 (112Gbps) transceivers (R31C package option)
  • Memory: 4 banks of 72-bit 16GB DDR4 (64GB total) memory with up to 3200MT/s (-1 core speed)
  • Processor: ARM A53 processing complex (HPS) with 32GB eMMC and µSD card, GiGE Ethernet, SPI, I2C and UART interfaces
  • Synchronization: Integrated Skyworks Si1518 timing synchronizer, PTP/1588-based with JESD clocking support
  • Two 400-pin high performance connectors with SerDes and IOs. 5mm stacked height
  • Samtec Novaray connector for Flyover QSFP D8 interface (800G Ethernet)
Expand Close

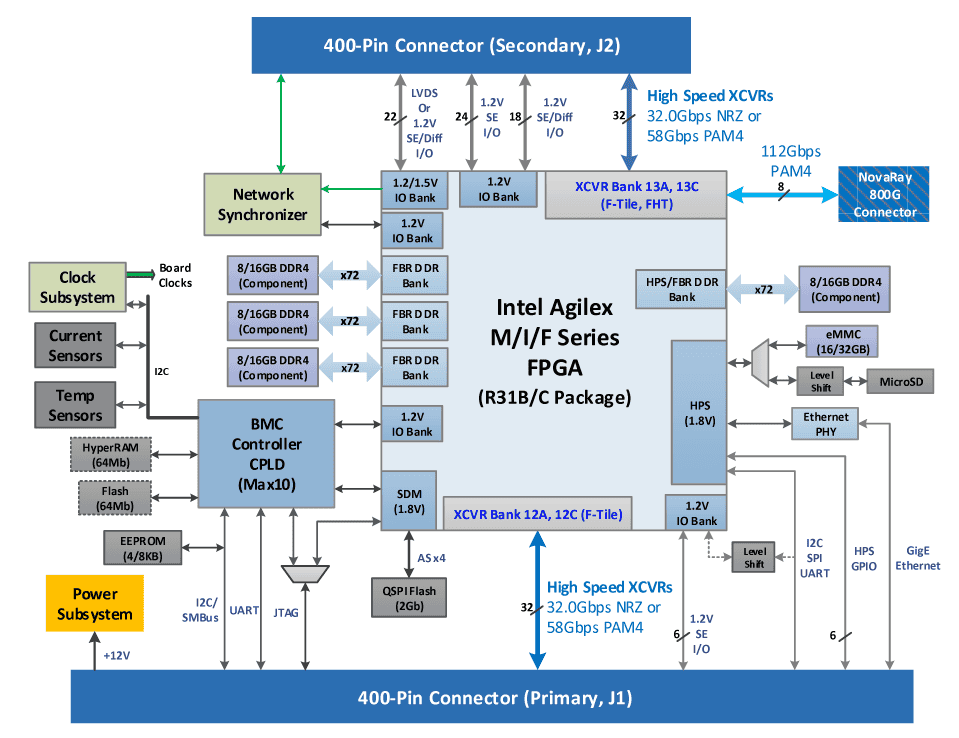

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series
Offering Status Sampling
Device OPN(s) on Board AGFB022R31C2E1V;AGFB022R31C2E2V;AGFB027R31C2E1V;AGFB027R31C2E2V;AGIB041R31B1I2VB;AGIB027R31B1I1V;AGIB027R31B2I1V;AGIB027R31B2I2V;AGMA032R31B2I1VC;AGMA032R31B2I2VC;AGMB032R31B1E1VC;AGMB039R31B1I2VC;AGMA039R31B2I2VC;AGMA039R31B2I3VC;AGMB032R31B1I1VC
Form Factor 120mm x 140mm
Power Power subsytem design to support ~300W total power, up to 240A core power
Interfaces - 64 F-Tile FGT XCVR lanes, 32Gbit NRZ or 56Gbps PAM4 (48 lanes only)
- 8 F-Tile FHT XCVR lanes (I and M series only) , 112Gbps
- 22 1.5V/1.35V True-Diff IOs
- 48 SE 1.2V IOs
- HPS GiGE, SPI, UART and I2C
- BMC I2C and UART
- JTAG
Memory 32GB eMMC and µSD card
Connectors Two 400-pin high performance connectors with Serdes and IOs, 5mm stack. Novaray Connector
Switches & LEDs DIP switcfh for module configuration, power and config status LEDs
Latest Quartus Version Supported 25.1.0

SOM with heat sink and fan

BSP with Yocto Linux

APIs and drivers

Example designs

User guides and detailed how-to documentation

Ordering Information

AG-eSOM-4-B75-00

from Direct

Order Now
