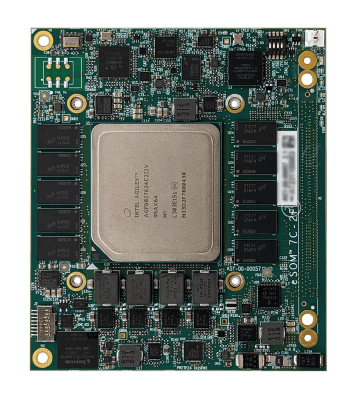

Altera Agilex™ 7 Series FPGA based compact embedded SOM (eSOM™) module is designed for embedded, edge processing, wireless communication, and networking-centered designs. It supports up to 1.2 Tbps high-speed transceiver bandwidth, with support for 58 Gbps PAM4 networking and x16 PCIe Gen4 interfaces. Integrated quad-core 64-bit A53 ARM processor complex with 16GB eMMC, GiGE network and SPI/I2C interface peripherals. Flexible clocking with integrated Si5518 network synchronizer.

View Partner Website

Partner Product Page

Contact Now

Contact Hitek Systems LLC

LeadSource

ASAP Account ID

Record Type Name

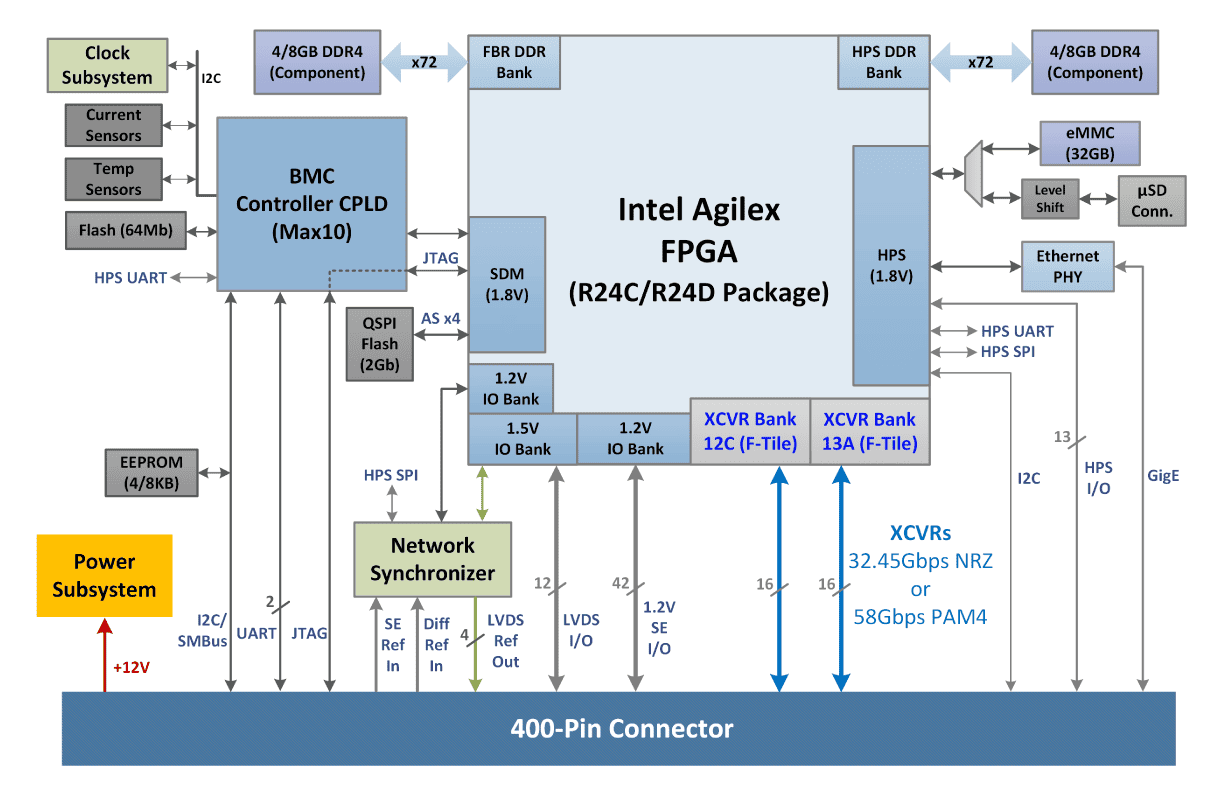

Key Features

Form Factor: Compact 110 mm × 95 mm module
FPGA: Agilex™ 7 F-Series, 24C package with 2× F-Tiles
Supported Devices: 027/022, 023/019, 014/012, and 008/006
Connectors: One 400-pin high-performance mezzanine connector with 32 FGT transceivers (32.45 Gbps NRZ / 58 Gbps PAM4), up to 42 SE 1.2V and 12 true-differential LVDS I/Os
Processor: Integrated quad-core Arm® Cortex®-A53 processing complex with Ethernet, UART, SPI, I²C interfaces and I/Os
Synchronization: Integrated Skyworks Si1518 timing synchronizer, PTP/1588-based with JESD clocking support
Industrial temperature range -40°C to 85°C

Offering Brief

Device Family	Agilex® 7 FPGAs and SoC FPGAs F-Series
Offering Status	Production
Device OPN(s) on Board	AGFB012R24D2I2V;AGFB022R24C2I2V;AGFB027R24C2I2V;AGFB012R24C2I2V;AGFB014R24C2I2V;AGFA006R24C2I2V;AGFB008R24C2I2V;AGFB008R24D2I2V;AGFB014R24C2I2VB;AGFB023R24C2I2VB;AGFD023R24C2I2VB
Demo	No
Form Factor	95mm x 110mm
Power	Power subsytem design to support ~200W total power, up to 160A core power
Interfaces	- 32 F-Tile FGT XCVR lanes, 32Gbit NRZ or 56Gbps PAM4 (24 lanes only) - 12 1.5V True-Diff IOs - 42 SE 1.2V IOs - HPS GiGE, SPI, UART and I2C - BMC I2C and UART - JTAG
Memory	32GB eMMC and µSD card
Connectors	One 400-pin high performance mezzanine connector
Switches & LEDs	DIP switcfh for module configuration, power and config status LEDs
Latest Quartus Version Supported	25.1.0
