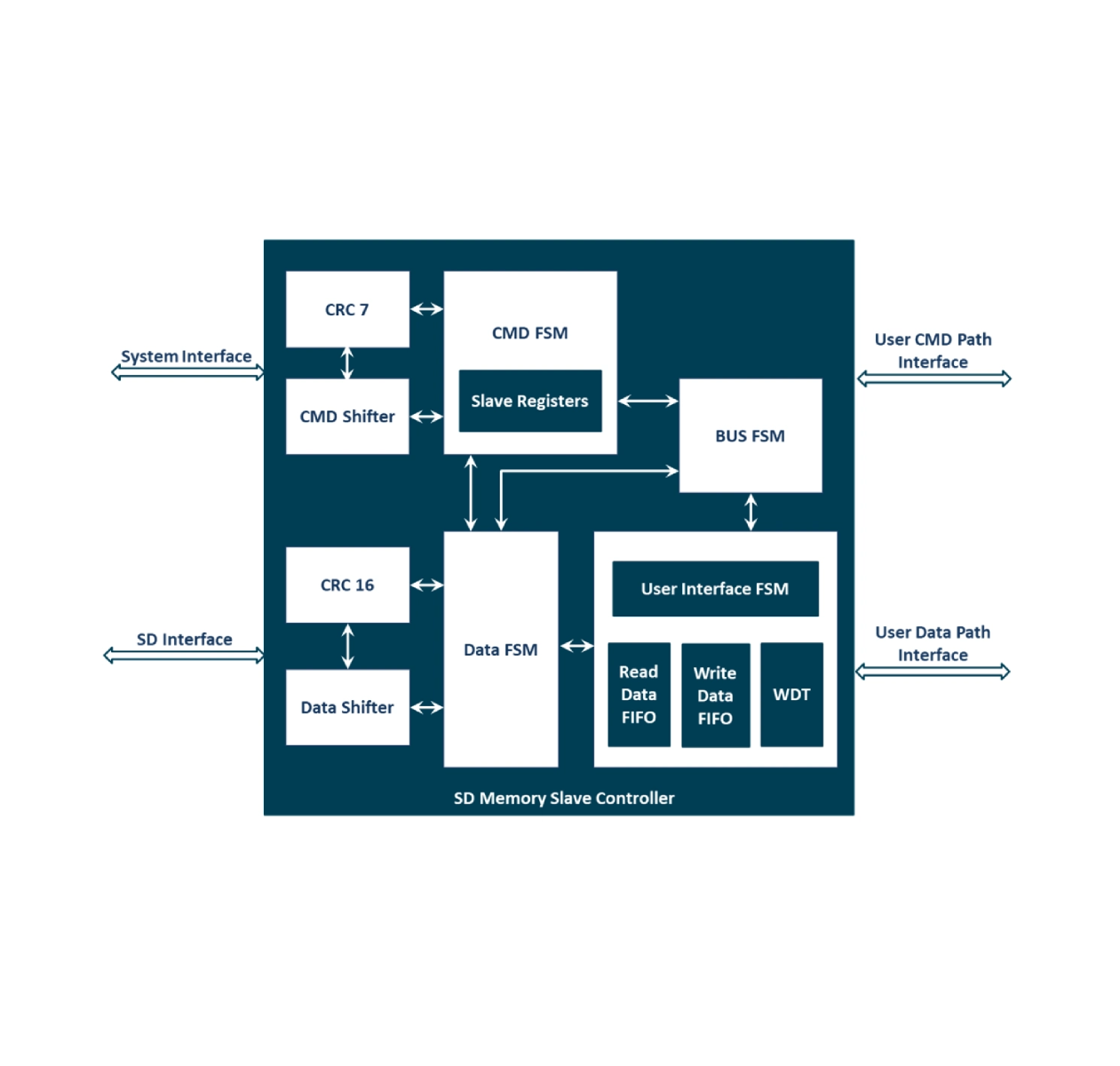

The SD Memory Slave Controller IP Core from iWave enables seamless integration of FPGA-based systems with external SD Memory Cards in slave mode. Designed to meet SD Memory Card Physical Layer Specification Version 2.0, this IP core allows efficient data communication through a simple command-response protocol. It acts as a bridge between the host processor and external SD memory cards, allowing FPGAs to emulate memory storage functionality in a highly configurable manner.

The controller supports SPI and SD modes with features like block-based data transfers, CRC generation/checking, and interrupt-driven operations. This makes it ideal for a range of embedded applications such as portable data recorders, industrial logging equipment, and consumer electronics requiring removable storage options. It is optimized for low-resource utilization and offers flexibility with easy integration into designs using standard AXI interfaces.

View Partner Website

Partner Product Page

Contact Now

Contact iWave Global

LeadSource

ASAP Account ID

Record Type Name

Key Features

Supports 1-bit and 4-bit SD Mode
Supports Standard and High Capacity operations
Supports Default and High Speed Modes of operation
Supports all mandatory slave registers set

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	No
Design Examples Available	No
Demo	No
Compliance	No
Hardware Platforms Supported	Arria® 10 SX SoC Development Kit
Latest Quartus Version Supported	24.2.0
Development Language	Verilog
