Agilex™ 5 SoM: G58M

iWave Global

Select

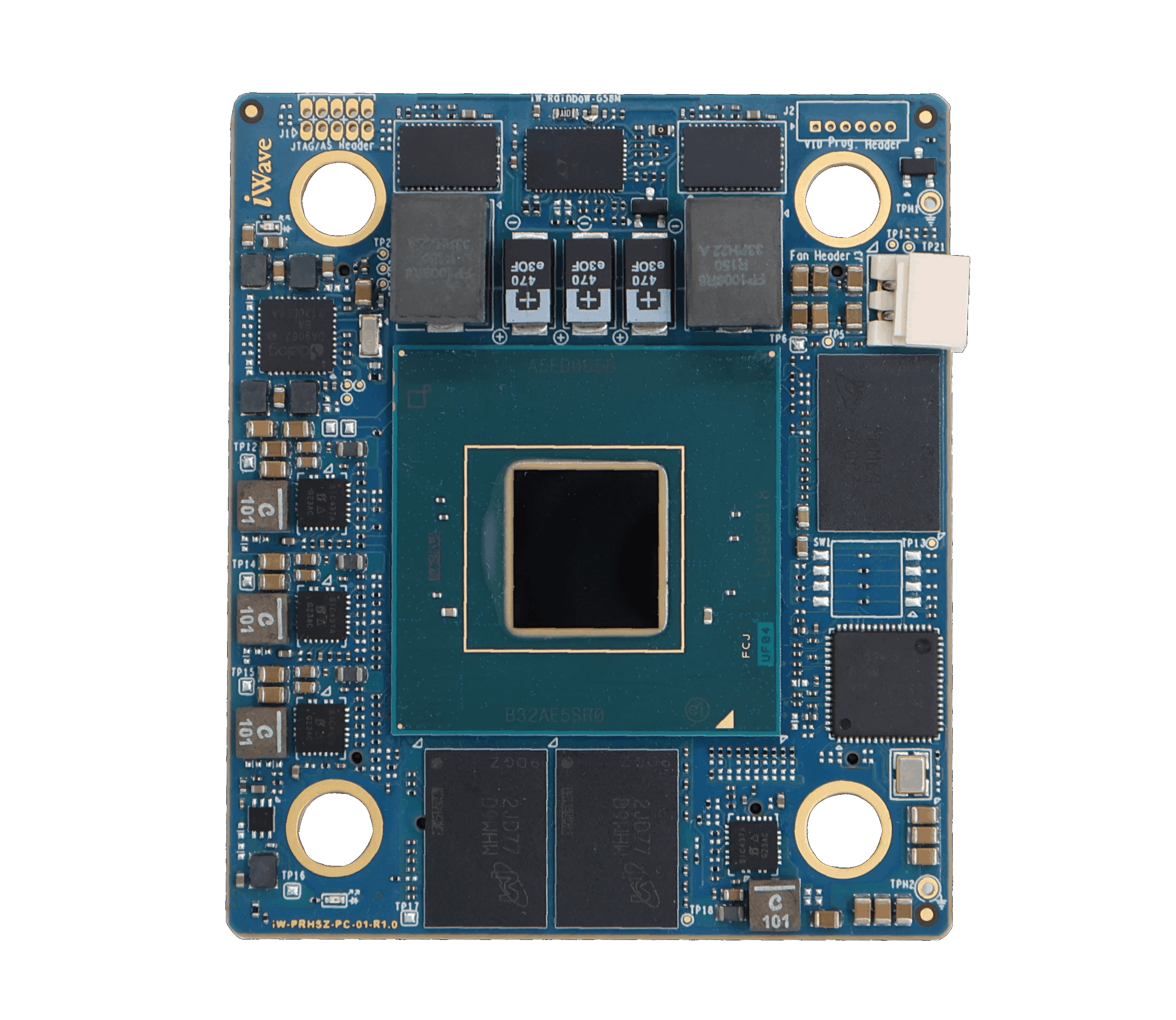

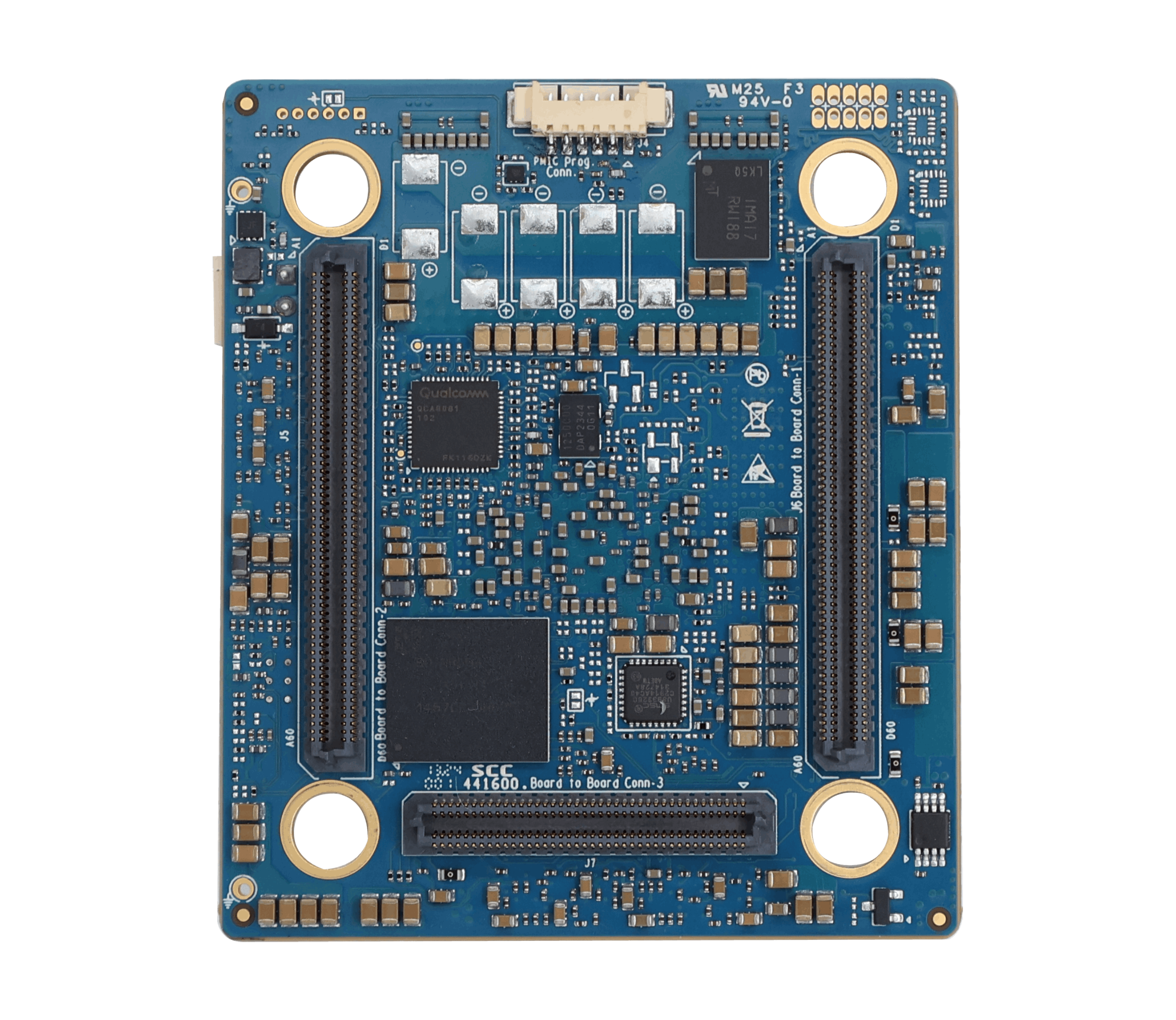

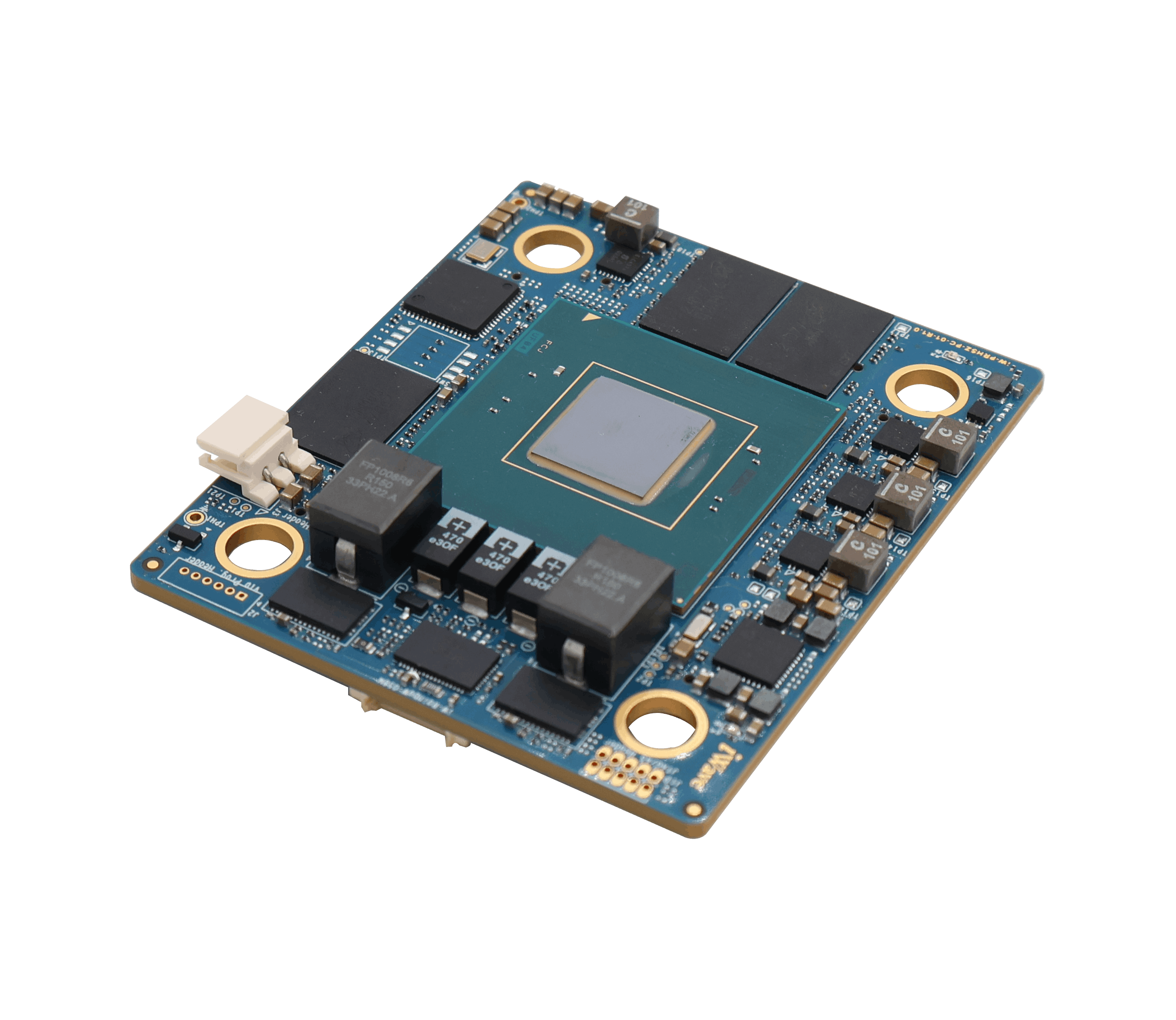

The iW-RainboW-G58M is a compact, high-performance System on Module built on the Agilex™ 5 E-Series FPGA, featuring the B32A package. It integrates a dual-core 64-bit Arm® Cortex®-A76 processor running up to 1.8GHz, up to 656K logic cells, 4GB LPDDR4 for HPS, and dual 4GB LPDDR4 for FPGA, offering powerful compute and programmable capabilities. With 24 high-speed transceivers supporting up to 28Gbps and a compact 60mm x 70mm form factor, the G58M is designed for edge AI, it enables scalable, low-latency computing across industrial and vision-based applications.

Key Features

  • Agilex™ 5 E- Series family with B32A Package
  • 32Bit 2GB LDDR4 for HPS and 2 x 32Bit 2GB LDDR4 for FPGA
  • 32GB eMMC (Expandable), 1Gb QSPI Configuration flash and EEPROM
  • 24 x transceivers up to 17.16Gbps for Group B devices (28.1 Gbps when using Group A devices)
  • Up to 656k Logic Elements
  • 10/100/1000/2500Mbps Ethernet PHY Transceiver
  • USB 2.0 PHY Transceiver
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 5 FPGAs and SoC FPGAs E-Series
Offering Status Production
Device OPN(s) on Board A5ED065BB32AE5SR0;A5ED065BB32AE5S
Form Factor 60mm x 70mm (REN+)
Power 5V
Interfaces From HPS: RGMII, USB2.0 OTG, Debug UART SD(opt), I2C, GPIOs, From SDM: JTAG, Active Serial(Opt), AVSTx8(Opt), From HPS to FPGA: Ethernet(On-SOM), SPI, I2C, From FPGA: 24 x transceivers upto 17.16 Gbps, FPGA HSIO(48LVDS/96SE), FPGA HVIO(Upto 94)
Memory 32GB eMMC (Expandable), 1Gb QSPI Configuration flash, 2kb EEPROM
Connectors Board to Board Connectors Interfaces
Switches & LEDs Boot switch(Optional) and Statues LED
Latest Quartus Version Supported 25.1.0
