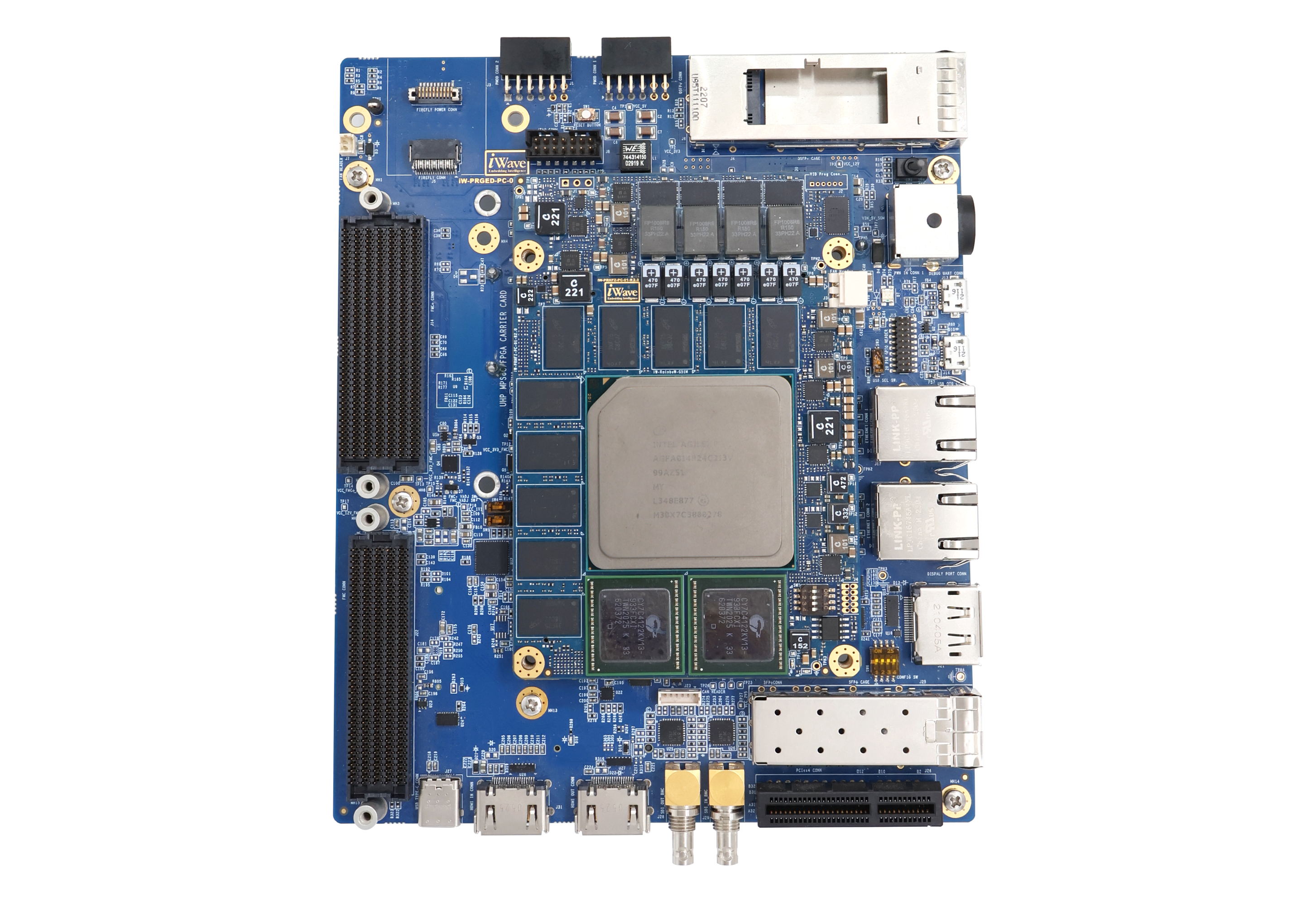

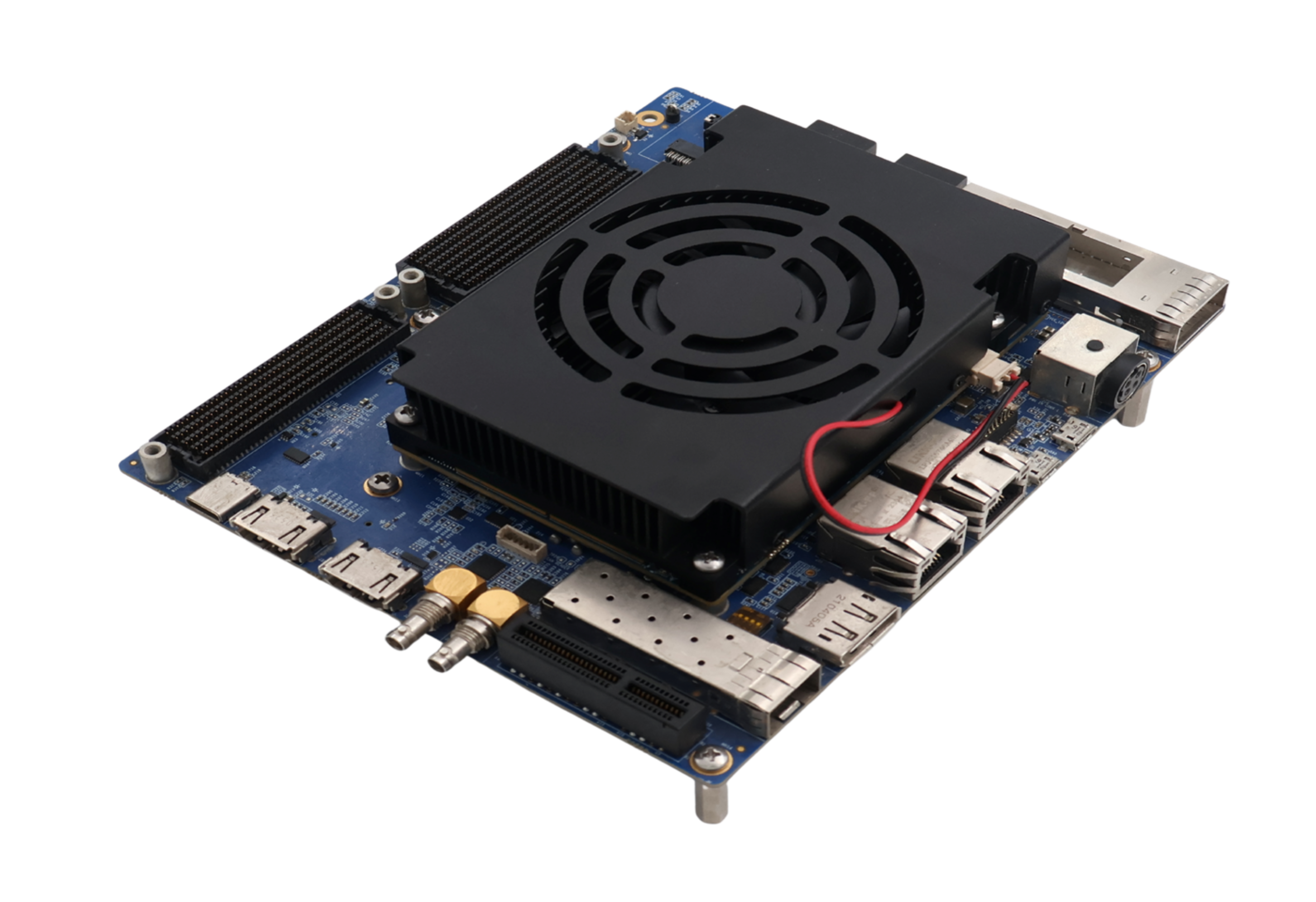

The Agilex™ 7 R24C Development Kit by iWave provides a comprehensive evaluation and prototyping platform for developers building applications around Agilex™ 7 SoC FPGA. The kit includes the R24C SoM mounted on a feature-rich carrier board, offering access to high-speed interfaces including PCIe Gen4 x16, DDR4 memory, and FGT transceivers. This development environment is ideal for validating performance in data center, telecom, and SmartNIC applications.
Multimedia capabilities are enhanced through 4K HDMI 2.0 IN/OUT and SDI Video IN/OUT via HD BNC connectors. Additional I/Os include Gigabit Ethernet, USB 2.0 OTG, debug UART, and PMOD expansion, with support for MicroSD storage and JTAG for development and debugging. With a compact 160mm x 210mm form factor and an operating temperature range of 0°C to +85°C, the G51D is a robust, versatile development platform designed for high-throughput embedded systems and rapid prototyping with Agilex™ 7 SoMs.
