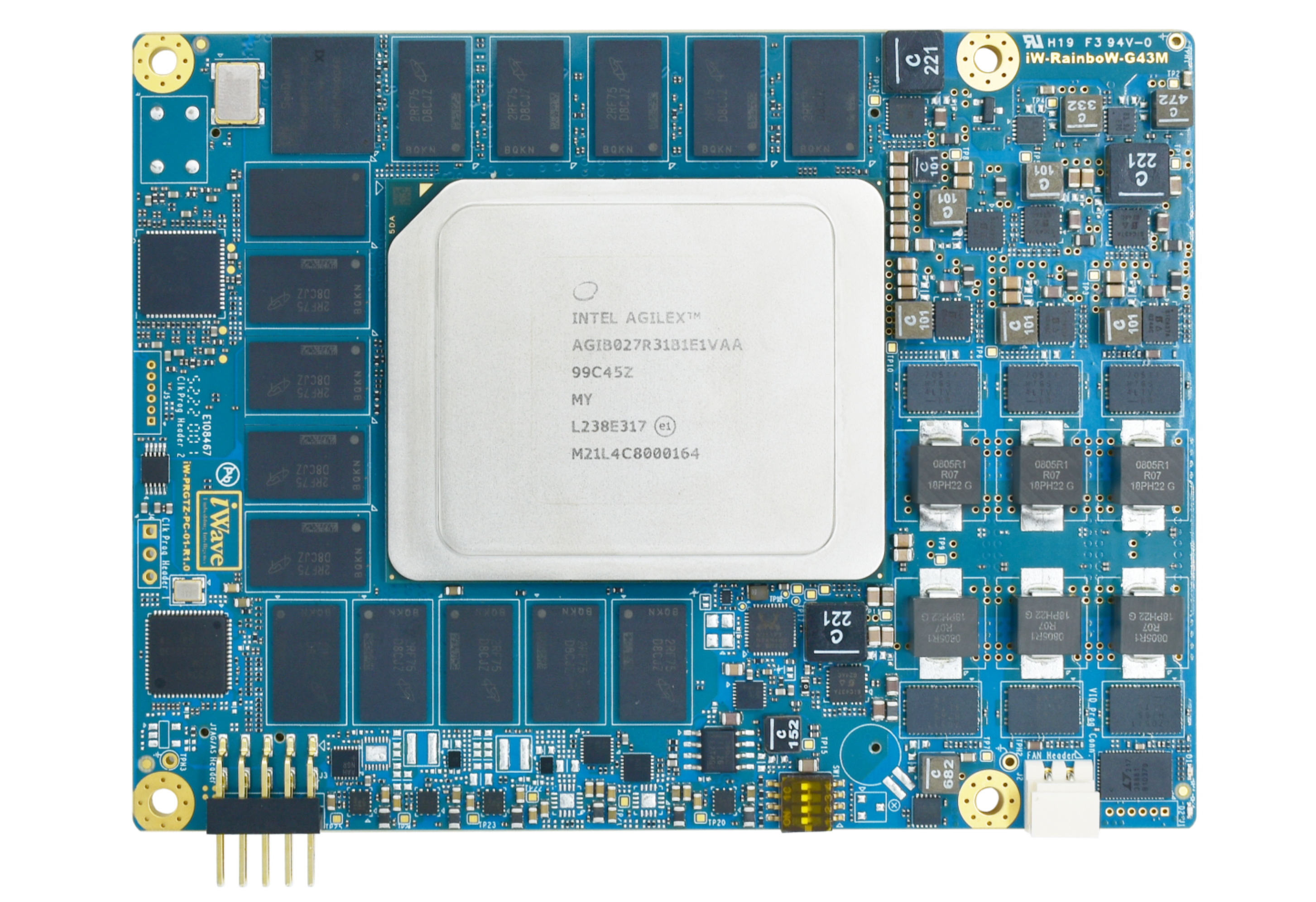

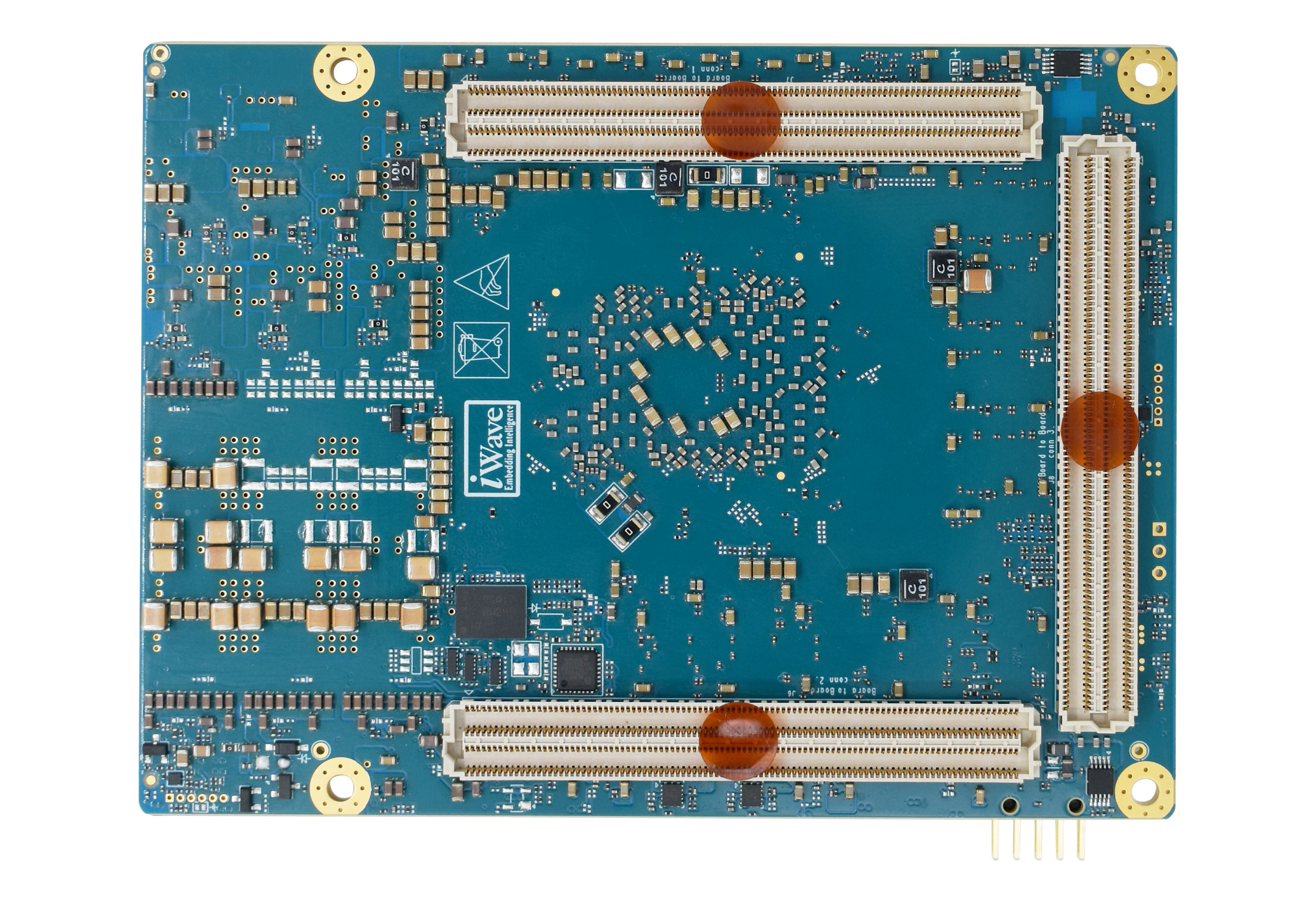

The iWave Agilex™ 7 R31A/B/C SoC FPGA System on Module (SoM) is a high-performance, compact, and production-ready module built on Agilex™ 7 FPGA family. Designed to meet the compute and bandwidth demands of next-generation networking, edge computing, and acceleration applications, the module integrates a Quad-core ARM Cortex-A53 processor, 8GB DDR4 with ECC for HPS, and dual 8GB DDR4 with ECC for FPGA fabric this SoM offers exceptional compute density and flexibility in a small form factor of 120mm x 90mm.
With 64 high-speed FGT transceivers supporting up to 58Gbps and 8 FHT transceivers reaching up to 116Gbps, 16 GXR transceivers supporting PCIe Gen5 the SoM delivers exceptional serial connectivity. It features onboard PTP and SyncE network synchronizers, up to 128 LVDS (256 SE) FPGA I/Os, and expandable 32GB eMMC storage. iWave also provides a complete development platform with hardware, software, and firmware support to simplify the integration and re...
The iWave Agilex™ 7 R31A/B/C SoC FPGA System on Module (SoM) is a high-performance, compact, and production-ready module built on Agilex™ 7 FPGA family. Designed to meet the compute and bandwidth demands of next-generation networking, edge computing, and acceleration applications, the module integrates a Quad-core ARM Cortex-A53 processor, 8GB DDR4 with ECC for HPS, and dual 8GB DDR4 with ECC for FPGA fabric this SoM offers exceptional compute density and flexibility in a small form factor of 120mm x 90mm.
With 64 high-speed FGT transceivers supporting up to 58Gbps and 8 FHT transceivers reaching up to 116Gbps, 16 GXR transceivers supporting PCIe Gen5 the SoM delivers exceptional serial connectivity. It features onboard PTP and SyncE network synchronizers, up to 128 LVDS (256 SE) FPGA I/Os, and expandable 32GB eMMC storage. iWave also provides a complete development platform with hardware, software, and firmware support to simplify the integration and reduce time to market.
