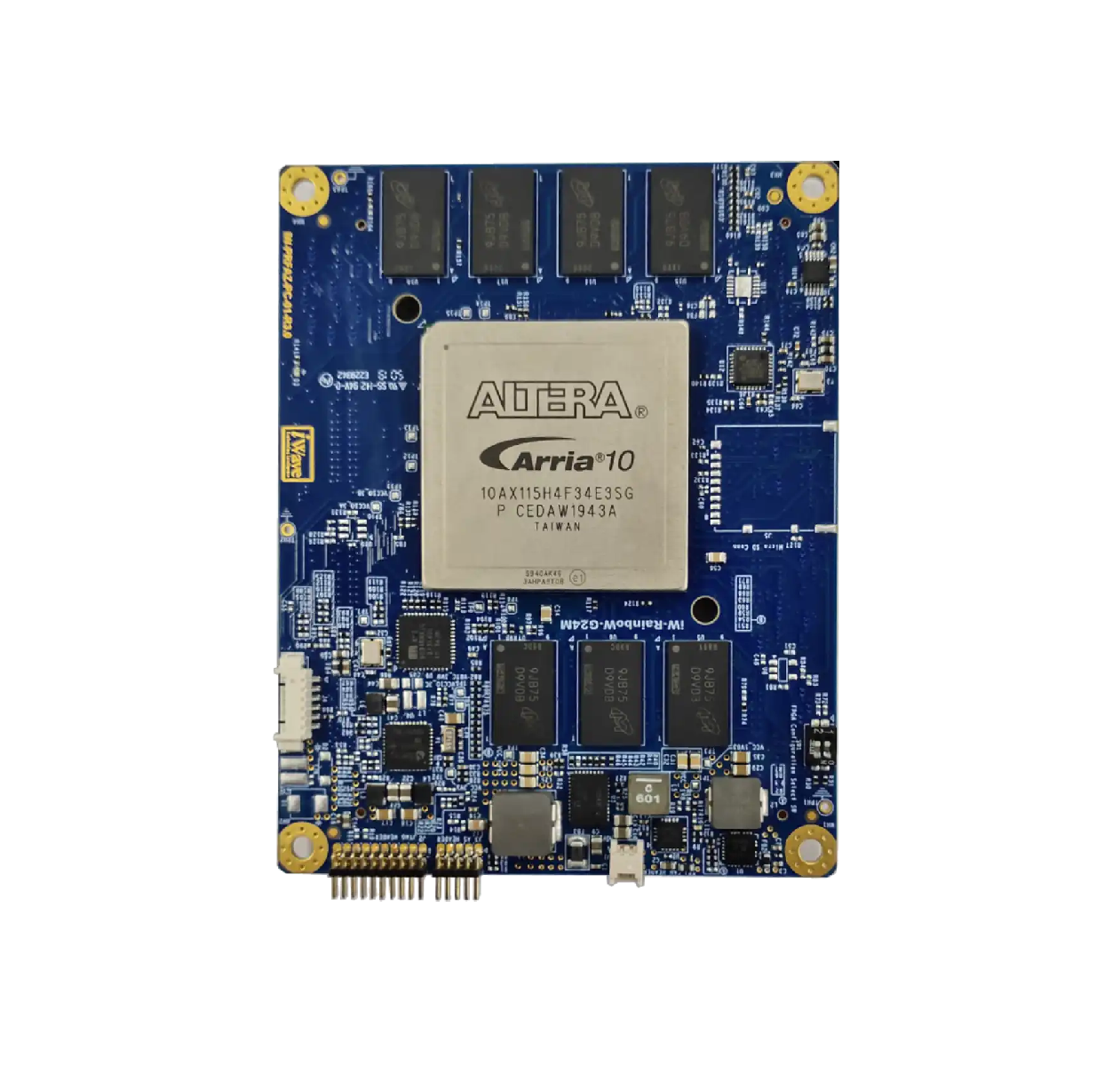

iWave’s iG-G24M is a production-ready, high-performance System on Module built around the Arria® 10 GX FPGA family, offering compatibility with devices ranging from GX270 to GX1150. Designed for advanced compute applications, the module supports up to 1,150K logic elements and features 24 high-speed transceivers operating at up to 17.4Gbps. This makes it an excellent choice for high-speed data acquisition, software-defined radio (SDR), and communication protocol offloading.

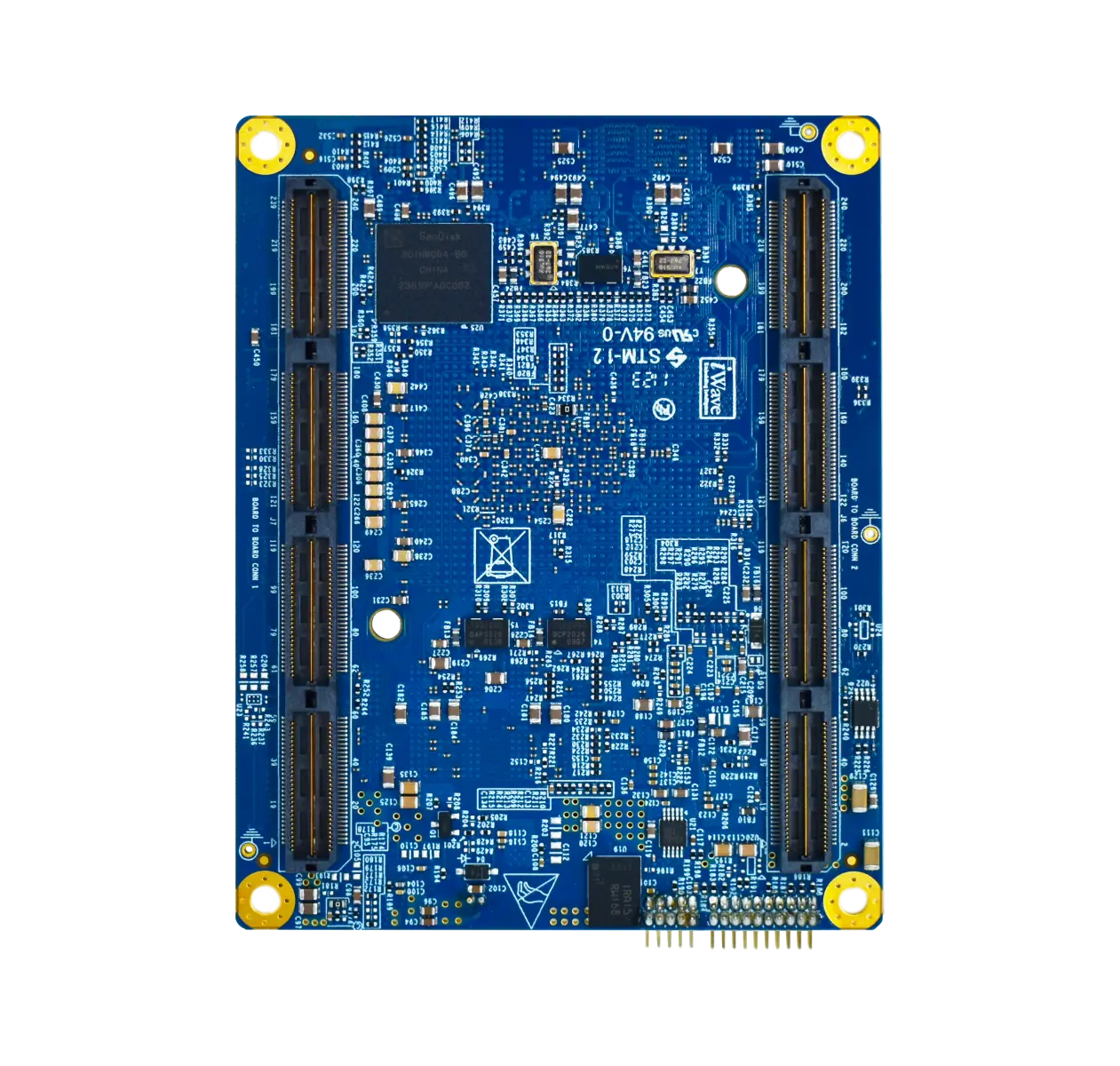

The module includes 4GB of 64-bit DDR4 memory for the FPGA fabric and additional 2GB DDR4, delivering a balanced mix of bandwidth and storage for data-intensive tasks. With 210 user I/Os available through dual 240-pin high-speed connectors, including 48/96 LVDS and 93 single-ended I/Os, the G24M enables flexible interfacing and system integration. Its compact 75mm x 95mm form factor, industrial temperature range, and long-term availability.
