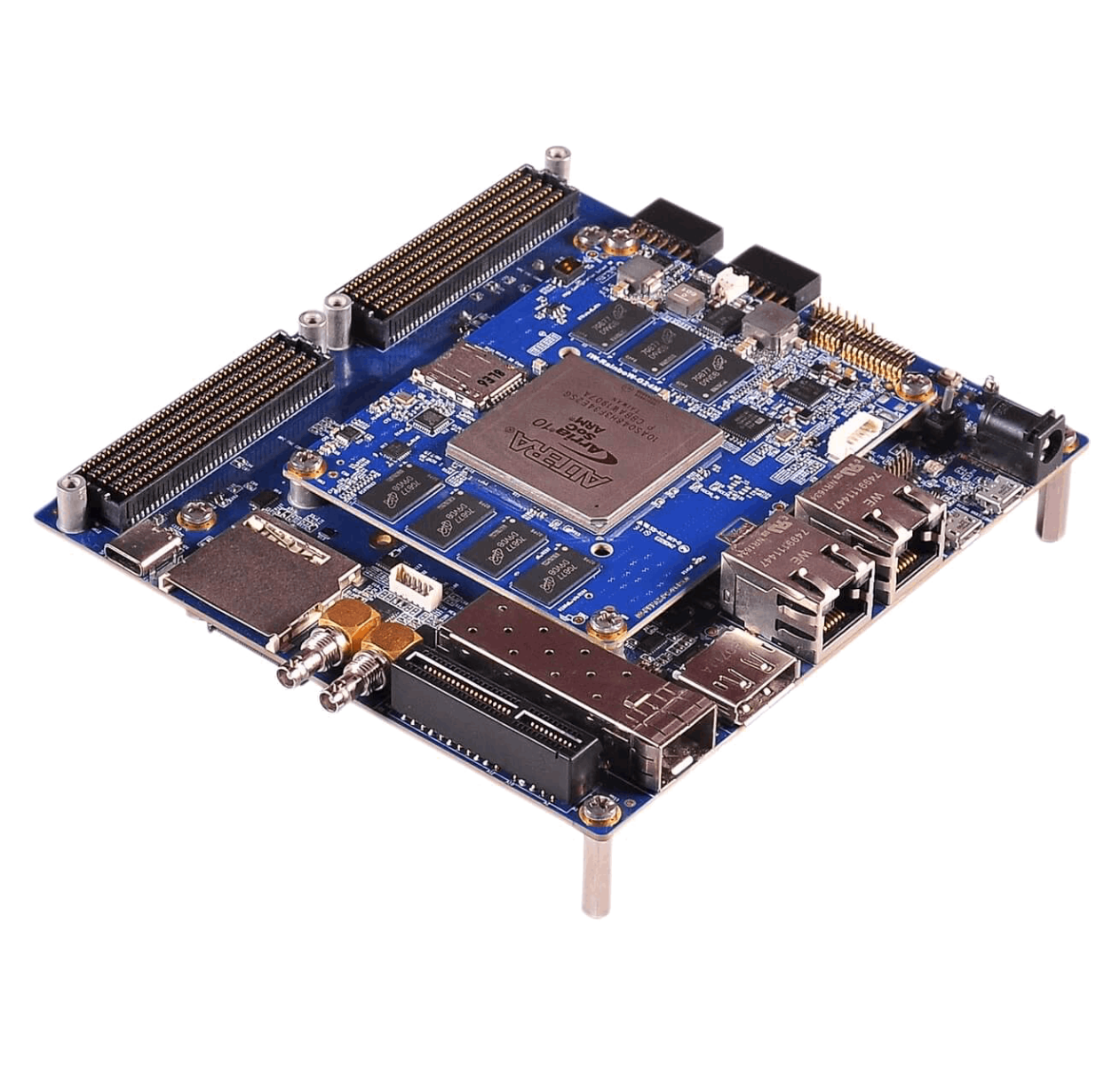

The Dual FMC Development Kit for iWave’s Arria® 10 SoM is a feature-rich prototyping platform designed to evaluate high-speed connectivity and parallel processing capabilities. With support for two standard FMC connectors, the kit enables seamless interfacing with a wide range of daughter cards for AD/DA, RF, vision, or I/O expansion, making it suitable for industrial control, test and measurement, and signal processing applications.

The kit includes onboard peripherals like USB 3.0, Gigabit Ethernet, PCIe Gen2, SATA, and HDMI, offering a comprehensive development environment. Coupled with pre-validated BSP support for Linux and reference designs, this kit simplifies complex FPGA development and shortens time-to-market.

View Partner Website

Partner Product Page

Contact Now

Contact iWave Global

LeadSource

ASAP Account ID

Record Type Name

Key Features

Supports Dual FMC (VITA 57.1) connectors for flexible expansion
High-speed interfaces: USB 3.0, SATA, Gigabit Ethernet, PCIe Gen2
HDMI input/output for display and multimedia processing
Onboard DDR4 RAM, QSPI flash, and eMMC storage
Integrated PMIC and power sequencing for stable operation
Linux BSP with reference designs and board bring-up support

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Arria® 10 GX FPGA
Offering Status	Production
Device OPN(s) on Board	10AS048H3F34E2SG;10AS066H2F34I1HG;10AS066H2F34I2SG;10AX115H4F34E3SG;10AX048H4F34E3SG
Form Factor	130mm x 140mm
Power	5V
Interfaces	VITA 57.4 FMC+ HPC, PCIe Gen3 x4, NVMe M.2 (PCIe x4), HDMI 1.4a out, Gigabit Ethernet via RJ45 MagJack, USB2.0 Host x2 Type-A, 12-pin PMOD x1, 6-pin PMOD x1, USB-Blaster II MicroAB, Debug UART MicroAB, RTC coin cell holder.
Memory	32bit, 2GB DDR4 RAM with ECC for HPS (Upgradable upto 4GB), 64bit,4GB DDR4 RAM for FPGA(Upgradable upto 8GB), 8GB eMMC Flash(Upgradable), RGMII Ethernet PHYTransceiver, ULPI Transceiver
Connectors	Two 240pin High Speed Board to Board Connectors Interfaces
Switches & LEDs	Boot switch and Statues LED
Latest Quartus Version Supported	21.3.0
