JESD204C TRANSMITTER AND RECEIVER IP

Logic Fruit Global Technologies Inc

Select

Logic Fruit Technologies has designed JESD204C RTL IP to support increased lane rates up to 32Gbps for higher bandwidth applications. This IP can be configured to transmit or receive using either a 64B66B or 8B10B link layer with improved efficiency of payload delivery and also provides for improved robustness of the link with a backward-compatible option to JESD204B.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • With the addition of error correction(FEC), cutting-edge instrumentation and other applications can operate without any errors.
  • Offers better DC balance, clock recovery and data alignment compared to JESD204B.
  • The bit overhead is 3.125% which is much smaller than JESD204B (~ 25%).
  • Provides interface for serializing devices from some system designs, reducing space, power, and cost.
  • It supports interface requirements of high megabit and Gigabit data rates for various applications such as 5G cellular equipments, test equipments, medical devices, military warfare and so on.
  • Mechanism to achieve Deterministic latency across the serial link.
Expand Close

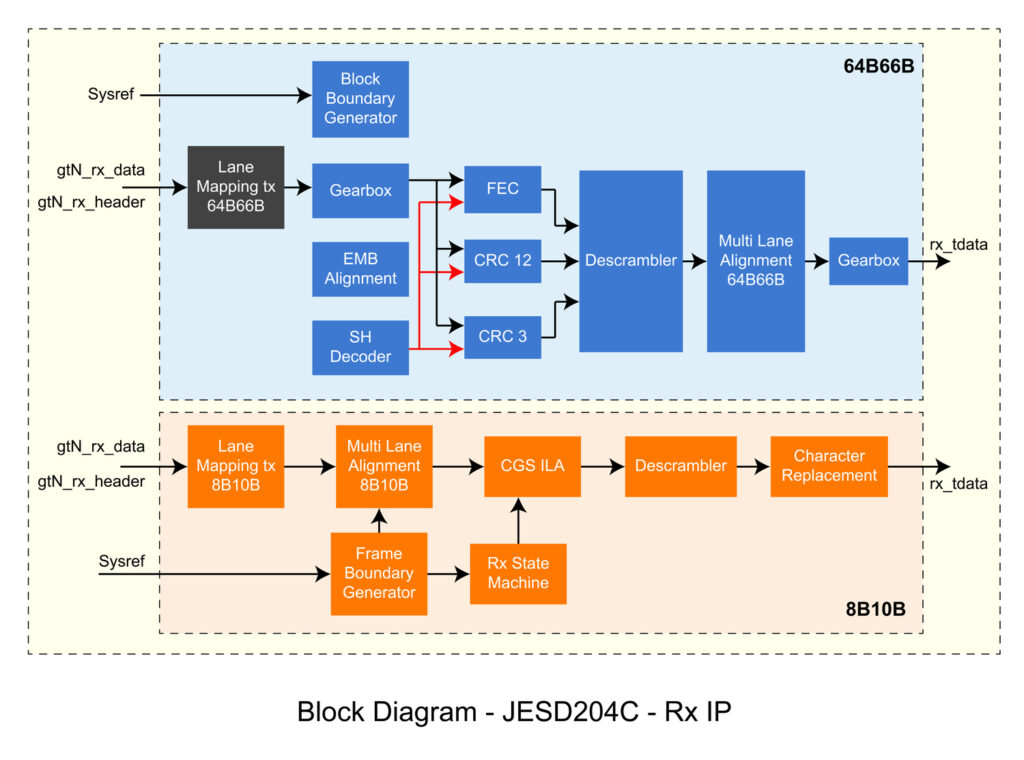

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 SX SoC FPGA, Arria® 10 GT FPGA, Arria® V GZ FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License No
Design Examples Available Yes
Demo No
Compliance No
Latest Quartus Version Supported 24.3.1
Development Language Verilog, VHDL

VHDL/Verilog Design Files

VHDL Test Bench

VHDL Testcases

Log Files of Simulation Results
