DISPLAY PORT IPs

Logic Fruit Global Technologies Inc

Select

DisplayPort Transmitter and Receiver IP Cores compliant with DisplayPort 2.0/eDP 1.5 standards. These cores support line rates up to 8.1 Gbps and feature versatile capabilities, including multi-stream transport for up to four streams, dynamic lane configuration, HDR metadata support, and audio output for 2 to 8 channels, delivering exceptional multimedia performance.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Data Rate 1.62, 2.7, 5.4 and 8.1 Gbps
  • Video Resolution Upto 8k UHD/60Hz and Progressive, Interlaced Video Format
  • Dynamic Lane Support for 1,2 or 4 lane
  • Color Formats : RGB/YCbCr444/YCbCr422
  • Supports Bits Per Component (BPC) : 6, 8, 10, 12 bpc
  • Phy Interface : 16-bit Video
  • Multi-stream transport (MST) upto 4 streams
  • Upto 8k UHD Resolution
  • Pixel Format : Single,Dual,Quad
Expand Close

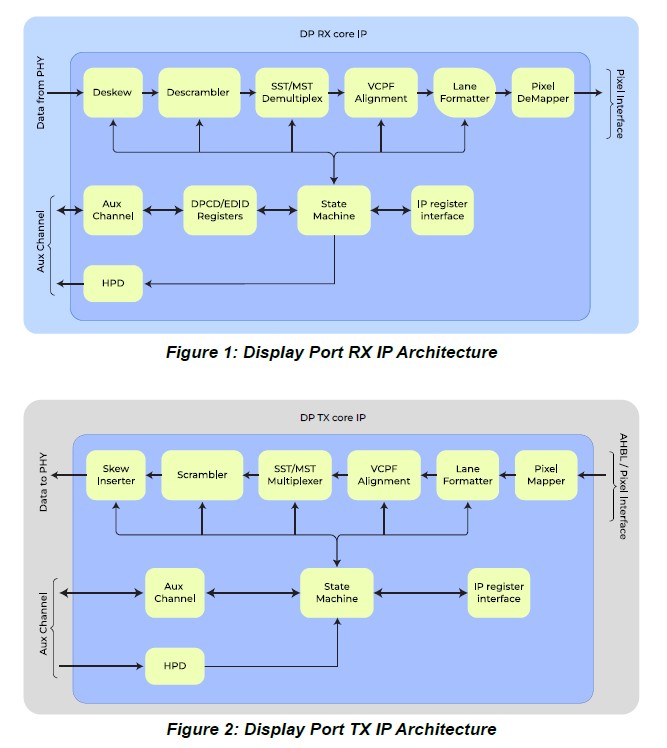

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® 10 SX SoC FPGA, Arria® 10 GT FPGA, Arria® V GZ FPGA
Offering Status Production
Integrated Testbench No
Evaluation License No
Design Examples Available No
Demo No
Compliance No
Latest Quartus Version Supported 24.3.1
Development Language VHDL

Supports multi-stream transport (MST) upto 4 streams and single stream transport (SST).

Dynamic support for variable bpc.

Dynamic lane support (1, 2, or 4 lanes).

Dynamic link rate support (1.62/2.7/5.4/8.1 Gb/s).

HDR Metadata support on secondary stream.

Audio output support (2 to 8 audio channels).

Ordering Information

sales@logic-fruit.com

from Direct

Order Now
