CXL 3 CONTROLLER IP

Logic Fruit Global Technologies Inc

Select

Logic Fruit's CXL 3 Controller IP is designed to support dual-mode operation, allowing dynamic selection between host and device modes. It connects to standard 64GT/s PHYs through the PIPE 6.x interface and supports high data rates across various link widths.The CXL 3 Controller IP is forward compatible with CXL 3.x and backward compatible with previous versions, offering flexible configurations needed for advanced systems. It supports multiple channels and configurable CXL degraded modes, ensuring seamless integration with CXL devices and enabling high-performance data transfer. Ideal for versatile system designs, it accommodates all three CXL device types to facilitate efficient connectivity and scalable architecture.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Supports configuration of PCIe vs CXL protocol mode
  • Supports both RC and EP modes
  • Supports Link width support for x16, x8, x4, x2 and x1
  • Supports memory cache for HDM-H, HDM-D, and HDM-DM modes
  • Supports CXL Latency Optimized Mode
  • Supports 32 GT/s and 64 GT/s precoding
  • Supports Address Translation Service(ATS)
Expand Close

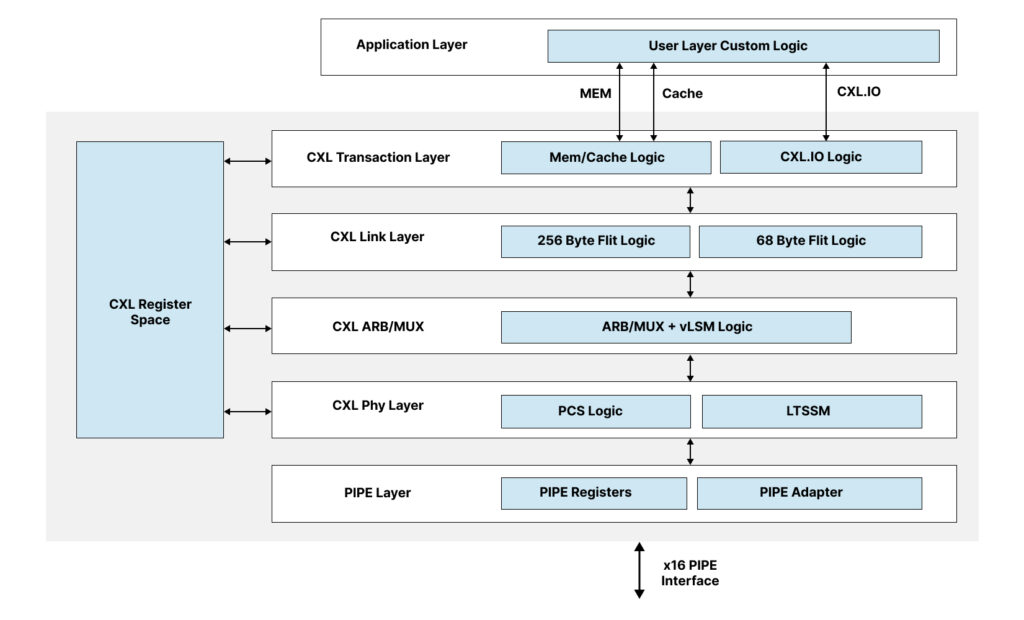

Keyfeatures main image

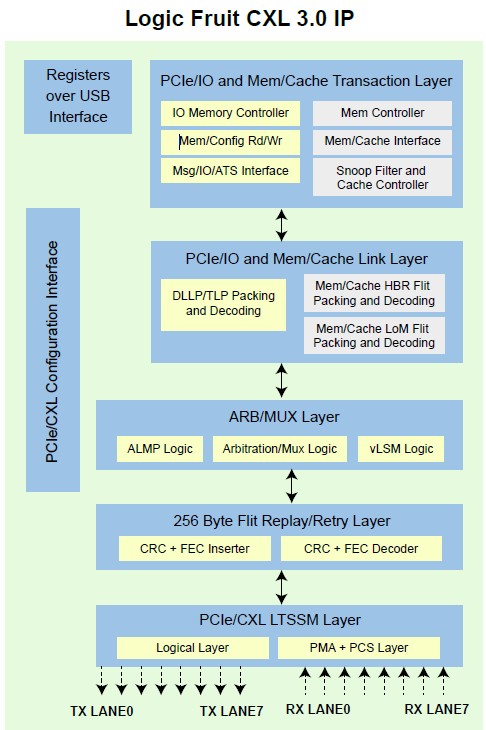

Offering Brief

Offering Brief

Device Family Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series
Offering Status Production
Integrated Testbench No
Evaluation License No
Design Examples Available No
Demo No
Compliance No
Latest Quartus Version Supported 24.3.1
Development Language Verilog, VHDL

Supports CXL 3.x and earlier versions

Support to bypass transaction layers to reduce logic for LTSSM Testing.

Supports following CXL.cache/CXL.mem slots as type 1, type 2 and type 3 CXL Devices.

Supports ARB/MUX Link Management Packets(ALMP) and vLSMs.

Supports PCIe L0s, L0p and L1 power states as well as CXL Power Management using VDM packets.

Supports all snoop responses and memory transactions with byte enable and data poisoning.

Supports selective replay/retry mechanism.

Supports Address Translation Service(ATS).

Supports configurable TC to VC queue mapping and virtual channel management.

IP Configurations : LTSSM Only, LTSSM + CXL.IO, LTSSM + CXL.MEM + CXL.IO, LTSSM + CXL.CACHE + CXL.IO, LTSSM + CXL.MEM + CXL.IO + CXL.CACHE
