SATA 3 Controller IP

Logic Fruit Global Technologies Inc

Select

Logic Fruit's SATA 3 Controller IP provides robust performance for expanding storage solutions. It supports data transfer at up to 600 MB/s, making it ideal for high-capacity, cloud, and archival storage systems. Backward compatibility ensures easy integration with previous SATA versions. This controller offers a reliable solution for building scalable and efficient storage infrastructures.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Fully compliant with Serial ATA spec revision 3.0
  • Simple AXI streaming TX and RX interface for application layer communication.
  • Supports Native Command Queuing and key primitives/FIS types from SATA specifications.
  • Supports data rates of 1.5/3/6 Gbit/s.
Expand Close

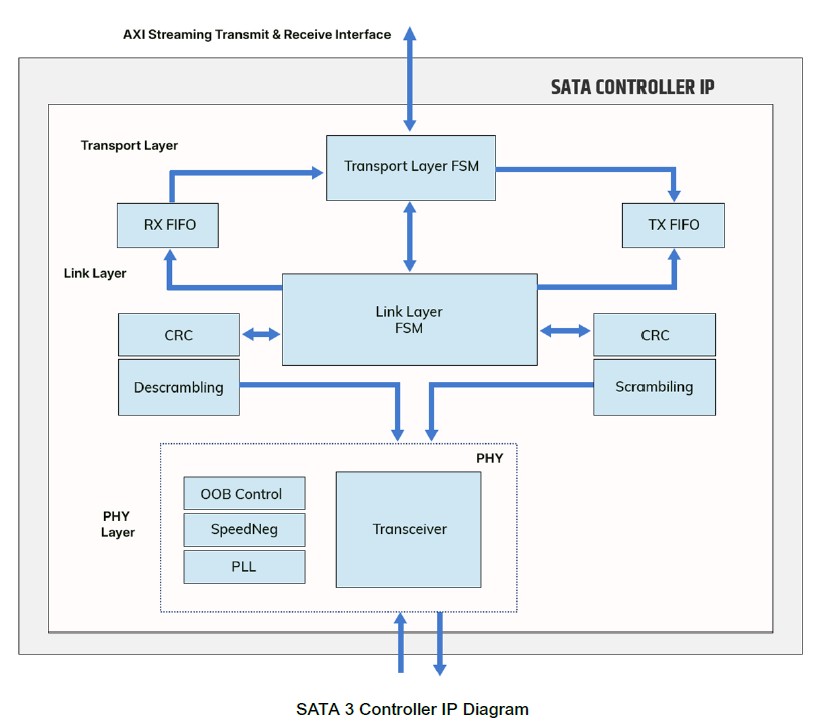

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® V ST SoC FPGA, Arria® 10 SX SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Cyclone® V SX SoC FPGA, Cyclone® V GT FPGA, Arria® 10 GT FPGA
Offering Status Production
Integrated Testbench No
Evaluation License No
Design Examples Available Yes
Demo No
Compliance Yes
Latest Quartus Version Supported 24.3.1
Development Language Verilog, VHDL

Compliant SATA 3.0 Core – Fully compliant with Serial ATA specification revision 3.0, supporting 1.5/3/6 Gb/s data rates

AXI Streaming Interfaces – Simple AXI streaming TX and RX interface for communication with the application/user layer

Native Command Queuing (NCQ) – Support for NCQ and most primitives/FIS types defined in the SATA specification

PHY Layer with OOB Control & Transceiver – Includes out-of-band (OOB) control state machine for initialization, transceiver for parallel-to-serial data conversion

Encoding/Decoding Support – 8B/10B encoding and decoding, byte ordering, word alignment, and clock recovery from serial data

Speed Negotiation & PLL – Built-in support for SATA-II and SATA-III speed negotiation with integrated PLL

Link Layer Features – Frame formation/decomposition, host/device flow control, primitive handling (ALIGN, DMAT, EOF, SYNC, etc.), scrambling/descrambling, and CRC generation/checking

Transport Layer Features – 32-bit AXI stream interface, FIS construction/decomposition, error reporting, and flow control notifications

FIS Support – Register FIS, DMA Activate/Setup FIS, Data FIS, PIO Setup FIS, and Set Device Bits FIS
